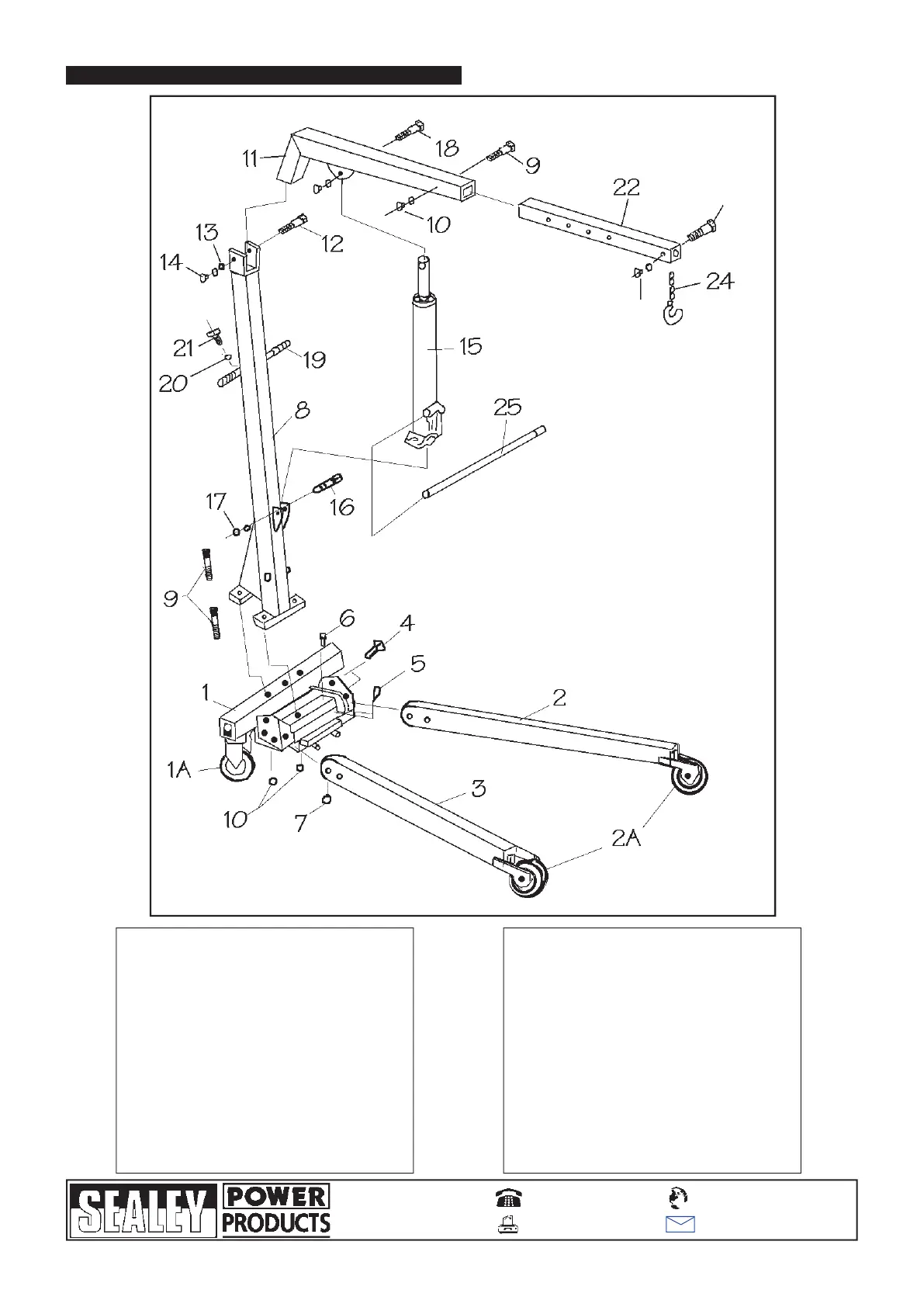

Sealey SC10.V2 - Parts List;Diagram

Item Part No. Description Qty
1 NC10/01 Frame Base (Red) 1
1A NC10/01A Castor Wheel 2
2 NC10/02 Leg, Left (Red) 1
2A NC10/02A Front Wheel Assy. 2
3 NC10/03 Leg, Right (Red) 1
4 NC10/04 Pin, Lock 4
5 NC10/05 Pin, Hair 4
6 NC10/06 Bolt, M6 1
7 NC10/07 Nut, M6 1
8 NC10/08 Post, Main Support (Red) 1
9 NC10/09 Bolt 6
10 NC10/10 Nut & Washer M14 7
11 NC10/11 Jib, Main (Red) 1
12 NC10/12 Bolt, M15 1
Item Part No. Description Qty
13 NC10/13 Washer 1
14 NC10/14 Nut, M18 1
15 NC10/15 Hydraulic Unit 1
16 NC10/16 Bolt, M16 1
17 NC10/17 Nut & Washer, M16 2
18 NC10/18 Bolt 1
19 NC10/19 Handle 1
20 NC10/20 Washer 1
21 NC10/21 Bolt, M5 4
22 NC10/22 Extension Jib 1
23 NC10/23 Bolt, M14 1
24 NC10/24 Hook & Chain Assy 1
25 NC10/25 Handle, Pumping 1
PAGE 5
01284 757500
01284 703534
sales@sealey.co.uk
Sole UK Distributor
Sealey Group,
Bury St. Edmunds, Suffolk.
www.sealey.co.uk
Web
email
8. PARTS LIST/DIAGRAM
Original Date:- 161100
Version:- 1
Date Modified:- 1st issue
23
MODEL: SC10.V2
