8.2. The stabiliser clamps must abut against the rung concerned.

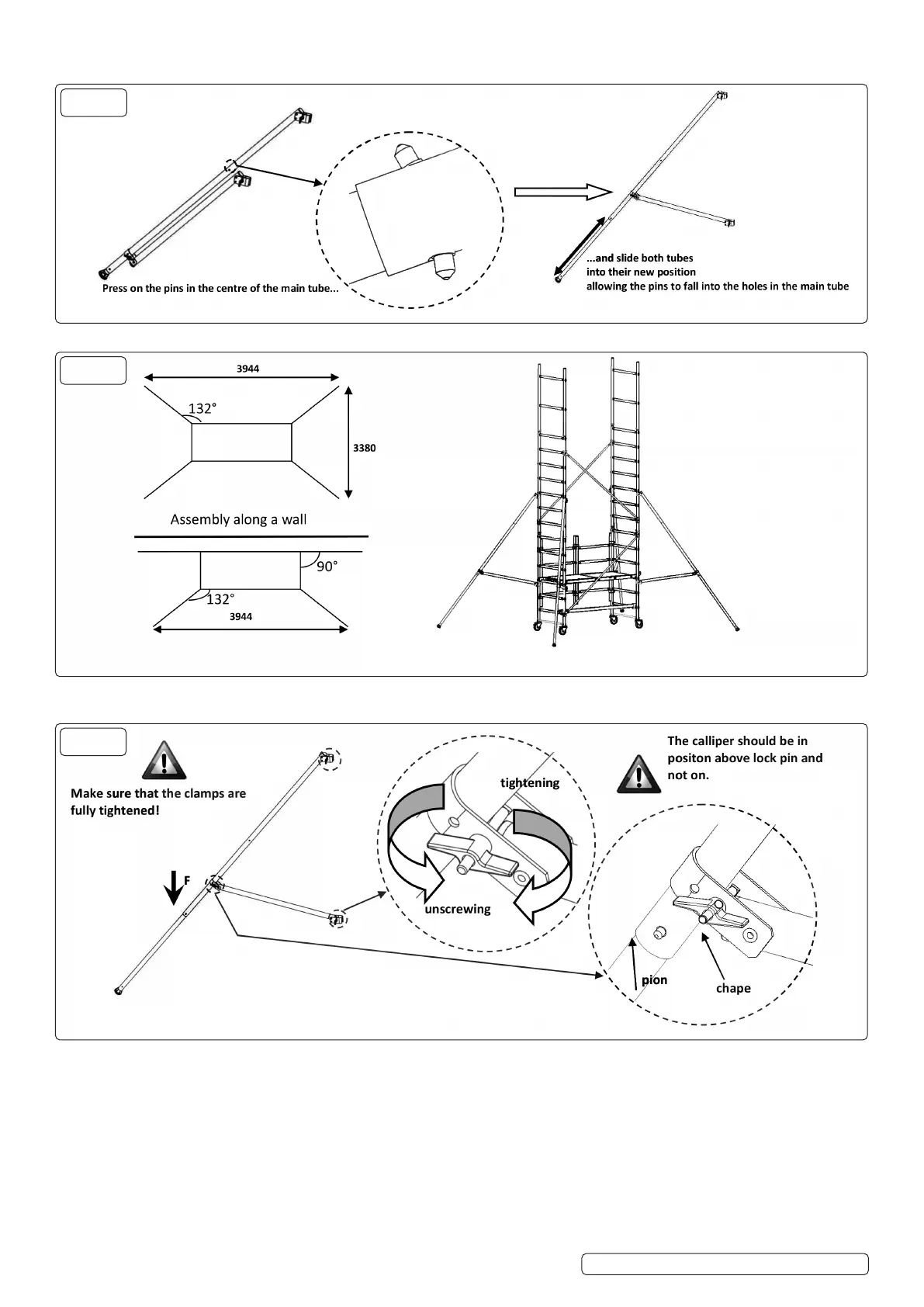

8.3. These stabilisers are extendible (g.18):
8.4. Assemble the stabilisers on the uprights of the scaolding observing the values and quantities in the diagram below (g.19):
8.5. To tighten the stabilisers, unscrew the wing nut at the intersection between the two stabiliser sections and gently press the calliper to
slide it downwards before tightening the nut again (g.20).
g.18
g.19
g.20
Original Language Version
© Jack Sealey Limited
SSCL1.V2, SSCL3, SSCL4 Issue:4 28/06/21
