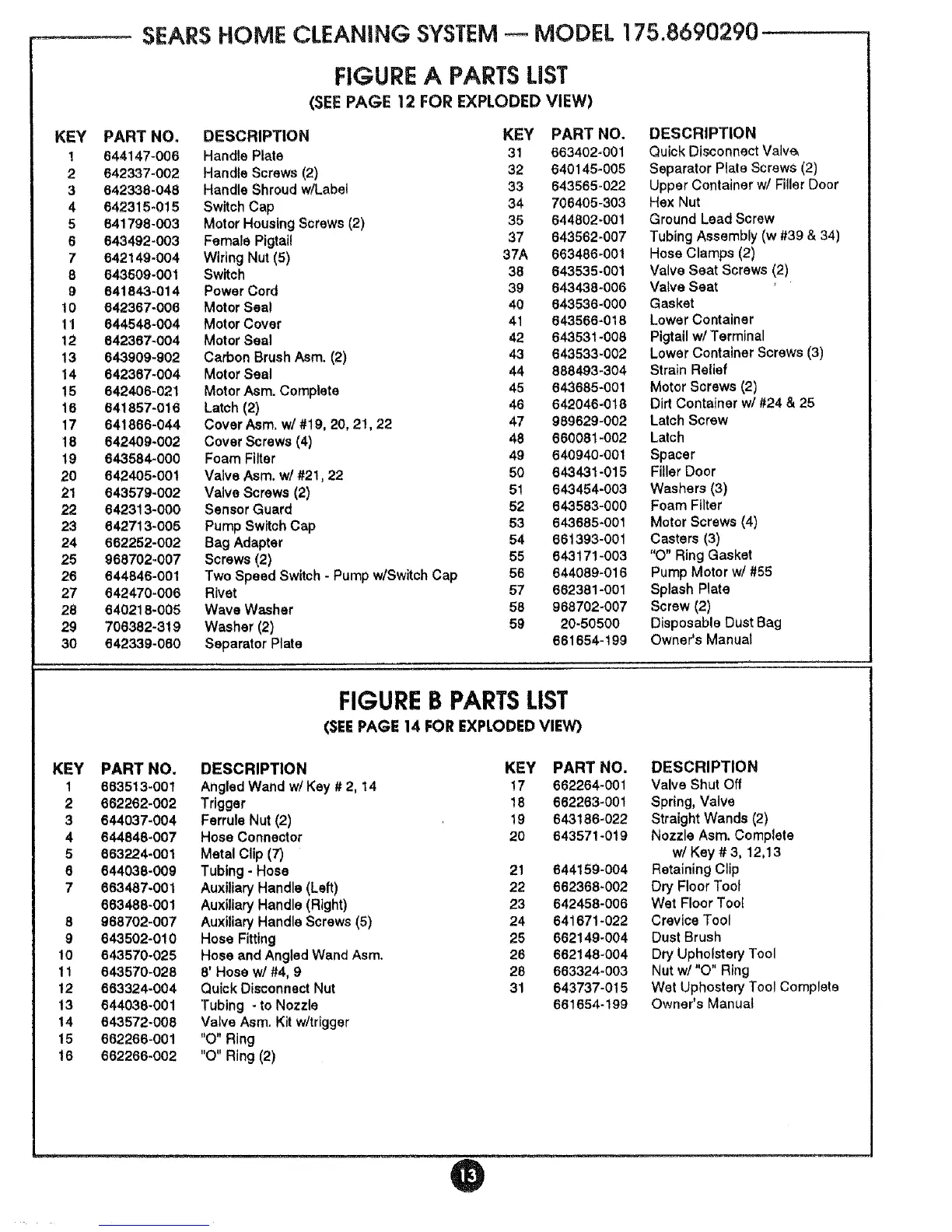

SEARS HOME CLEANING SYSTEM -- MODEL 175.8690290
FIGURE A PARTSLiST
(SEE PAGE 12 FOR EXPLODED VIEW)
KEY PART NO, DESCRIPTION KEY PART NO. DESCRIPTION
1 644147-006 Handle Plate 31 663402o001 Quick Disconnect Valve_
2 642337-002 Handle Screws (2) 32 640145-005 Separator Plate Screws (2)
3 542338-048 Handle Shroud w/Label 33 643565-022 Upper Container w/Filler Door
4 542315-015 Switch Cap 34 706405-303 Hex Nut
5 641798-003 Motor Housing Screws (2) 35 644802-001 Ground Lead Screw
6 643492-003 Female Pigtail 37 643562-007 Tubing Assembly (w #39 & 34)
7 642149-004 Wiring Nut (5) 37A 663486_001 Hose Clamps (2)
8 643609-001 Switch 38 643535-001 Valve Seat Screws (2)
9 641843-014 Power Cord 39 643438_006 Valve Seat
10 642367-006 Motor Seal 40 643536-000 Gasket
11 644548-004 Motor Cover 41 543566-018 Lower Container
12 842367-004 Motor Seal 42 643531-008 Pigtail w/Terminal
13 643909-902 Carbon Brush Asm. (2) 43 643533-002 Lower Container Screws (3)
14 642367-004 Motor Seal 44 888493-304 Strain Relief
!5 642406-021 Motor Asm. Complete 45 643685-001 Motor Screws (2)
16 641857-016 Latch (2) 46 642046-018 Dirt Container w/#24 & 25
17 641866-044 Cover Asm. w/#19, 20, 21, 22 47 989629-002 Latch Screw
18 642409-002 Cover Screws (4) 48 660081-002 Latch
19 643584-000 Foam Filter 49 640940-001 Spacer
20 642405-001 Valve Asm. w/#21,22 50 643431-015 Filler Door
21 643579-002 Valve Screws (2) 51 643454-003 Washers (3)
22 642313-000 Sensor Guard 52 643583-000 Foam Filter
23 642713-005 Pump Switch Cap 53 643685-001 Motor Screws (4)
24 662252-002 Bag Adapter 54 661393-001 Casters (3)
25 968702-007 Screws (2) 55 643171-003 "0" Ring Gasket
26 644845-001 Two Speed Switch - Pump w/Switch Cap 56 644089-016 Pump Motor w/#55
27 642470-006 Rivet 57 662381-001 Splash Plate
28 640218-005 Wave Washer 58 968702-007 Screw (2)
29 706382-319 Washer (2) 59 20-50500 Disposable Dust Bag
30 642339-060 Separator Plate 661654-199 Owner's Manual
FIGUREB PARTSLIST
(SEEPAGE 14 FOR EXPLODEDVIEW)
KEY PART NO, DESCRIPTION KEY PART NO. DESCRIPTION
1 663513-001 Angled Wand w/Key # 2, 14 17 662264-001 Valve Shut Off
2 662262-002 Trigger 18 662263-001 Spring, Valve
3 644037-004 Ferrule Nut (2) 19 643186-022 Straight Wands (2)
4 644848-007 Hose Connector 20 643571-019 Nozzle Asm. Complete
5 863224-001 Metal Clip (7) w/Key # 3, 12,13
6 644038-009 Tubing - Hose 21 644159-004 Retaining Clip
7 663487-001 Auxiliary Handle (Left) 22 662368-002 Dry Floor 1"ool
663488-001 Auxiliary Handle (Right) 23 642458-006 Wet Floor Toot
8 968702-007 Auxiliary Handle Screws (5) 24 641671-022 Crevice Tool
9 643502-010 Hose Fitting 25 662149-004 Dust Brush
10 643570-025 Hose and Angled Wand Asm. 26 662148-004 Dry Upholstery Tool
11 843570-028 8' Hose w/#4, 9 28 663324-003 Nut w/"O" Ring
12 663324-004 Quick Disconnect Nut 31 643737-015 Wet Uphostery Tool Complete
13 644038-001 Tubing -to Nozzle 661654-199 Owner's Manual
14 643572-008 Valve Asm. Kit w/trigger
15 662266-001 "O" Ring
16 662266-002 "O" Ring (2)
