Sears 397.1949 - Page 7

~

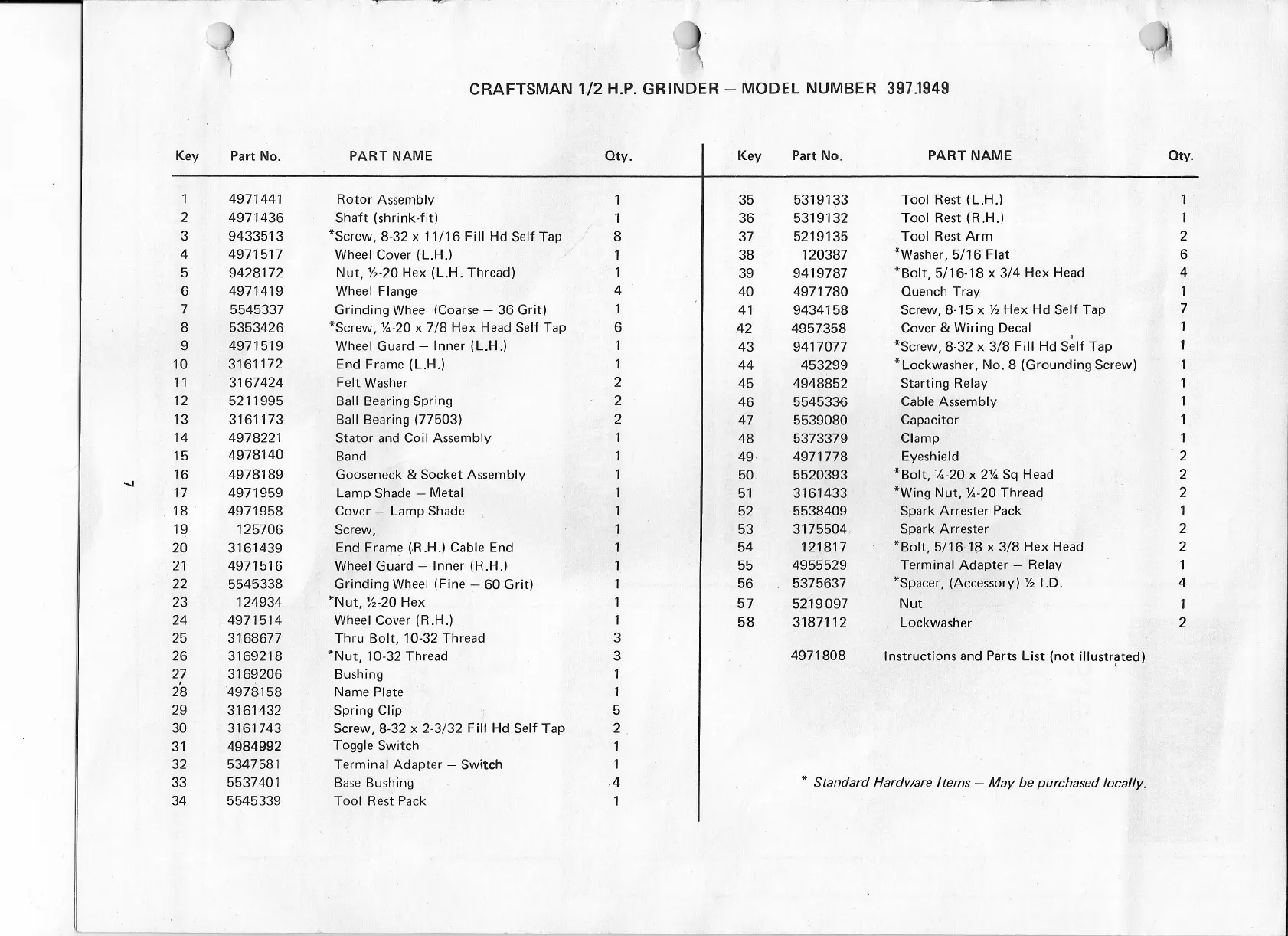

CRAFTSMAN 1/2 H.P. GRINDER - MODEL NUMBER 397.1949
Key
Part No. PART NAME Oty.
Key Part No. PART NAME
Oty.
1 4971441
Rotor Assembly
1 35
5319133
Tool Rest (L.H.) 1
2 4971436 Shaft [shrink-fit]
1 36
5319132
Tool Rest (R.H.)
1
3 9433513
"Screw, 8·32 x 11/16 Fill Hd Self Tap
8 37
5219135
Tool Rest Arm
2
4 4971517
Wheel Cover (L.H.)
1 38
120387
*Washer, 5/16 Flat 6
5 9428172
Nut, %·20 Hex (L.H. Thread)
1
39
9419787
*Bolt, 5/16·18 x 3/4 Hex Head
4
6
4971419 Wheel Flange
4
40
4971780
Ouench Tray 1
7
5545337 Grinding Wheel (Coarse - 36 Grit)
1
41 9434158
Screw, 8·15 x % Hex Hd Self Tap
7
8 5353426 "Screw, %·20 x 7/8 Hex Head Self Tap 6
42 4957358
Cover & Wiring Decal
1
9 4971519
Wheel Guard - Inner (L.H.)
1
43 9417077
"Screw, 8·32 x 3/8 Fill Hd S~lf Tap
1
10
3161172 End Frame (L.H.) 1
44 453299
"Lockwasher , No.8 (Grounding Screw) 1
11
3167424
Felt Washer 2
45 4948852
Starting Relay 1
12 5211995 Ball Bearing Spring 2
46
5545336
Cable Assembly
1
13
3161173
Ball Bearing (77503) 2
47 5539080
Capacitor
1
14 4978221 Stator and Coil Assembly 1
48 5373379
Clamp 1
15
4978140
Band 1
49,
4971778
Eyeshield 2
16 4978189
Gooseneck & Socket Assembly 1
50. 5520393
* Bolt, %·20 x 2% Sq Head 2
-...J
*Wing Nut, %·20 Thread17 4971959 Lamp Shade - Metal 1
51 3161433
2
18 4971958
Cover - Lamp Shade
1 52 5538409
Spark Arrester Pack 1
19
125706 Screw,
1 53
3175504,
Spark Arrester 2
20 3161439
End Frame (H.H.) Cable End
1
54 121817
*Bolt, 5/16-18 x 3/8 Hex Head
2
21 4971516 Wheel Guard - Inner (R.H.) 1
55
4955529
Terminal Adapter - Relay
1
22 5545338 Grinding Wheel (Fine - 60 Grit) 1
56 5375637
"Spacer, (Accessory) % 1.0. 4
23 124934 *Nut, Y2-20 Hex 1
57 5219097 Nut
1
24 4971514 Wheel Cover (R.H.) 1
58 3187112
, Lockwasher
2
25 3168677
Thru Bolt, 10-32 Thread 3
26 3169218 *Nut, 10-32 Thread 3
4971808
Instructions and Parts List (not illustrated)
\
27
3169206
Bushing
1
,
28 4978158
Name Plate
1
29 3161432 Spring Clip 5
30 3161743 Screw, 8-32 x 2-3/32 Fill Hd Self Tap 2
31 4984992
Toggle Switch
1
32
5347581 Terminal Adapter - Switch 1
33
5537401
Base Bushing
4
I
* Standard Hardware Items - Mav be purchased locstty,
34 5545339 Tool Rest Pack
1
