REPAIR PARTS
TRACTOR - - MODEL NUMBER 944.600051

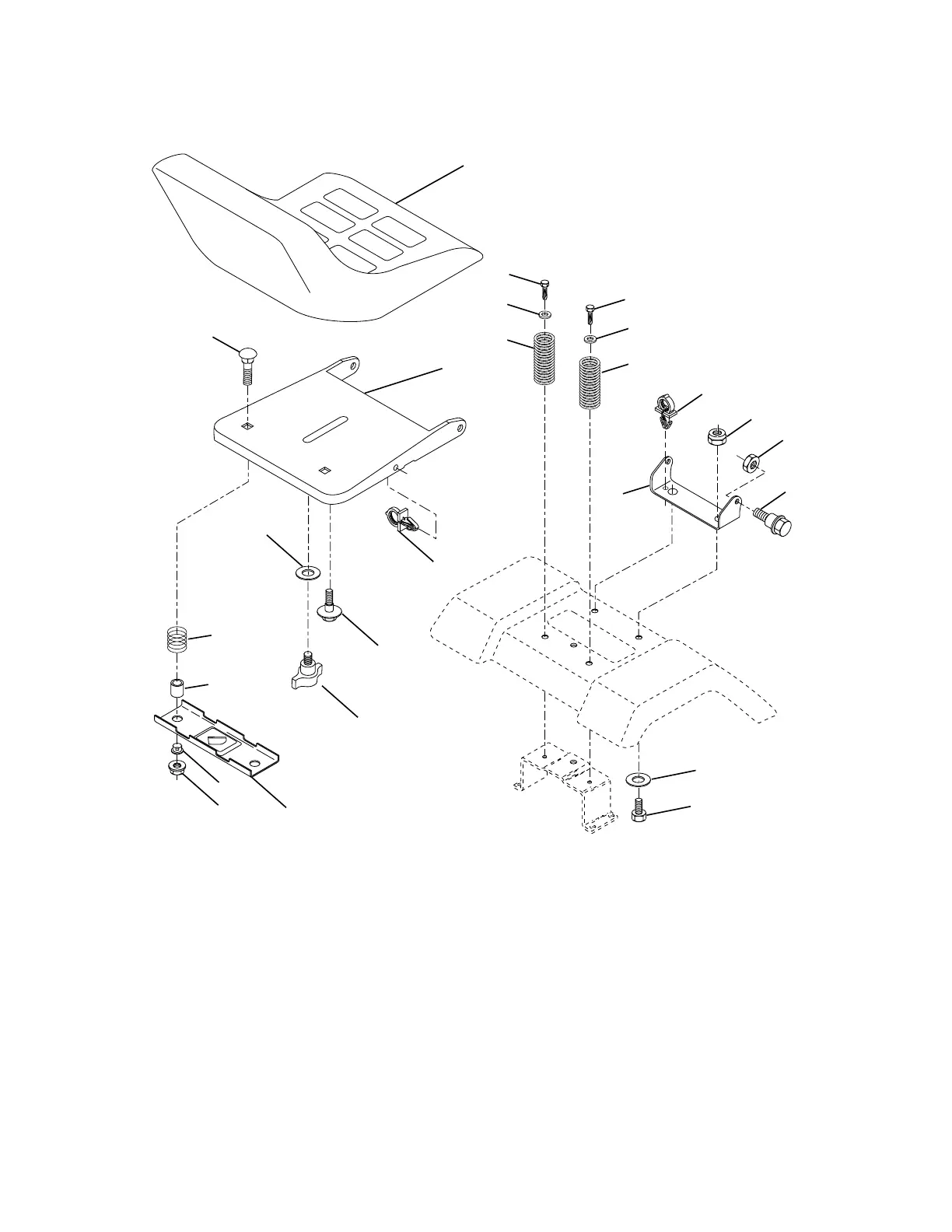

SEAT ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 140122 Seat
2 140551 Bracket Pivot Seat 8 720
3 71110616 Bolt Fin Hex 3/8-16unc X 1
4 19131610 Washer 13/32 X 1 X 10 Ga
5 145006 Clip Push-In
6 STD541437 Nut Hex w/Ins. 3/8-16 Unc
7 124181X Spring Seat Cprsn 2 250 Blk Zi
8 17000616 Screw 3/8-16 x 1
9 19131614 Washer 13/32 X 1 X 14 Ga.
10 155925 Pan Seat
11 166369 Knob Seat
12 121246X Bracket Mounting Switch
KEY PART
NO. NO. DESCRIPTION
13 121248X Bushing Snap Blk Nyl 50 Id
14 72050412 Bolt Rdhd Sqnk 1/4-20x1-1/2
15 134300 Spacer Split 28x 96 Yel Zinc
16 121250X Spring Cprsn 1 27 Blk Pnt
17 123976X Nut Lock 1/4 Lge Flg Gr 5 Zinc
21 171852 Bolt Shoulder 5/16-18 Unc
22 STD541431 Nut Hex Lock W/Ins 5/16-18
24 19171912 Washer 17/32 X 1-3/16 X 12 Ga.
25 127018X Bolt Shoulder 5/16-18 X 62
1
24
16
15
12
13
17
25
4
3
8
9
7
8
9
7
11
2
6
22
21
5
10
5
14
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
