Sears EZ3 - Wheels and Tires

37
REPAIR PARTS
TRACTOR - - MODEL NUMBER 944.600051
DECALS
10
43
9
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 106222X Tire F Ts 15 X 6 0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X427 Rim Asm 6"front Service
6 278H Fitting Grease (Front Wheel Only)
7 9040H Bearing Flange (Front Wheel Only)
8 106108X427 Rim Asm 8"rear Service
9 106268X Tire R Ts 18 x 9.5-8 C Service
10 7152J Tube Rear (Service Item Only)
11 104757X Cap Axle Blk 1 50 X 1 00
- - 144334 Sealant, Tire ( 10 oz. Tube)
12
8
20
14
7
1 156369 Decal Fend STLT Oper
2 163207 Decal Fender S.D.W.H.T. Rad.
3 171696 Decal Hood RH
4 171697 Decal Hood LH
6 146046 Decal V Belt Drive Sch
7 163252 Decal Dash Pnl
8 137259 Decal Warning Mult-Language
9 163204 Decal Craftsman
10 157140 Decal Fender Danger Eng/Fr
KEY PART
NO. NO. DESCRIPTION
1
6
2
1
5,8
4,10
3,9
11
7

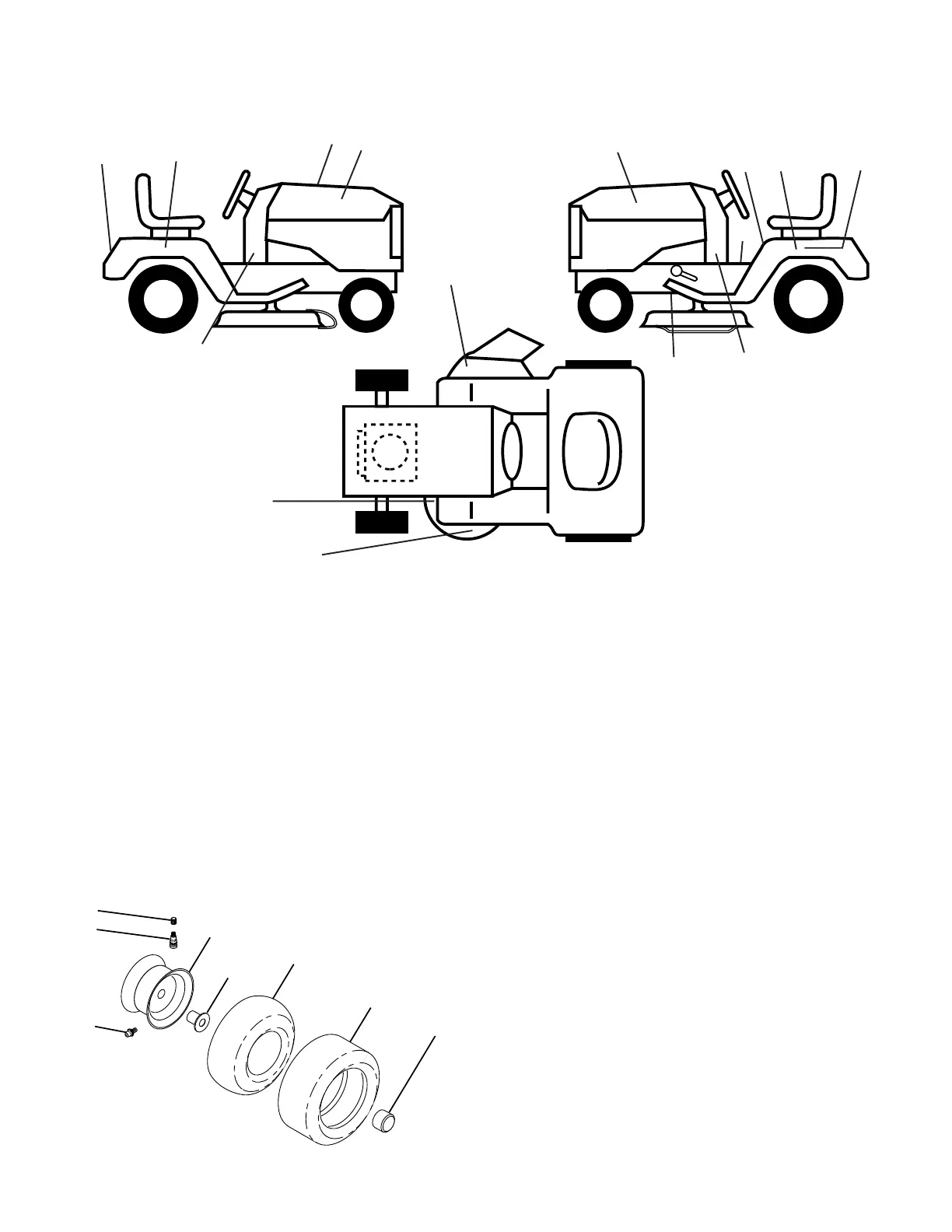

WHEELS & TIRES
12 166887 Decal Mower EZ3
14 160396 Decal V-Belt Schematic
20 149517 Decal Bat Dan/Psn
30 172265 Decal Replacement parts
- - 165800 Pad Footrest LH STLT
- - 165799 Pad Footrest RH STLT
- - 138311 Decal Handle Lft Height Adjust
- - 174113 Manual Owner's (English)
- - 174114 Manual Owner's (French)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
2
7
30
