Sears SS/16 - instructions before operating

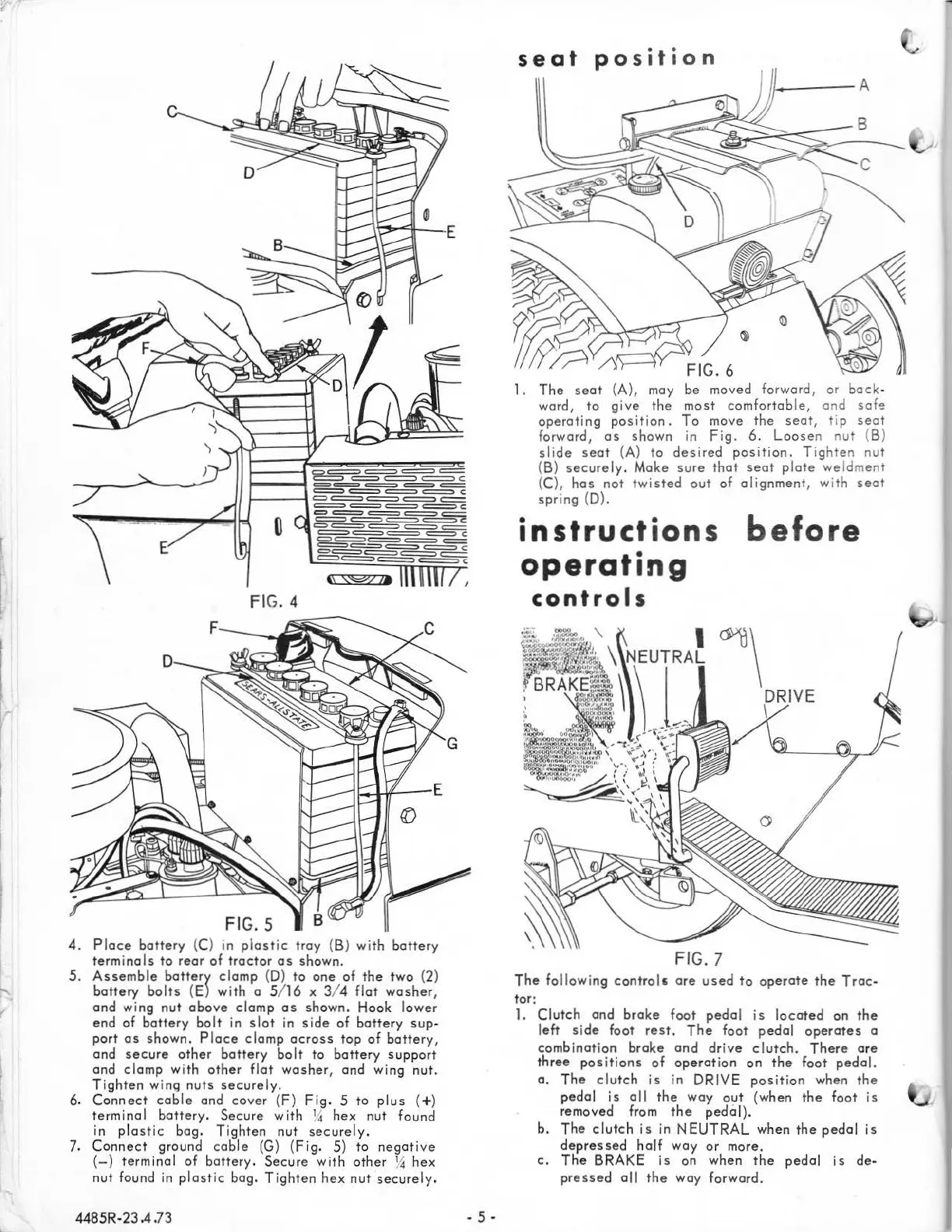

FIG. 4
FIG. 5
4. Place battery (C) in piast ic tray (B) with battery
terminals to rear of tractor as shown.
5. Assemble battery clamp (D) to one of the two (2)
battery bolts (E) with a 5/ 16 x 3/ 4 flat washer,
and wing nut above clamp as shown. Hook lower
end of battery bolt in slot in side of battery sup-
port as shown. P lace clamp across top of battery,
and secure other battery bolt to battery support
and clamp with other flat washer, and wing nut .
Tighten wing nuts securely.
6. Connect cable and cover (F) Fig . 5 to plus ( +)
term
ina I battery. Secure with !t4 hex nut found
in
plast ic bag. Tighten nut securely.
7. Connect ground ca ble (G) (Fig. 5) to nega tive
(-) terminal of battery. Secure with other !t4 hex
nut found in plasti c bag. Tighten hex nut securely.
4485R-23 .4 .73
- 5 -
seat pos ition
1. The seat (A), may be moved forwar d, or ba ck-
ward, to give the most comfortab le, and safe
operating position. To move the sea t, ti p seat
forward, as shown in Fig. 6 . Loose n nut (B)
slide seat (A) to desired position. Tighte n nut
(B)
securely. Make sure that seat plate we ldme nt
(
C), has not twisted out of alignment , with seat
spring (D).
instructions
operating
controls
FIG. 7
before
The following controls are used to operate the Trac-
tor:
l. Clutch and broke foot pedal is locat ed on the
left side foot rest. The foot pedal operates a
combination brake and drive clutch. There ore
three positions of operation on the foot pedal.
a. The clutch is in DRIVE position when the
pedal is all the way out (when the foot is
removed from the pedal).
b. The clutch is in NEUTRAL when the pedal is
depressed half way or more.
c. The BRAKE is on when the pedal is de-
pressed all the way forward.
