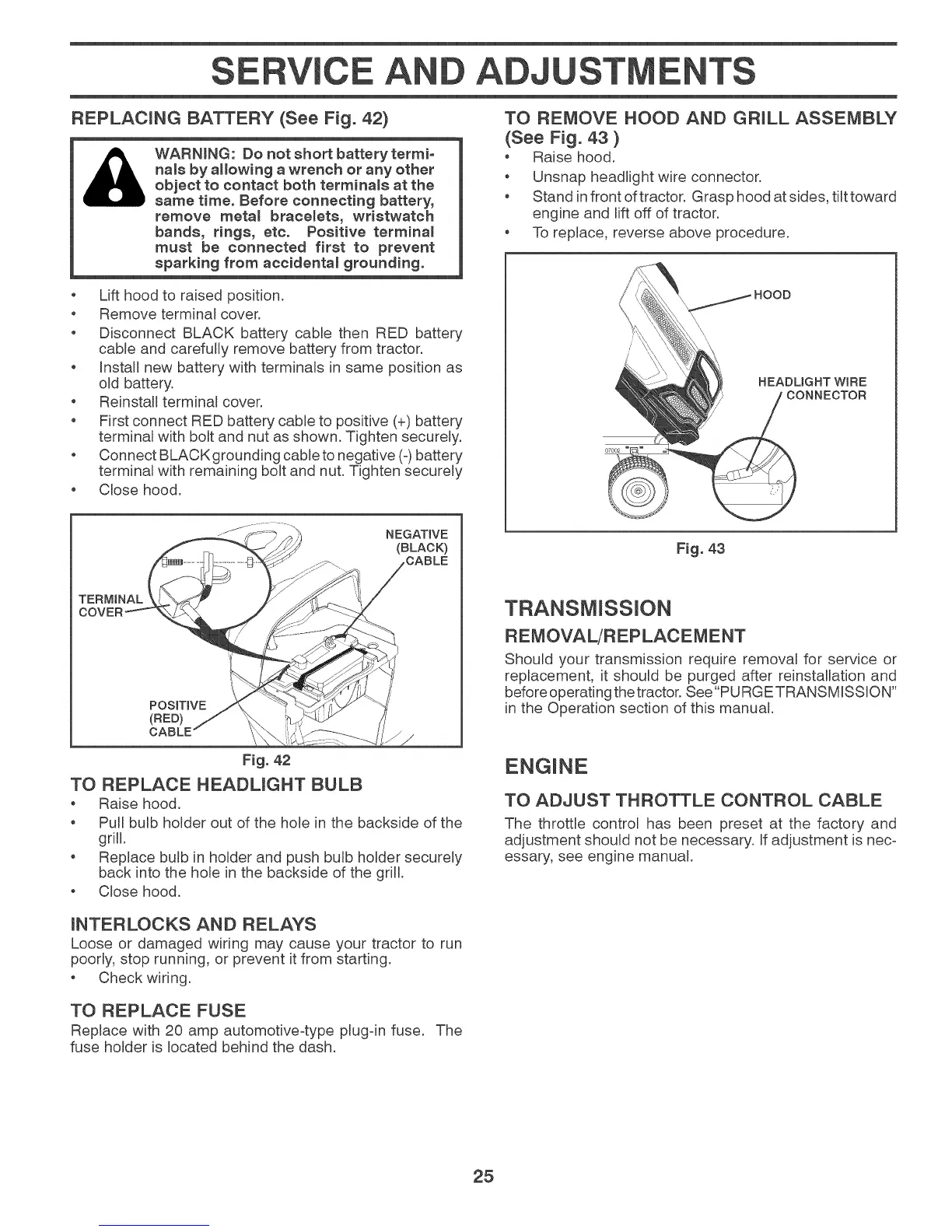

REPLACING BATTERY (See Fig. 42)
& WARNING: Do notshort batterytermio
rials by allowing a wrench or any other
object to contact both terminals at the
same time. Before connecting battery,
remove metam bracelets, wristwatch
bands, rings, etc. Positive terminal
must be connected first to prevent
sparking from accidenta_ grounding.
* Lift hood to raised position.
* Remove terminal cover.
* Disconnect BLACK battery cable then RED battery
cable and carefully remove battery from tractor.
* Install new battery with terminals in same position as
old battery.
* Reinstall terminaJ cover.
* First connect RED battery cable to positive (+) battery
terminaJ with bolt and nut as shown. Tighten securely.
* Connect BLACK grounding cable to negative (-) battery
terminal with remaining bolt and nut. Tighten securely
o Close hood.
NEGATIVE
(BLACK)
TERMINAL
POSiTiVE
(RED)
CABLE
TO REMOVE HOOD AND GRILL ASSEMBLY
(See Fig. 43 )
* Raise hood.
* Unsnap headlight wire connector.
* Stand in front of tractor. Grasp hood at sides, tilt toward
engine and lift off of tractor.
* To replace, reverse above procedure.
\
HEADUGHT W_RE
CONNECTOR
Fig. 43
TRANSMISSION
REMOVAL/REPLACEMENT
Should your transmission require removal for service or
replacement, it should be purged after reinstallation and
before operating the tractor. See"PU RGETRANSMISSION"
in the Operation section of this manual.
Fig. 42
TO REPLACE HEADUGHT BULB
o Raise hood.
* Pull bulb holder out of the hole in the backside of the
grill.
* Replace bulb in holder and push bulb holder securely
back into the hole in the backside of the grill.
o Close hood.
TO ADJUST THROTTLE CONTROL CABLE
The throttle control has been preset at the factory and
adjustment should not be necessary. If adjustment is nec-
essary, see engine manual.
INTERLOCKS AND RELAYS
Loose or damaged wiring may cause your tractor to run
poorly, stop running, or prevent it from starting.
o Check wiring.
TO REPLACE FUSE
Replace with 20 amp automotive-type plug-in fuse. The
fuse holder is located behind the dash.
25
