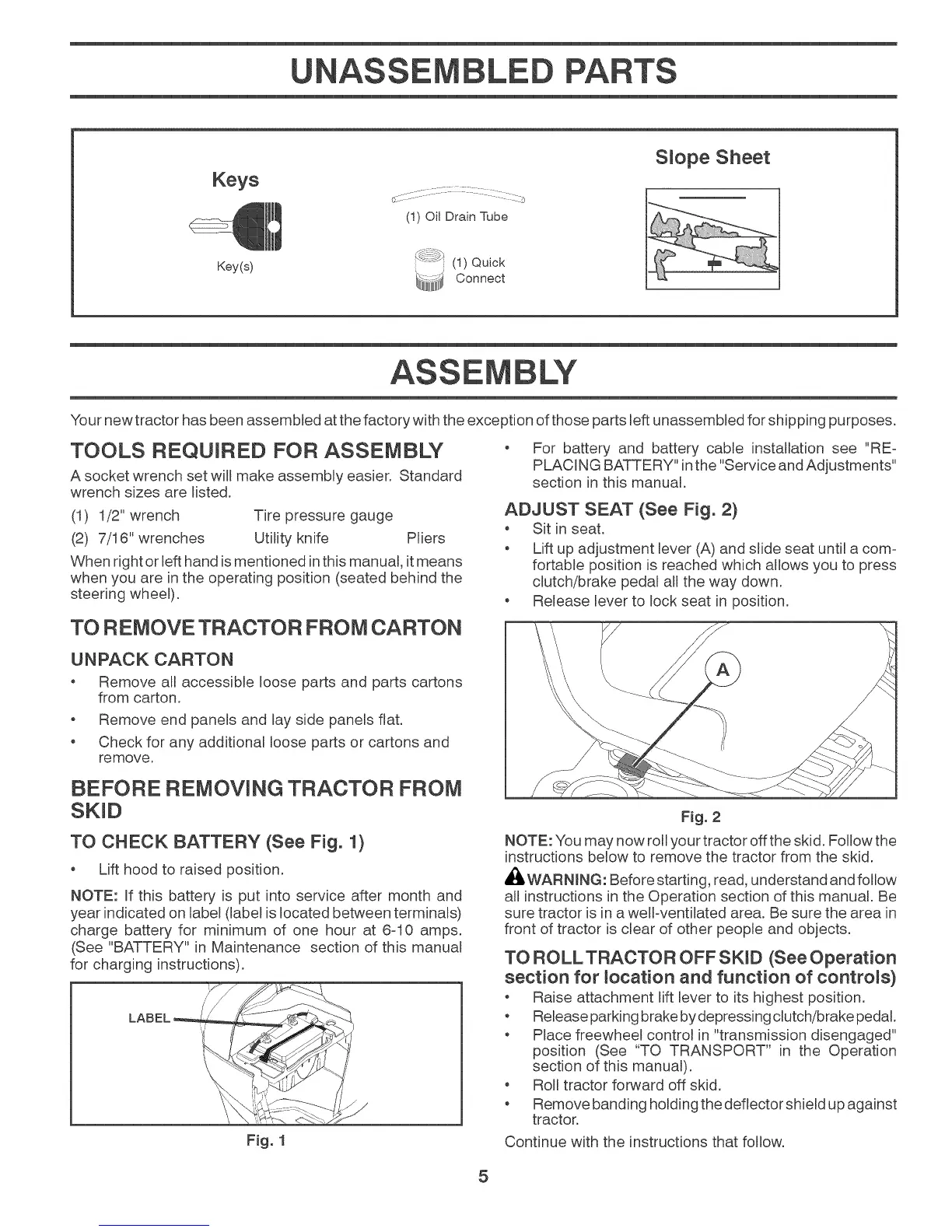

Sears YTH24V48 - ASSEMBLY; TOOLS REQUIRED FOR ASSEMBLY; TO REMOVE TRACTOR FROM CARTON; BEFORE REMOVING TRACTOR FROM SKID

UNASSEMBLED
Keys
Key(s)
(1) Oil Drain Tube
.... (1) Quick
il_gill]ilj Connect
Smope Sheet
ASSEMBLY
Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes.
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set will make assembly easier. Standard
wrench sizes are listed.
(1) 1/2" wrench Tire pressure gauge
(2) 7/16" wrenches Utility knife Pliers
When right or left hand is mentioned in this manual, itmeans
when you are in the operating position (seated behind the
steering wheel).
TO REMOVE TRACTOR FROM CARTON
UNPACK CARTON
Remove all accessible loose parts and parts cartons
from carton.
Remove end panels and lay side panels flat.
Check for any additional loose parts or cartons and
remove.
BEFORE REMOVING TRACTOR FROM
For battery and battery cable installation see "RE-
PLACING BATTERY" inthe "Service and Adjustments"
section in this manual.
ADJUST SEAT (See Fig. 2)
Sit in seat.
o Lift up adjustment lever (A) and slide seat until a com-
fortable position is reached which allows you to press
clutch/brake pedal all the way down.
Release lever to lock seat in position.
TO CHECK BATTERY (See Fig. 1)
o Lift hood to raised position.
NOTE: If this battery is put into service after month and
year indicated on label (label is located between terminals)
charge battery for minimum of one hour at 6-10 amps.
(See "BATTERY" in Maintenance section of this manual
for charging instructions).
LABEL
Fig. 1
Fig. 2
NOTE: You may now roll your tractor off the skid. Follow the
instructions bemowto remove the tractor from the skid.
_I_,WARN_NG: Before starting, read, understand and follow
all instructions in the Operation section of this manual. Be
sure tractor is in a weIFventilated area. Be sure the area in
front of tractor is clear of other people and objects.
TO ROLLTRACTOR OFF SKiD (See Operation
section for _ocation and function of controls)
o Raise attachment lift lever to its highest position.
o Release parking brake bydepressing clutch!brake pedal.
o Place freewheel control in "transmission disengaged"
position (See "TO TRANSPORT" in the Operation
section of this manual).
o Roll tractor forward off skid.
o Remove banding holding the deflector shield up against
tractor.
Continue with the instructions that follow.
5
