ESSENTIAL G1 AND G2 SCHEMATIC AND PARTS LIST
12
#
9591AT G1 and #9592AT G2
T
eal/Light Gray Machines
Pos. Part # Description
1 5
624AT Handle with cable, teal, complete
2
5296ES
H
andle grip (incl. pos. 3, 7 & 10)
3 5359HG Grommet
4
5
450DG
Power supply cord
5 05113 Switch, cpl.
6
5
160TK Switch cap - teal
7 5161HG S
witch cap holder- light gray
8 5162 Cable clamp
9
0103 Screw C 3,9 x 16
10 5253UL Antistatic-wire, cpl.
11 5298ER Handle cable
12 0129 Screw, M4 x 12
13 5187 Handle tube
14 0102 Screw F 3.9 x 13
15
5
040SB Hose - silver, complete
1
6 5045HG Extension tube
17 5803HG Cover
1
8 5319 Bag holder spring
19
5706TK Cover release - teal
20 5324 Bag holder cpl. (incl. Pos. 20 + 21)
21 5360 Safety catch
22 5091 Safety catch spring
2
3
5
805TK Front cover, complete - gray/teal
24 5093AM Filter bag
2
5 5036AM Micro Hygiene Filter
26 5380HG Internal cover, compl.
(incl. Pos.43 + 44)
27 5164 Cable clamp
28 5208 Filter safety catch
29 5210 Return spring
30 1073 Clamp
31 5099 Handle lock plate
3
2 5098HG Lock catch
33 0187 Lock pin 4 x 33.5
34 5145HG Carrying handle
35 5146 Stop spring
36 5144HG Cable hook
37 5424DG Retaining ring
38 5280HG Dust bag housing
39 1823HG Attachment clip
40 5084 Spring for locking rod
41 5299ER Internal cable
42 5266 Cable clamp
43
5842 Seal
44
5289 Seal
45 5163 Seal
46 5085HG Dust bag housing bumper base
47 5082TK
Dust bag housing locking catch - teal
48 5083 Locking rod
49 5214AT
Dust bag housing - light gray/teal
50 1491JE Upholstery nozzle - light gray
51 1092JE Crevice nozzle - light gray
52 5460DG Mounting clip with screw - dark gray
53 1387DG Dusting brush
#9591AM G1; #9592AM G2
Light Gray/Dark Gray Machine Exceptions
1 5624AM Handle with cable, complete
6 5160DG Switch cap - dark gray
7 5161DG Switch cap holder - dark gray
16 5045DG Extension tube - dark gray
19 5706DG Cover release - dark gray
23 5805SE Front cover, cpl. - light gray/dark gray
47 5082DG Lock button - dark gray
49 5214HG Dust bag housing, complete -
light gray
50 1491DG Upholstery nozzle - dark gray
51 1092DG Crevice nozzle - dark gray

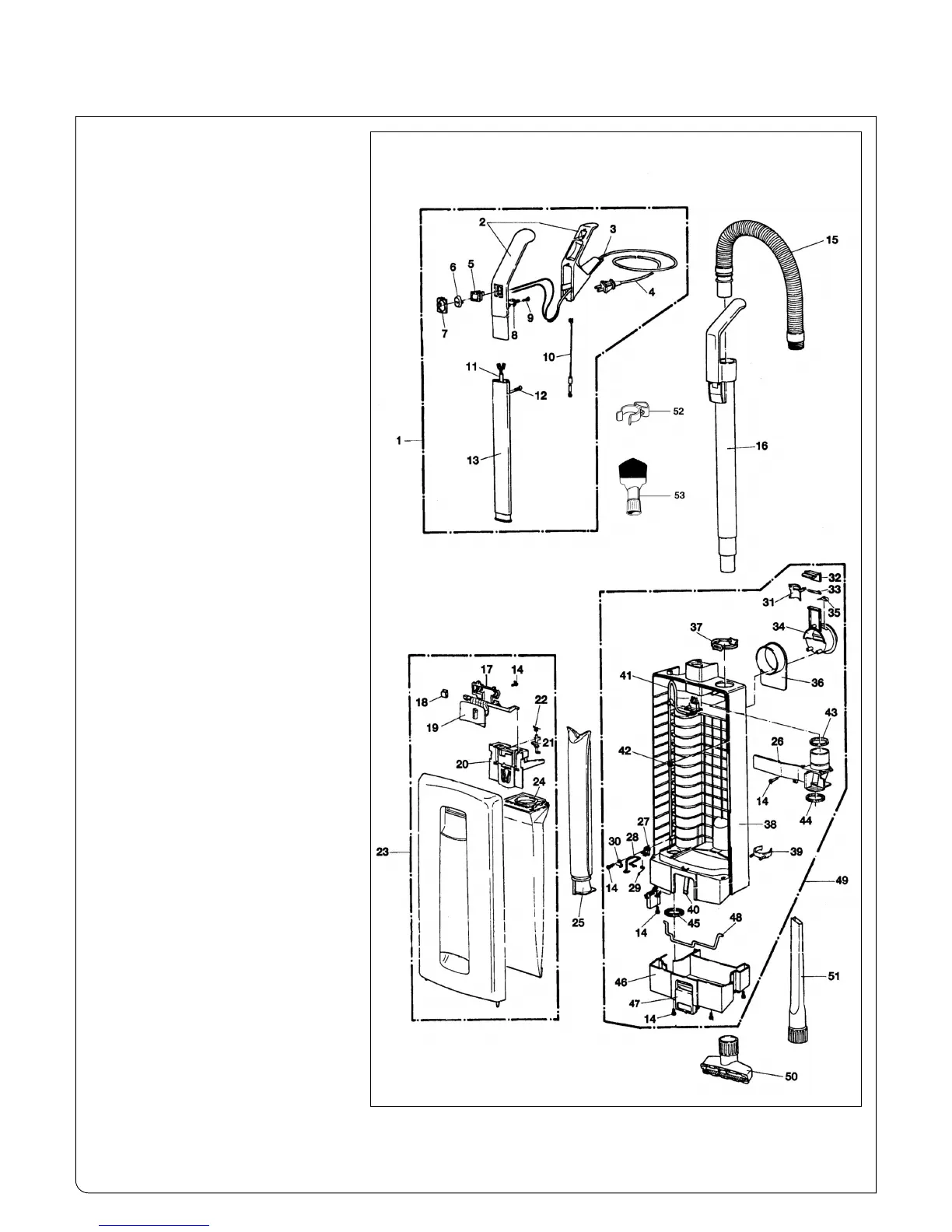

Filter Bag Housing and Handle
#9591AT G1 - Teal/Light Gray
#9591AM G1 - Light Gray/Dark Gray
#9592AT G2 - Teal/Light Gray
#9592AM G2 - Light Gray/Dark Gray
