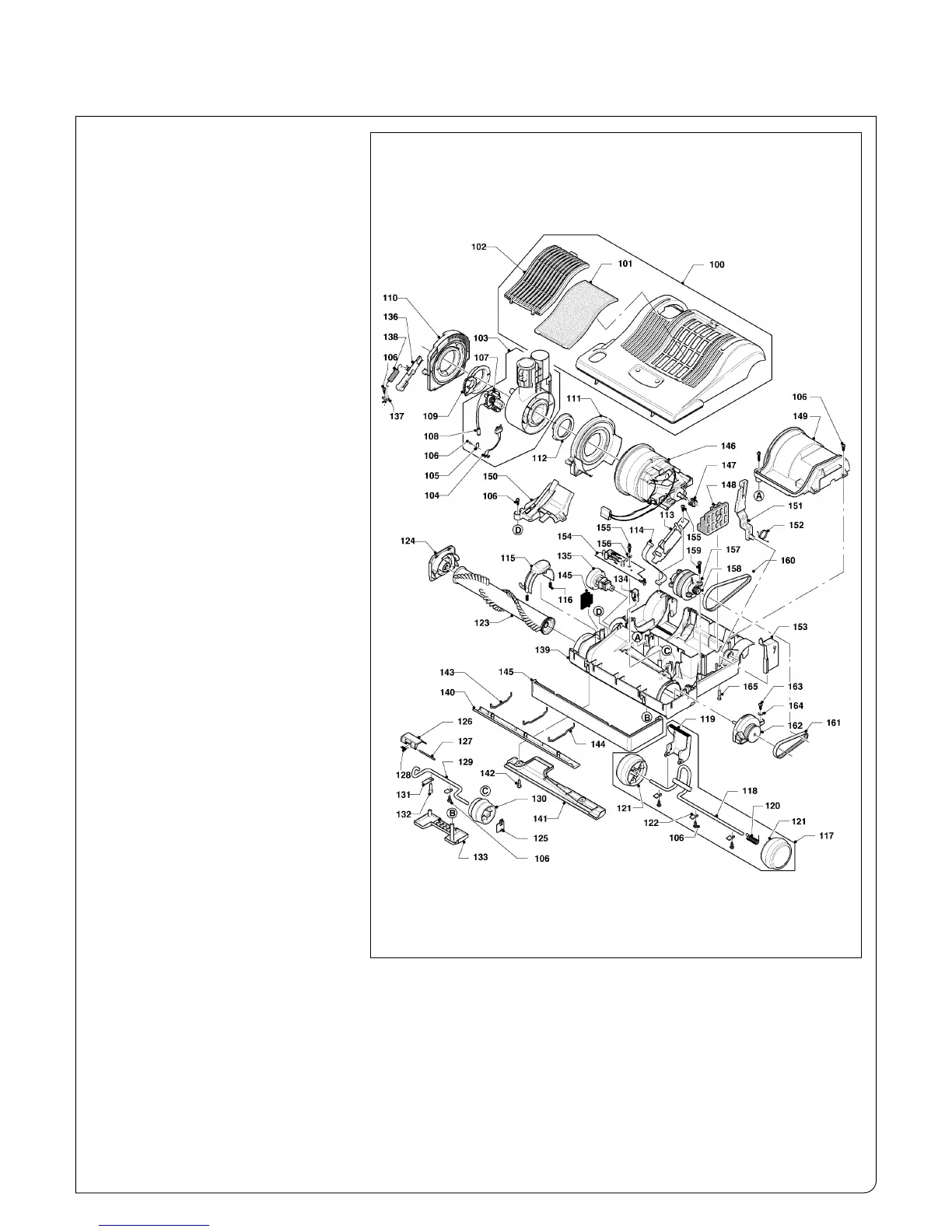

ESSENTIAL G1 SCHEMATIC AND PARTS LIST
9591AT G1 Teal/Light Gray Machine
P
os. Part # Description
100 2831AT Power head cover, complete - teal
1
01 2846 Exhaust filter
102 2820TK
Exhaust filter cover - teal
1
03 2823UL Swivel neck assembly
104 2883 Male contact holder
105 2494 Cable clamp
106 0102 Screw F 3.9 x 13
107 2835 Bypass valve
108 0869 Internal cable
109 2825 Swivel neck bearing r.h.
1
10 2824 Swivel neck support r.h.
111 5479 Swivel neck support l.h.
1
12 5717 Swivel neck bearing l.h.
113 2890ER PCB Power supply
114 0864 Internal cable
115 5713TK
B
rush roller release - teal
116 5103 Spring
117 5051HG Axle assembly
118 5053 Axle
1
19 5059OR
Foot pedal - orange
120 2010 Axle spring
121
5819HG Wheel, complete
122 2014 Axle clamp
123 5010AM Brush roller
124 5031TK
B
earing block, r.h. - teal/light gray
125 2869HG Rubbing plate
1
26 2868OR Access door
(
incl. Pos. 127 + 128)
127 5303 Access door axle
1
28 5304 Access door spring
129 2861 Pile adjustment axle
130 5174HG Pile adjustment wheel
131 2849 Axle clamp
132 01010 Screw AM4 x 16
133 2860HG Cover
134 2833 Thrust member
135 2862HG Pile adjustment knob
136 2834 Thrust member
137 2856 Clamp
138 2867 Spring
139 2821HG
Chassis, complete
140 5411HG Front bottom plate, complete
141 2829HG Rear bottom plate, complete
(incl. Pos. 142)
142 0197 Screw M4 x 12
143 5401 Wire tie
144 5402 Wire tie
145 5005HG Bumper, set
146 5468 Motor 1000W / 120V
05117S Carbon brush set
147 5462 Motor pulley 2MR
148 5100 Rubber mounting
149
2826TK Motor cover - teal
150 2839SW Cover for air channel
151 5129 Support lever
152 5107-1 Support spring
153 5112SW Motor pulley cover
154 2881ER Computer controller
155 0107 Screw C 2.9 x 13
156 0143 Washer 3.2 DIN 125
157 5464 Sensor
158 5117/1
Sensor pulley
159 0104 Screw C 3.9 x 25
160 5463 Belt 2MR-310-6
161 5110 Belt 219 3M HTDII-6
162 5766HG
Bearing block l.h., complete
163 0103 Screw C 3.9 x 16
164 0140 Washer 4.3
165 0176TL Screw AM4 x 30 DIN 7985 TL
#9591AM G1 Light Gray/Dark Gray Machine Exceptions
100 2831SE Power head cover, complete -
light gray/dark gray
102 2820DG Exhaust filter cover - dark gray
115 5713DG Brush roller release - dark gray
124 5031DG Bearing Block, right hand -
light gray/dark gray
149 2826 Motor cover
Power Head
#9591AT G1 - Teal/Light Gray
#9591AM G1 - Light Gray/Dark Gray
