SEC Electronics PKN10 V0.3 page 2
PKN10 Serial node with colour LCD display
Features
 5,7” colour LCD display with adjustable indication and background
colour.
 Car position and travel direction indication, time and date indication,
colour image can be used for background, when lift is idle images can
run in a slideshow, logo image can be shown all the time, when input1-
4 is active, an image can be show with a predefined image name.
 Voice announcer with microSD card.
 Additional relay output for emergency call disable, when doors are
open.
 Terminals for two pushbuttons with call indication, speaker output,
emergency light battery and four additional inputs.
 Connector for output direction indicators.
 Call button illumination.
 Customizable floor display tables.
 Serial communication compatible with all SEC controllers.

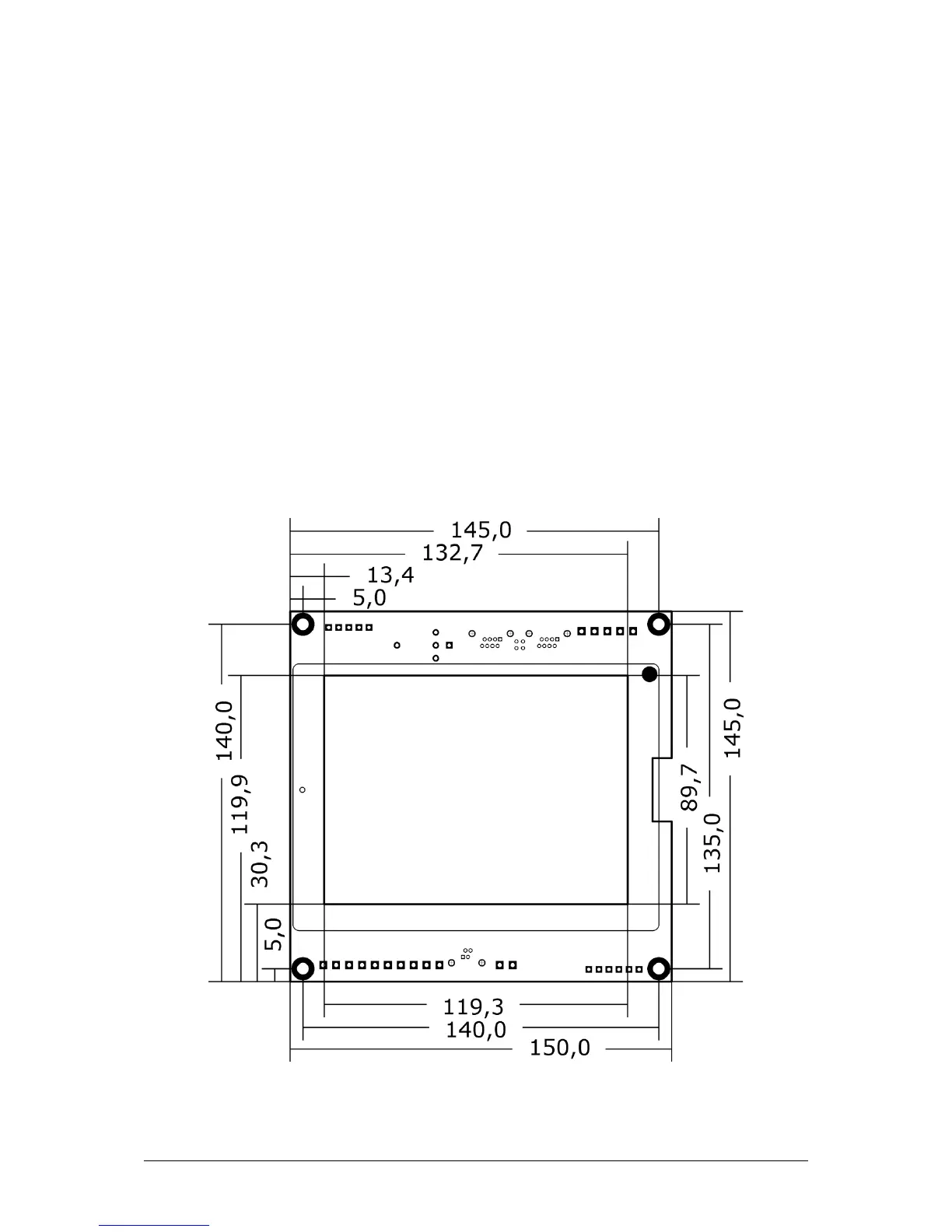

Figure 1: PKN10, simplified front view with dimensions (all in mm)
