SEC Electronics PKN10 V0.3 page 3
Technical specifications
 Unit size: 145 mm x 150 mm x 35 mm
 Display size: 115 mm x 82 mm
 Supply voltage: 24 V DC ±15%
 Supply current: max. 200 mA idle with backlight on, max. 350mA
when charging battery (unit only, without load on the outputs)
 Digital outputs: max. 100 mA each
 Audio output: 5 W max. into 4 ohm
 Ambient temperature: max. 45°C
 Degree of protection: IP00
 EMC: EN12015 in EN12016
 Approvals: CE

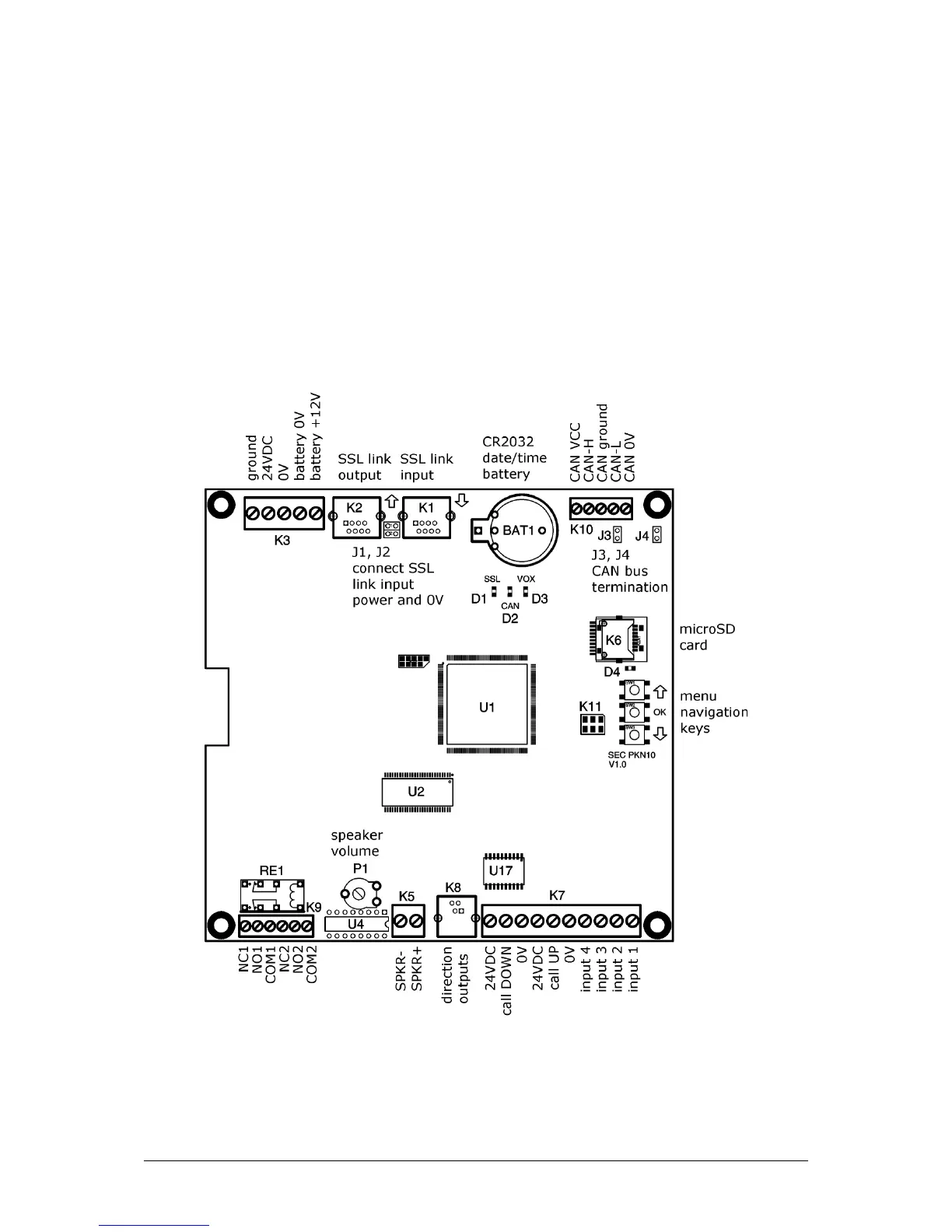

Figure 2: PKN10, rear view with connections
