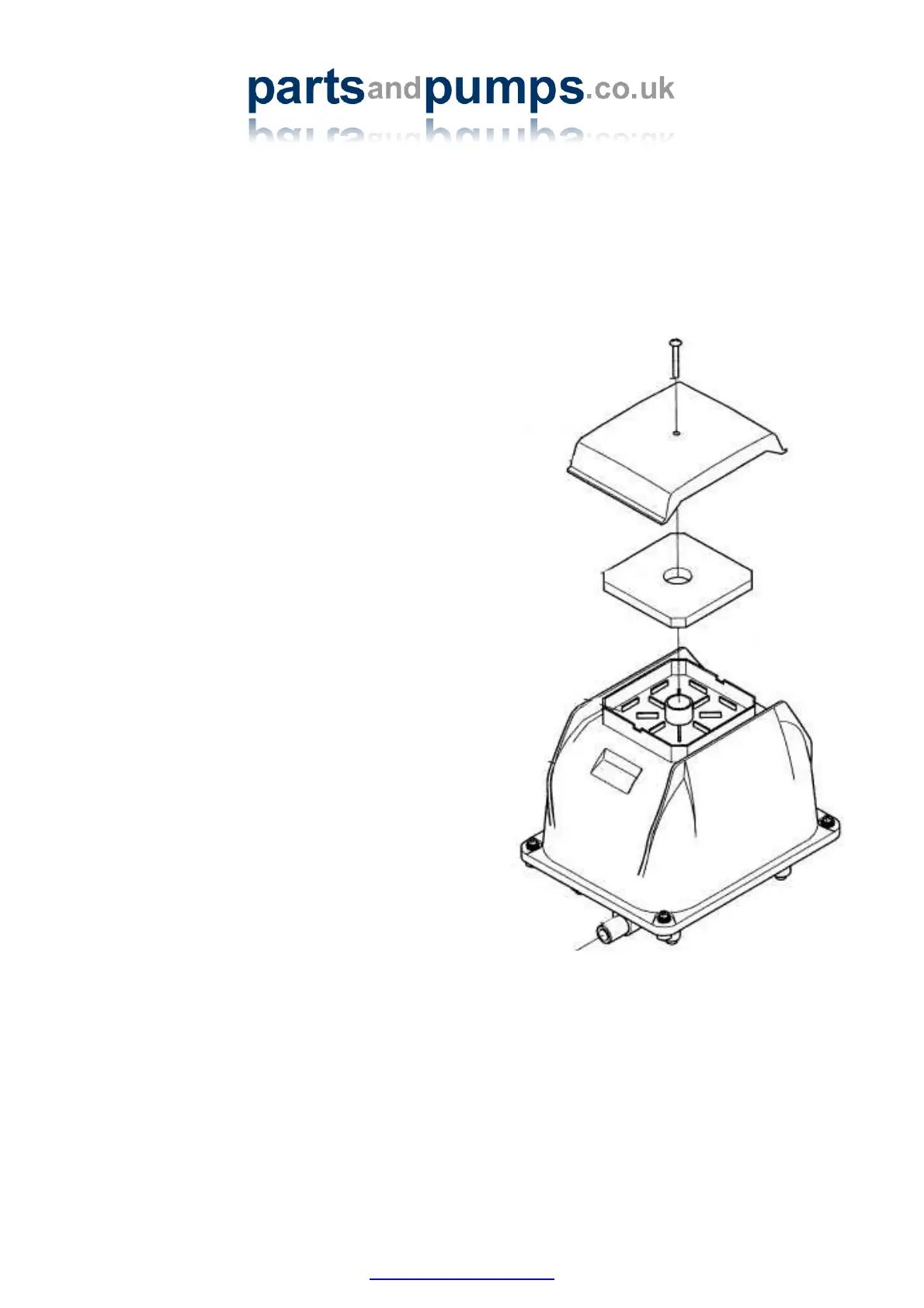

3. Filter element cleaning or replacement
a) Undo the truss head screw of the
filter cover.
b) Remove the filter cover, by firmly
pulling it off.
c) Remove the filter element and
brush off any dust particles by
hand.
If heavily clogged with dust, wash
in a neutral detergent followed by a
thorough rinsing in water. Allow to
dry in the shade.
Note: Do not use benzene or thinner to
clean filter element as it can be
damaged!
d) After cleaning reassemble the filter
element back in place. Make sure
to put the harder side of the filter
facing downwards. Press in the
filter cover.
e) Secure the filter cover by the truss
head screw.
