MULTIPOINT
5
3. INSTALLATION - ELECTRICAL REQUIREMENTS
WARNING: This appliance must be earthed. It is suitable for a.c. supply only.
Disconnect the electrical supply before removing the terminal cover.
Installation must be in accordance with the current I.E.E. Wiring Regulations.
3.1 The unit is supplied fitted with a 0.75m 3 core 1.5mm
2
flexible cable. The electicity
supply should be fused 13 Amp and be via a double pole isolating switch with a
contact separation of at least 3mm in both poles. Refer to the schematic wiring
diagram, Figure 6, on the next page.
3.2 The wires are colour coded as follows:
Green and Yellow EARTH ( )
Brown LIVE (L)
Blue NEUTRAL (N)
5
E
G
I
H
F
A
B
C
D
2 KEYHOLE
FIXING SLOTS
6mm WIDE

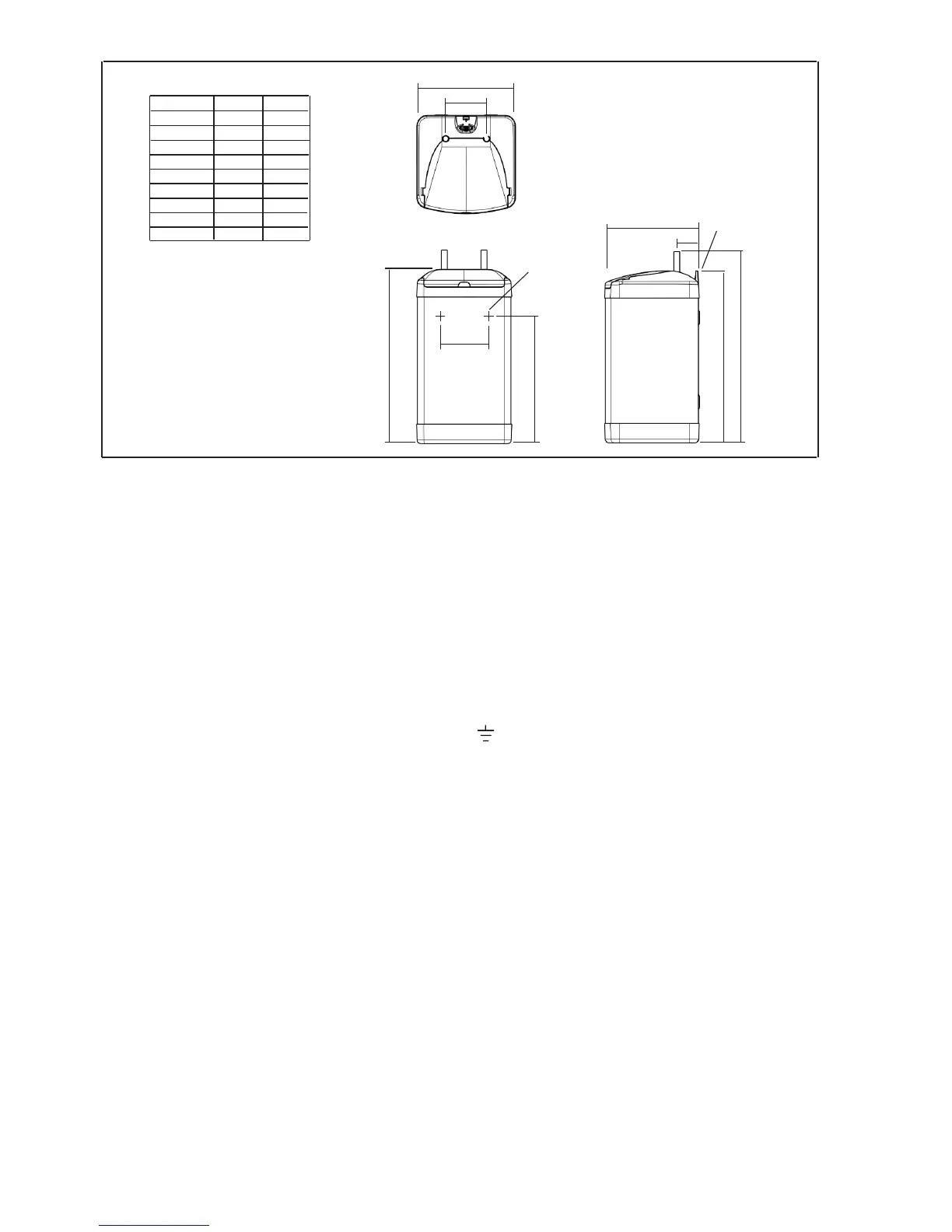

FIGURE 5: DIMENSIONS
FIXING HOLE
DIMENSION 10 LITRE 15 LITRE
A 442mm 598mm
B 322mm 478mm
C 437mm 593mm
D 492mm 648mm
E 240mm 240mm
F 100mm 100mm
G 120mm 120mm
H 240mm 240mm
I 57mm 57mm
