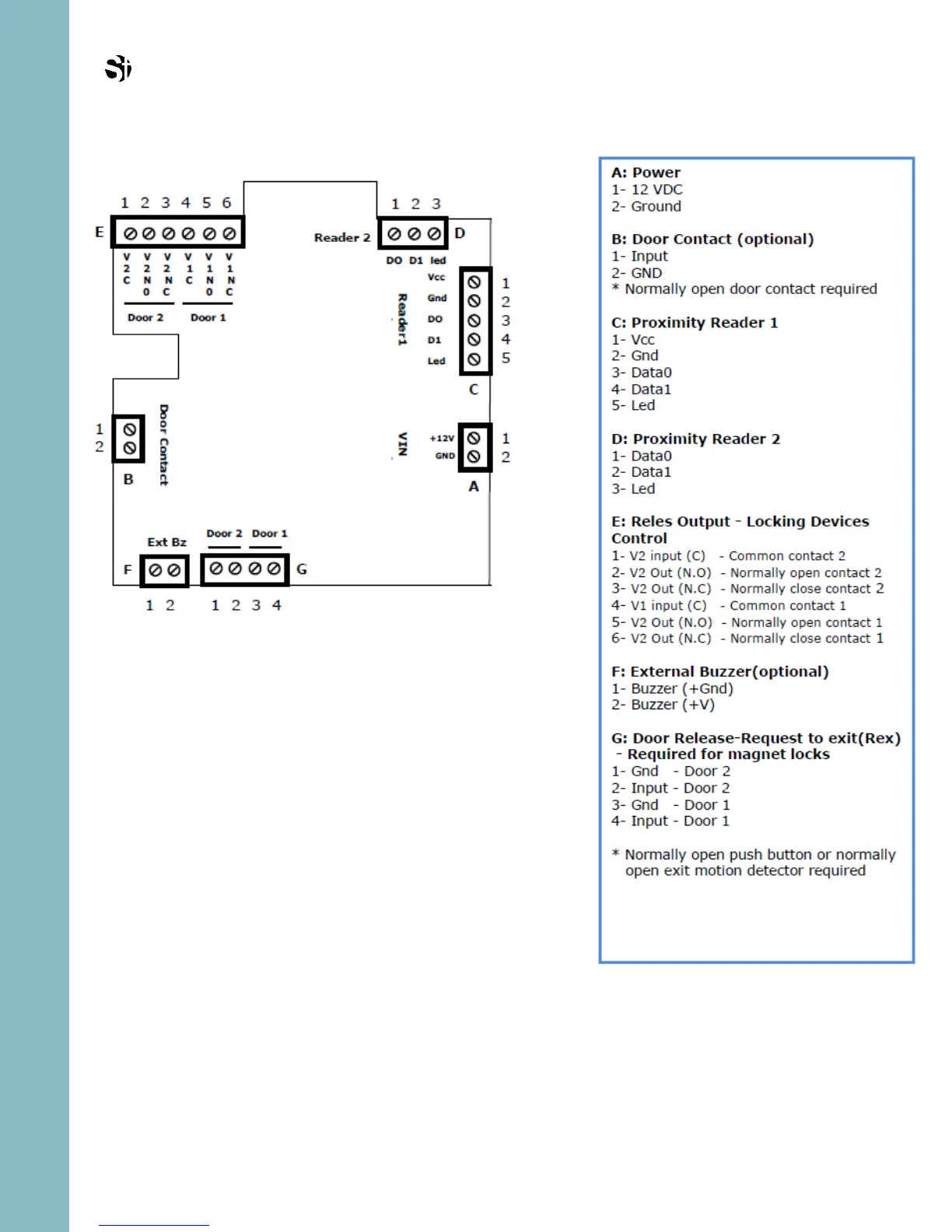

Controller Module: Board connectors description and recommended cables
Recommended Cables:
Proximity Reader:
 6 Conductors x 22 AWG - Shielded
(5 cables used). Maximum distance: 300 feet (100 meters)
Electric Strike or Magnetic Lock:
 Option 1: 2 Conductors x 18 AWG
 Option 2: Quad cable: 4 conductors x 22 AWG
Power supply:
 Option 1: 2 Conductors x 18 AWG
 Option 2: Quad cable: 4 Conductors x 22 AWG
Door Contact:
 2 Conductors x 22 AWG
Door Release (REX):
 2 Conductors x 22 AWG
