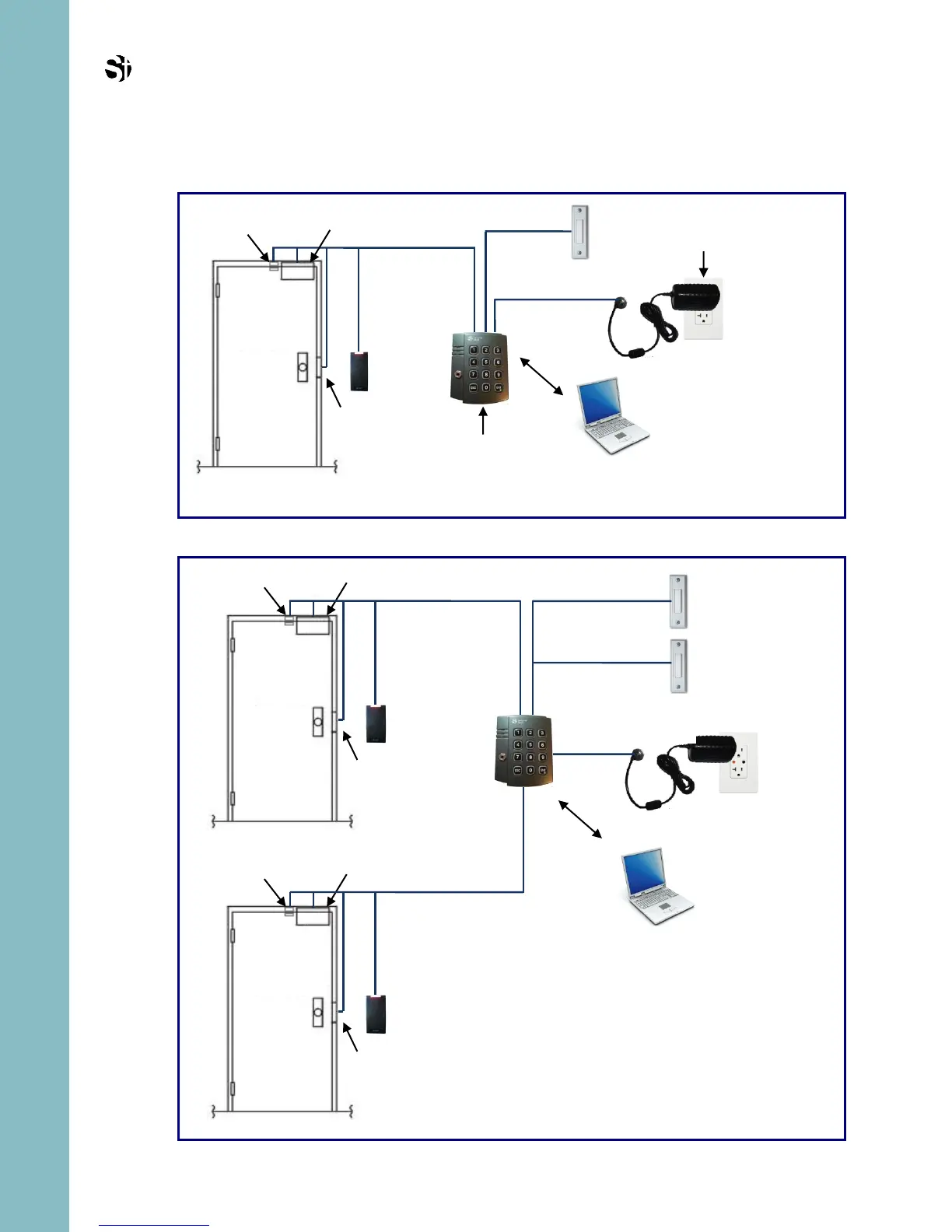

Installation diagrams
Access Control One (1) Door
Access Control Two (2) Doors
AC Power outlet
110VAC/220VAC
Magnetic lock
Door contact (Optional)
Choose Electric
Strike or
Magnetic lock
Electric Strike
Magnetic lock
Door contact (Optional)
Choose Electric
Strike or
Magnetic lock
Electric Strike
Proximity Card
Reader
Door controller module
(installed indoors)
12 DC Power
Supply
Proximity Card
Reader
Door controller module
(installed indoors)
12 DC Power
Supply
Magnetic lock
Door contact (Optional)
Choose Electric
Strike or
Magnetic lock
Electric Strike
Release push button
Door2 (optional)
Release push button
Door1 (optional)
Release push
button (optional)
Laptop to perform
management operations
Laptop to perform
management operations
Proximity Card
Reader
Choose locking device: electric strike or magnetic lock
Choose locking device: electric strike or magnetic lock
Choose locking device: electric strike or magnetic lock
