Editing MHI Databases
The Definition specifies the identifier of the alarm or trouble being sent to the central station.
The zone types that are available are Fire, Sprinkler, Heat, Water and Untyped.
The Reporting Codes are used when SIA or Contact ID is set to Programmed, or when using
BPS formats. There are six reporting codes for each group. They are:
• Zone Alarm Reporting Code
• Zone Alarm Restoral Reporting Code
• Trouble Reporting Code
• Trouble Restoral Reporting Code
• Supervisory Reporting Code
• Supervisory Restoral Reporting Code
2.8.23 Dialer Maintenance and Common Reporting Codes
The Dialer Maintenance and Common Reporting Codes dialog (see Figure 18) contains
maintenance and common reporting codes that the dialer will use to communicate those
events.

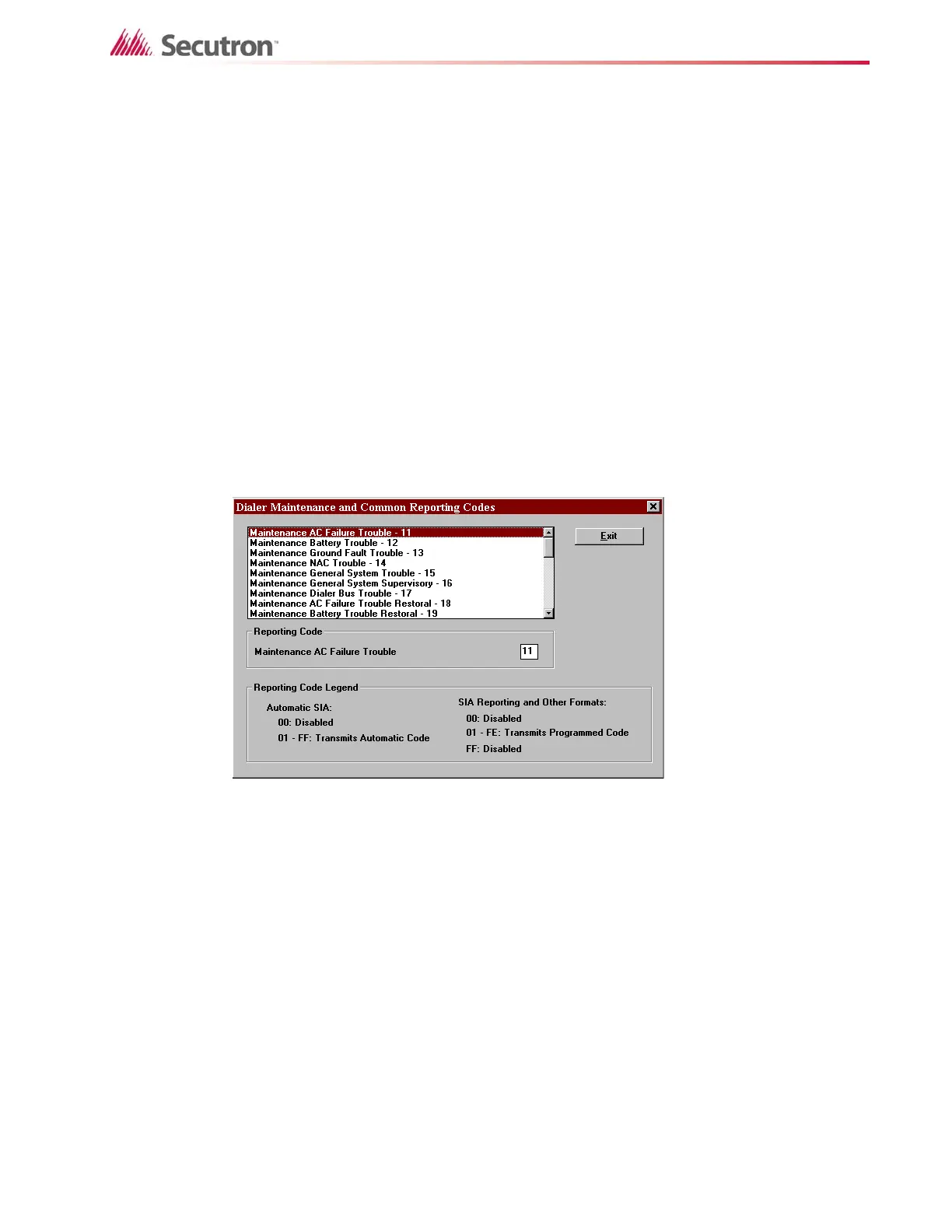

Figure 18 Dialer Maintenance and Common Reporting Codes
The Reporting Codes List is a list of all available maintenance and common reporting codes.
Select one to program its reporting code.
The Reporting Code is used when SIA or Contact ID is set to Programmed, or when using
BPS formats. There are many different reporting codes in this group.
2.9 Circuits and Devices Windows
2.9.1 Overview
The Circuits Window (see Figure 19) allows for the defining of addressable input circuits. The
Devices Window (see Figure 20) allows for the defining of addressable devices. These two
