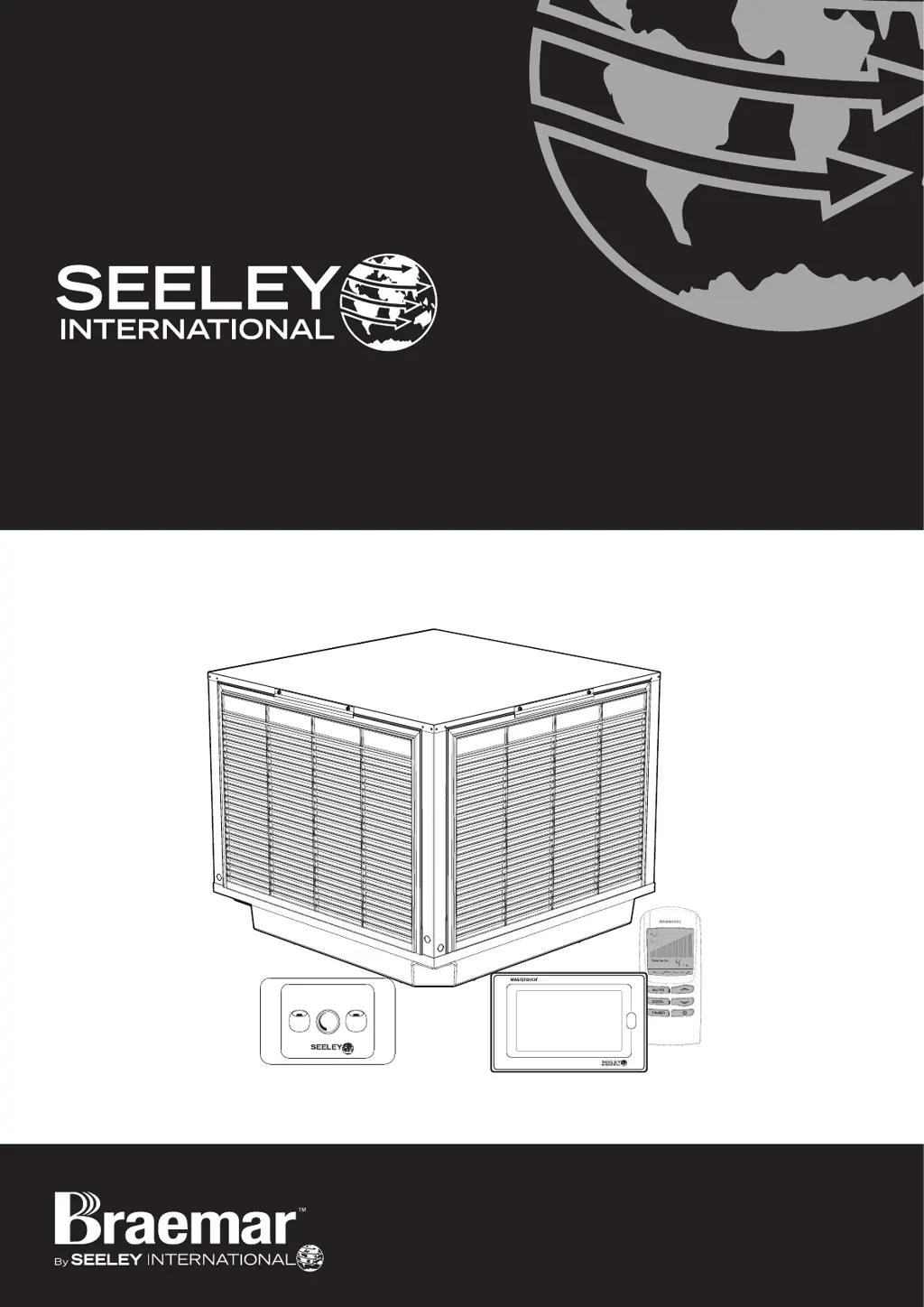

INSTALLATION MANUAL
RPCQi Evaporative Coolers
Original English Instructions
ON ON
OFFOFF
COOL
SPEED
INTERNA TIONAL
AIR

Table of Contents

Questions and Answers

  • D
    David RomeroAug 14, 2025
    Why is my Seeley Braemar RPCQi Air Cleaner not cooling enough?
    • J
      Jessica GibsonAug 14, 2025
      If your Seeley Air Cleaner isn't cooling effectively, several factors could be the cause. The cooler itself might be too small for the space; in that case, consider replacing it with a larger unit. Undersized ducts can also restrict airflow; a cooling load design can help determine the correct size for your unit, ducting, and outlets. Check for clogged or dirty cooling pads and clean or replace them as needed. Ensure the pads are adequately wet and that the water distribution system isn't obstructed. Also, confirm that there's sufficient exhaust from the building to prevent high humidity. On days with excessive ambient humidity, the cooler's performance will be reduced, and shutting off the pump may be necessary.
  • C
    Christina KingAug 17, 2025
    What to do if the fan on my Seeley Air Cleaner fails to start?
    • A
      Alyssa MortonAug 17, 2025
      If the fan on your Seeley Air Cleaner isn't starting, there are several potential reasons. First, check if the main power circuit breaker has tripped and reset it after checking for any overload issues. A burned-out fan motor could also be the culprit, requiring a replacement. Low system voltage can prevent the fan from starting, so consult with your power supply authority. You may also check the tri-color LED on the cooler electronics box for fault indications and rectify the indicated fault. Lastly, a MagIQtouch Controller failure might be the cause, necessitating its replacement.
  • D
    Dalton WatkinsAug 20, 2025
    How to fix a noisy Seeley Braemar RPCQi Air Cleaner?
    • M
      Mary DyerAug 21, 2025
      A noisy Seeley Air Cleaner can be caused by a few things. The fan might be out of balance due to accumulated dirt, so cleaning the fan is a good first step. Alternatively, excessive back pressure from tight duct bends or undersized grilles could be the issue. In this case, re-evaluate the duct design and improve the layout, or change the grille sizes.
  • M
    Matthew PorterAug 25, 2025
    How to get rid of the unpleasant odor from my Seeley Braemar RPCQi?
    • C
      challAug 25, 2025
      An unpleasant odor from your Seeley Air Cleaner can stem from several sources. New cooler pads may initially produce an odor; try filling the tank, running the pump briefly to wash the pads, draining the tank, and repeating this process a few times. Ensure the cooler isn't located near any source of unpleasant odors and relocate it if necessary. Algae growth in the tank water can also cause odors; drain the pan, clean it thoroughly, refill it, and change the pads. To prevent odors, run the fan on "vent" for 10 minutes after each cooling cycle to dry the pads. Also, clean or replace pads if there are heavy deposits.
  • D
    David WilsonAug 27, 2025
    What to do if the pump runs but pads lack water in my Seeley Air Cleaner?
    • S
      suzannetaylorAug 27, 2025
      If the pump in your Seeley Air Cleaner is running, but there's no water circulation or the pads aren't getting wet, start by adjusting the float level if there is insufficient water in the tank. Check for and clear any blockages in the water hoses or the pump strainer. Also, verify and confirm that the water supply pressure is sufficient. Ensure that the water solenoid is installed correctly, following the correct water flow direction.
  • G
    gherreraAug 30, 2025
    Why is my Seeley Air Cleaner continuously overflowing water?
    • D
      David ByrdAug 31, 2025
      Continuous water overflow in your Seeley Air Cleaner can be attributed to several factors. The float valve adjustment might not be correct, so try adjusting it. Heavy pad deposits can also cause overflow, requiring you to clean or replace the pads. A faulty drain valve could be the issue, necessitating its replacement. Additionally, check that the water solenoid is installed correctly, ensuring it follows the correct water flow direction.
  • C
    Crystal NashSep 3, 2025
    How to stop water from entering the outlet of my Seeley Braemar RPCQi Air Cleaner?
    • R
      Rebecca LeeSep 3, 2025
      If water is entering the cooler outlet of your Seeley Air Cleaner, check for loose water hose connections and tighten them. Replace any cracked or broken hoses. Ensure the cover is fitted on the float valve; if not, replace the float valve. Verify that the pads are correctly fitted into the pad frames and install them correctly if needed. Also, inspect the pads for damage or incorrect type and replace them with new Chillcell pads if necessary.
  • E
    Emily CannonSep 7, 2025
    What to do if the pump of my Seeley Braemar RPCQi Air Cleaner fails to operate?
    • D
      Denise KerrSep 7, 2025
      If the pump in your Seeley Air Cleaner isn't operating, first check if the circuit breaker has tripped. If it has, check the pump for faults and replace it if necessary. Pump motor failure could also be the cause, requiring a pump replacement.
  • C
    Christian PerrySep 9, 2025
    What causes the Air Sensor to not work on my Seeley Braemar RPCQi Air Cleaner?
    • K
      kyliegordonSep 10, 2025
      If the Air Sensor on your Seeley Air Cleaner isn't working, ensure the Air Sensor cable is securely plugged into the electronics control box. If the issue persists, the Air Sensor itself may have failed and require replacement.

Seeley Braemar RPCQi Series Specifications

General IconGeneral
Air Quality SensorYes
Auto ModeYes
Night ModeYes
Child LockYes
Warranty2 years
ModelBraemar RPCQi Series
TypeAir Purifier
Filter TypeHEPA, Activated Carbon
Control TypeTouch Control
TimerYes
