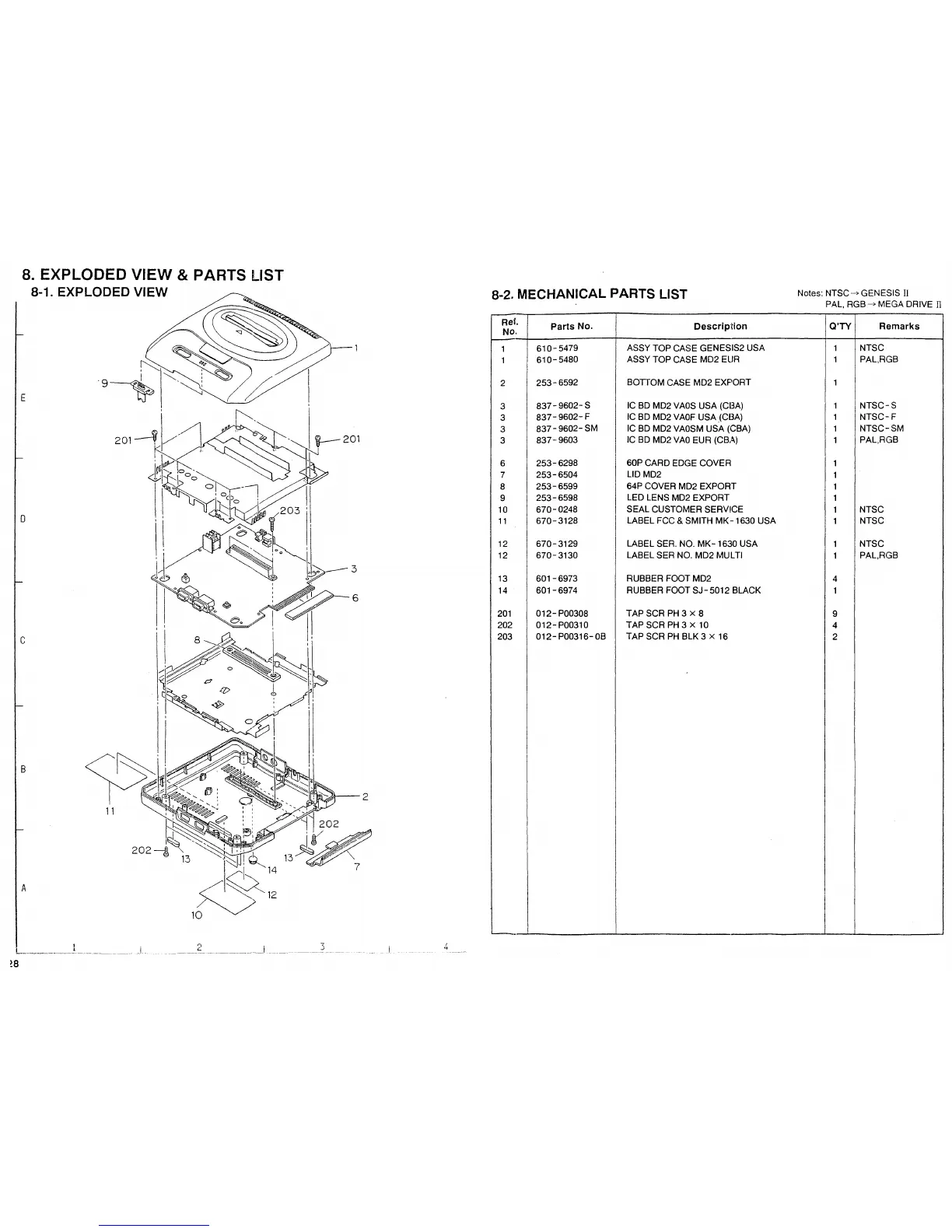

8. EXPLODED VIEW & PARTS LIST
8-1. EXPLODED VIEW
8-2. MECHANICAL PARTS LIST
Notes: NTSC _,.GENESIS U
PAL,
RGB _,.MEGA DRIVE TI
Ref.
Parts No.
Description Q'TY Remarks
No.
1
610-5479
ASSY TOP CASE GENESIS2 USA
1
NTSC
1
610-5480 ASSY TOP CASE MD2 EUR 1
PAL,RGB
2
253-6592
BOTIOM CASE MD2 EXPORT
1
E
3
837-9602- s
IC BD MD2 VAOS USA (CBA) 1
NTSC-S
3
837-9602- F
IC BD MD2 VAOF USA .(CBA) 1
NTSC-F
3
837-9602- SM
IC BD MD2 VAOSM USA (CBA) 1
NTSC-SM
3
837-9603 IC BD MD2 VAO EUR (CBA)
1
PAL,RGB
6
253-6298 60P CARD EDGE COVER
1
7
253-6504
LID MD2
1
8
253-6599 64P COVER MD2 EXPORT
1
9
253-6598 LED LENS MD2 EXPORT
1
10
670-0248 SEAL CUSTOMER SERVICE
1 NTSC
0
11
670-3128 LABEL FCC & SMITH MK- 1630 USA
1
NTSC
12
670-3129 LABEL SEA. NO. MK- 1630 USA
1
NTSC
12
670-3130
LABEL SEA NO. MD2 MULTI
1
PAL,RGB
3
13 601-6973 RUBBER FOOT MD2
4
14
601-6974 RUBBER FOOT SJ-5012 BLACK
1
6
201 012- P00308 TAP SCR PH 3 X 8
9
202 012-P00310 TAPSCRPH3X10
4
c
203
012-P00316-0B
TAP SCR PH BLK 3 x 16
2
B
11
A
3
L
4
~8
