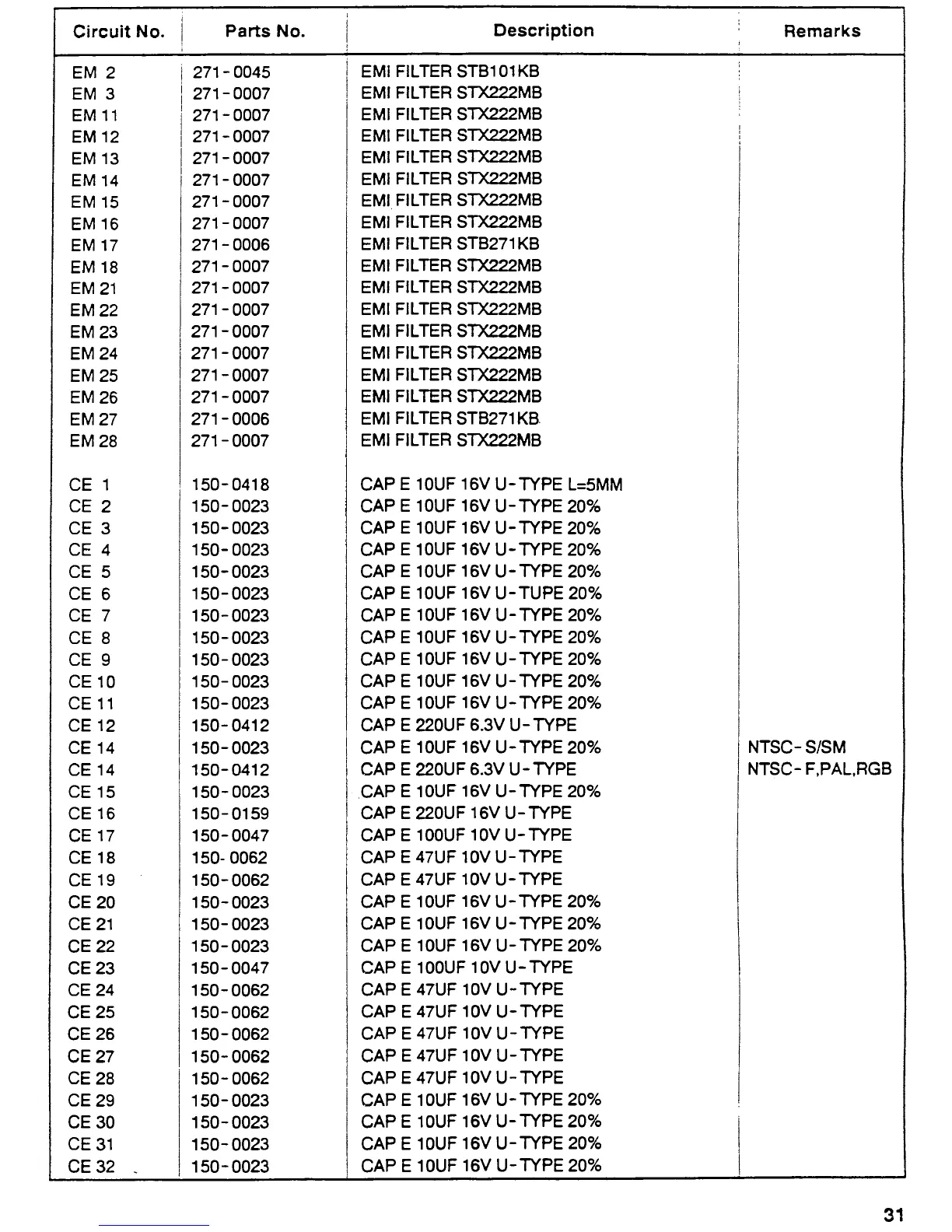

Sega GENESIS II User Manual

I
Circuit No.
Parts No.
I
Description
:
Remarks
I
I
EM 2
271-0045
I
EMI FILTER STB101KB
EM 3
271-0007
I
EMI FILTER STX222MB
EM 11
271-0007
EMI FILTER STX222MB
EM 12
271-0007
EMI FILTER STX222MB
I
I
EM 13
271-0007
EMI FILTER STX222MB
I
EM14
271-0007
EMI FILTER STX222MB
EM 15
271-0007
EMI FILTER STX222MB
EM 16
271-0007
EMI FILTER STX222MB
EM 17
271-0006
EMI FILTER STB271KB
EM 18
271-0007
EMI FILTER STX222MB
EM21
271-0007
EMI FILTER STX222MB
I
EM22
271-0007 EMI FILTER STX222MB
EM23
271-0007 EMI FILTER STX222MB
EM24
271-0007 EMI FILTER STX222MB
EM25
271-0007
EMI FILTER STX222MB
EM26
271-0007
EMI FILTER STX222MB
EM27
271-0006
EMI FILTER STB271 KB
EM28
271-0007
EMI FILTER STX222MB
CE 1
150-0418
CAPE 10UF 16V U- TYPE L=5MM
CE 2
150-0023 CAPE 10UF 16V U- TYPE 20%
CE 3
150-0023
CAPE 10UF 16V U-TYPE20%
CE 4
150-0023 CAPE 10UF 16V U- TYPE 20%
CE 5
150-0023
CAPE 10UF 16V U- TYPE 20%
CE 6
150-0023
CAP E 1 OUF 16V U- TUPE 20%
CE 7 150-0023
CAPE 10UF 16V U- TYPE 20%
CE 8
150-0023
CAPE 10UF 16V U- TYPE 20%
CE 9
150-0023
CAPE 10UF 16V U- TYPE 20%
CE10 150-0023
CAPE 10UF 16V U- TYPE 20%
CE 11
150-0023
CAPE 10UF 16V U- TYPE 20%
CE12
150-0412
CAPE 220UF 6.3V U- TYPE
CE14 150-0023
CAP E 1 OUF 16V U- TYPE 20% NTSC-S/SM
CE14
150-0412
CAP E 220UF 6.3V U- TYPE NTSC-F,PAL.RGB
CE15 150-0023
CAPE 10UF 16V U- TYPE 20%
CE16 150-0159
CAP E 220UF 16V U- TYPE
CE17 150-0047
CAPE 100UF 10V U- TYPE
CE18
150-0062
CAPE 47UF 10V U- TYPE
CE19
150-0062
CAP E 47UF 1 OV U- TYPE
CE20
150-0023
CAPE 10UF 16V U- TYPE 20%
CE21
150-0023
CAPE 10UF 16V U- TYPE 20%
CE22 150-0023
CAPE 10UF 16V U- TYPE 20%
CE23 150-0047
CAPE 100UF 10V U- TYPE
CE24 150-0062
CAPE 47UF 10V U- TYPE
CE25
150-0062
CAP E 47UF 1 OV U- TYPE
CE26
150-0062
CAPE 47UF 10V U- TYPE
CE27 150-0062
CAPE 47UF 10V U- TYPE
CE28 150-0062
CAPE 47UF 10V U- TYPE
CE29
150-0023
CAPE 10UF 16V U- TYPE 20%
CE30
150-0023
CAPE 10UF 16V U- TYPE 20%
CE 31 150-0023
CAPE 10UF 16V U- TYPE 20%
CE32
-
150-0023
CAPE 10UF 16V U- TYPE 20%
31
