ST-193-091394
Sega Enterprises, Ltd.
(RDJ, 9/27/94)
13
SCSI ID Setting
When a host machine (PC/AT, Mac, etc.) is connected to the SCSI, the SCSI ID
must be set. The SCSI ID can use the numbers 1 through 6. The ID is changed
by the switch on the sound board to a setting not used by another SCSI device,
such as a hard disk drive, already connected. The switch is set to an ID of 6 at
the time of shipment. To change switches, first remove the Sound Box cover,
then make the desired setting.
12345678
ON
OFF
SW2
SCSI CONNECTOR
ID SETTING SWITCH
MIDI CONNECTOR
SOUND BOARD

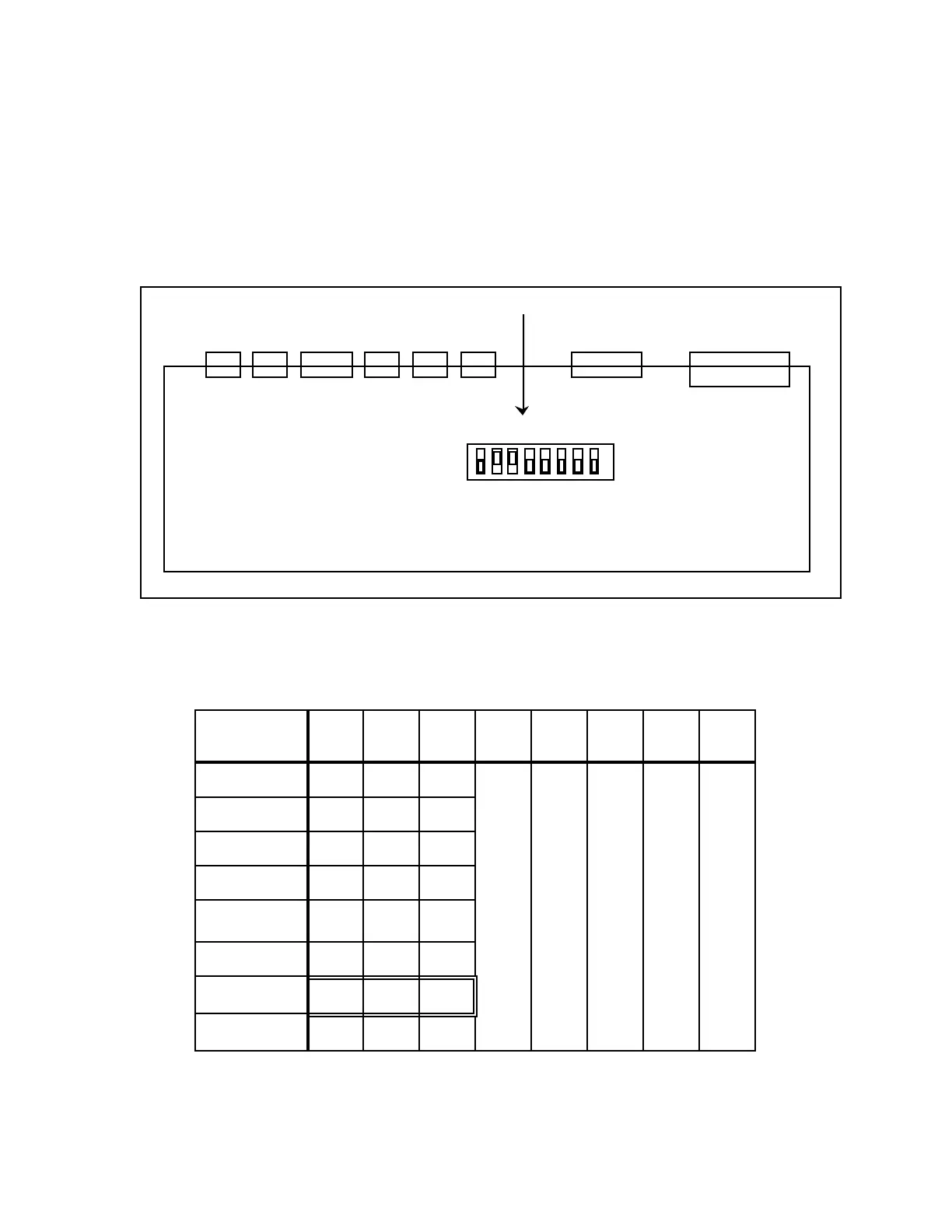

Figure 3.3 Sound SCSI ID set Switch Position
Table 3.1 Sound SCSI ID Settings
Switch No. 12345678
ID No.
0 OFF OFF OFF
1 ON OFF OFF
2 OFF ON OFF
3 ON ON OFF
4
OFF OFF ON
OFF OFF OFF OFF OFF
5 ON OFF ON
6 OFF ON ON
7 ONONON
Note: Settings at the time of shipment are shown within the double lines
