Counter Installation Manual
[continued]
3. Remove the screws that hold the credit board to
the inside wall of the Superbooth. Be careful to not
disconnect any wires. You just need to be able to
access the board to solder a wire to it.
4. Solder the red wire of the lead wire to the 5V spot
on the credit board.
5. Locate the DBA wiring harness on the side of the DBA.
Untwist the two yellow wires that are on the plug that
isn’t directly wired to the DBA. This is the side that the
110V plug is connected to.

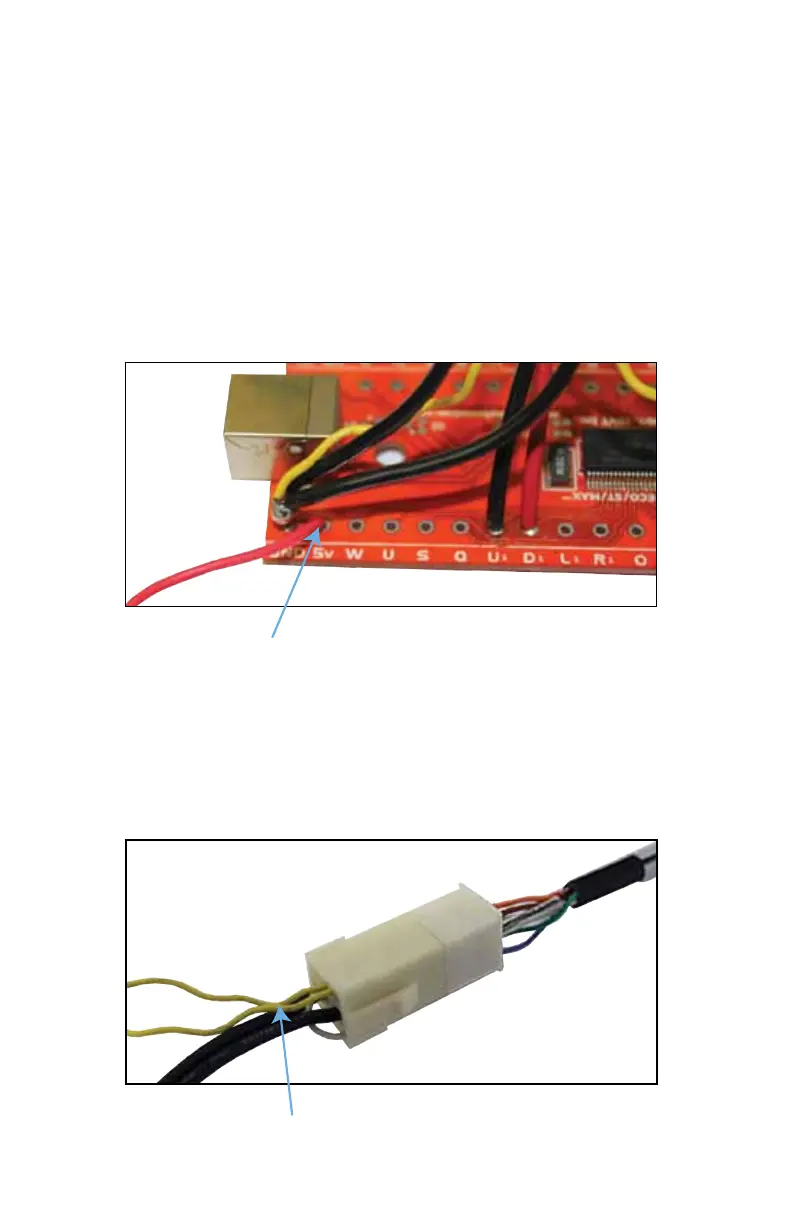

Red wire lead connects to 5V on the credit board.
Untwist Yellow wires [labed “to coin trip switch”]
