Counter Installation Manual
[continued]
6. Once the wires are untwisted you will need to cut the
yellow wire in the top left hole [harness clip facing up].
7. Now take the black wire lead from the Counter and
twist the two cut yellow wires and black lead wire
together. Solder the connection to make sure the wires
are connected completely.
8. Wrap the wire with electrical tape to cover the
exposed wires.
9.
Test the counter by putting $5 and $1 bills into the DBA.

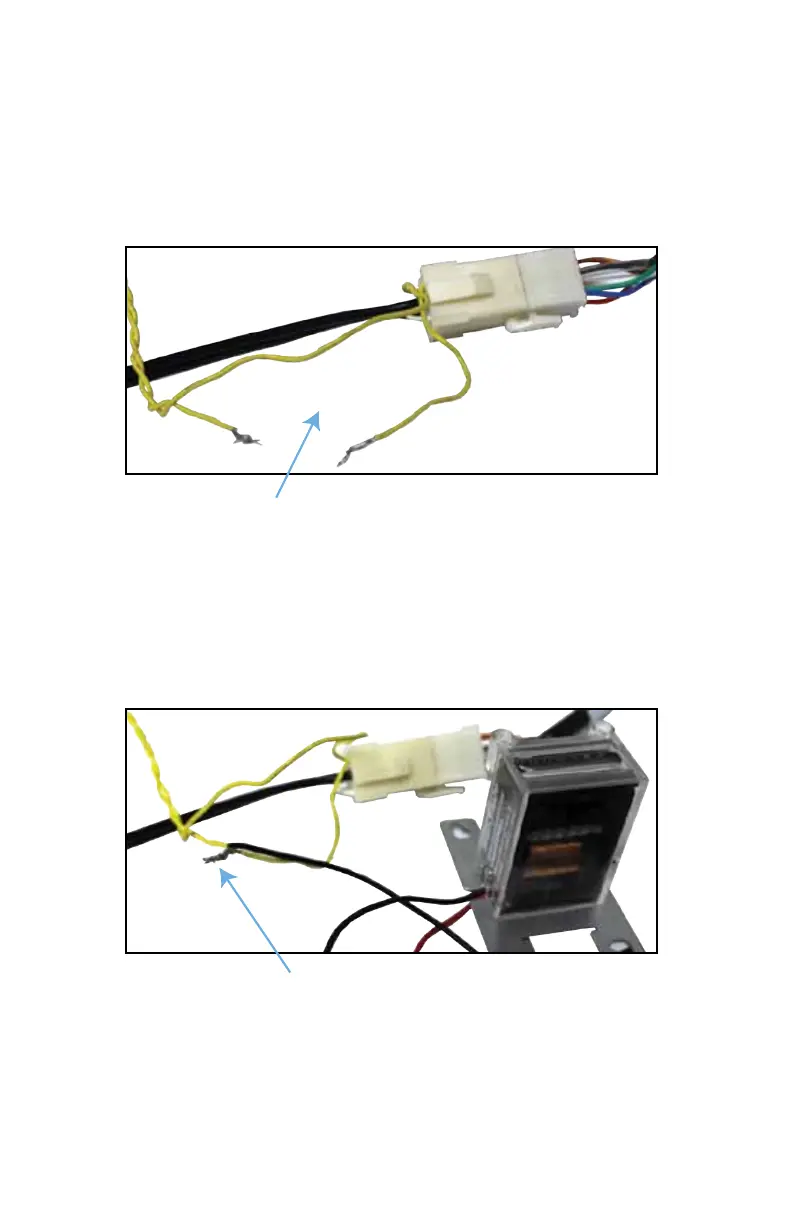

Cut the yellow wire about 3” from the harness.
Solder the twisted wires to ensure a proper connection.
