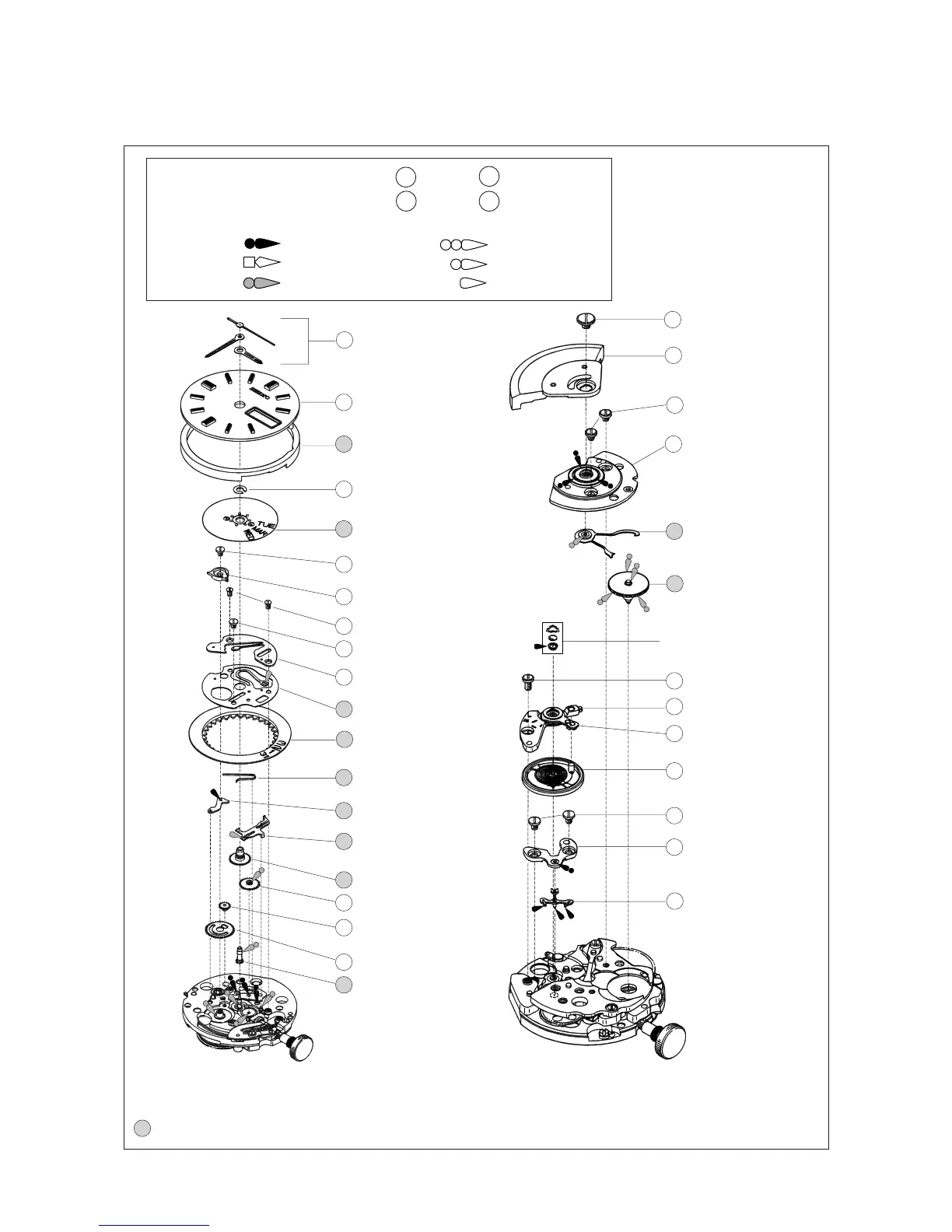

PARTS CATALOGUE
30 0310 421
Balance complete
with stud
28 0012 123
Stud screw
29 0171 426
Balance cock
27 0012 484
Balance cock screw
Diashock
26 0505 421
Transmission wheel
and pinion
25 0831 421
Pawl lever with jewel
23 0012 485
Framework for automatic
device screw
Disassembling procedures Figs. : 1 ~ 61
Reassembling procedures Figs. : 61 ~ 1
Lubricating: Type of oil Oil quantity
Moebius A or AO-32 Liberal quantity
SEIKO Watch Oil S-4 Normal quantity
SEIKO Watch Oil S-6 Extremely small
20 Cannon pinion
19 0802 422
Date driving wheel
18 0817 421
Intermediate date driving
wheel and pinion
17 0261 422
Minute wheel
16 Hour wheel
15 0972 423
Day-date corrector finger
14 0810 420
Date jumper
13 0811 420
Date jumper spring
12 Date dial
11 0808 423
Date dial guard
10 0873 422
Day jumper
9 0012 485
Date dial guard screw
8 0012 797
Day jumper screw
7 0556 422
Date finger
6 0012 485
Date driving wheel
screw
5 Day star with dial disk
3 Holding ring for dial
2 Dial
1 Hour, minute and
second hands
21 0012 488
Oscillating weight
without pinion screw
Cal. 4205B, 4206B, 4207B, 4208B, 4225A, 4227A
4 0963 420
Snap for day star with
dial disk
22 0500 424
Oscillating weight
24 0193 420
Framework for automatic
device with ball bearing
Ex.: Cal. 4206B
33 0301 422
Jewelled pallet fork
and staff
32 0161 420
Pallet cock
31 0012 485
Pallet cock screw
Please see the remarks on the following pages.
➡➡
