Cal.5D88A TECHNICAL GUIDE
ILLUSTRATION AND SPECIAL INSTRUCTIONS ETC.
Mount the train
wheel bridge and
check the pivot hole.
<59>

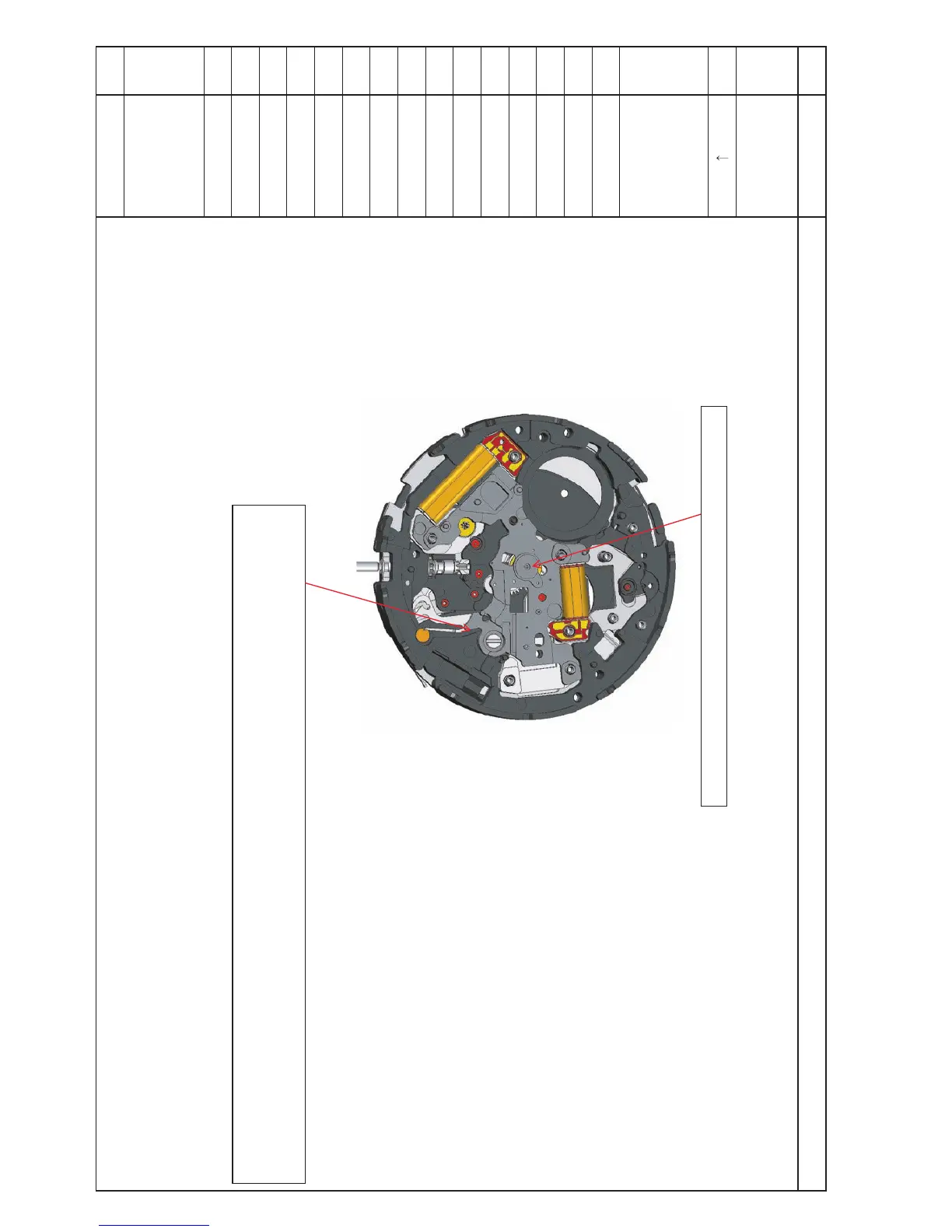

Mount the train wheel bridge and check the pivot hole.
69
Fix the train wheel
bridge to the spacer
for coil block rotor
by tightening the
train wheel bridge
screw.
<69>
Fix the train wheel bridge to the spacer for coil block rotor by tightening the train wheel bridge screw.
* Do not overtighten the train wheel bridge screw as doing so may cuase sinking of the train wheel
bridge applying pressure on other parts underneath it, which may result in deterioration of the motor.
