2

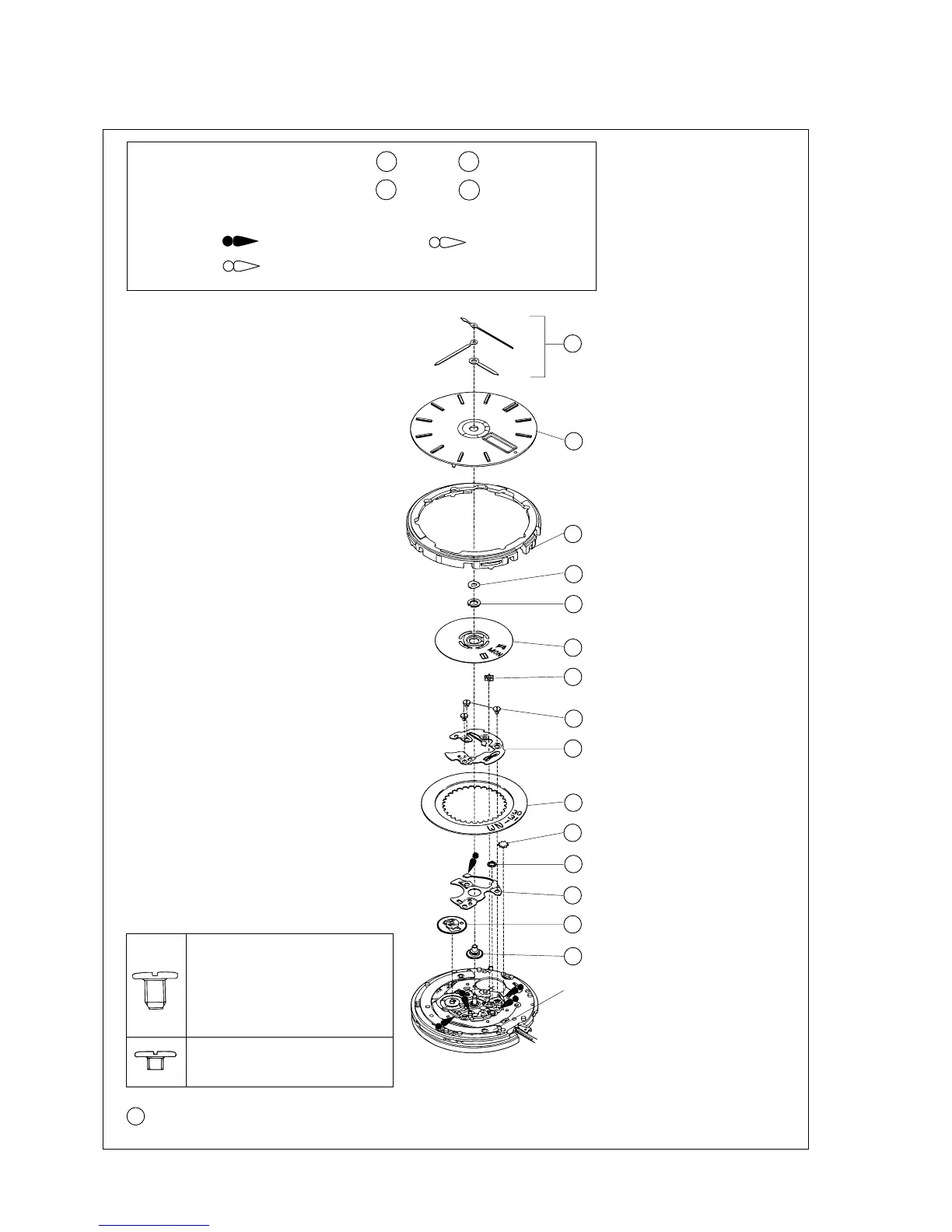

Disassembling procedures Figs. : 1 → 52
Reassembling procedures Figs. : 52 → 1
Lubricating: Types of oil Oil quantity
Moebius A Normal quantity
SEIKO Watch Oil S-6
Ex.: Cal. 5M43A
Cal. 5M42A, 5M43A
➡➡
Please see the remarks on the following pages.
PARTS CATALOGUE
0022 247
• Date dial guard screw (3 pcs.)
• Capacitor clamp screw (2 pcs.)
• Circuit block cover screw (2 pcs.)
• Oscillating weight bridge screw (2 pcs.)
• Coil block screw (1 pc.)
• Train wheel bridge screw (1 pc.)
0022 490
• Oscillating weight screw (1 pc.)
1 Hour, minute and second hands
15 0271 670
Hour wheel
Anti-magnetic shield plate
(The anti-magnetic shield plate is
welded to the main plate, and
they cannot be disassembled.)
14 0816 670
Date driving wheel
12 0962 670
Intermediate wheel for calendar correction
13 0810 660
Date jumper
11 0737 670
Day corrector setting wheel
10 Date dial
9 0808 660
Date dial guard
7 0989 660
Intermediate wheel for day correction
(Only for Cal. 5M43A)
8 0022 247
Date dial guard screw
6 Day star with dial disk
(Only for Cal. 5M43A)
5 0963 781
Snap for day star with dial disk
(Only for Cal. 5M43A)
4 0491 589
Dial washer
3 Holding ring for dial
2 Dial
To Next Page
