TECHNICAL GUIDE
Cal. 6N76A
15/18
●
Value checking – coil resistance (coil blocks)
Check the resistance of each coil block if they are within the range in the following table.
2.1 K
Ω
~ 2.3 K
Ω
CIRCUIT BLOCK WITH COIL BLOCK COIL 4004274

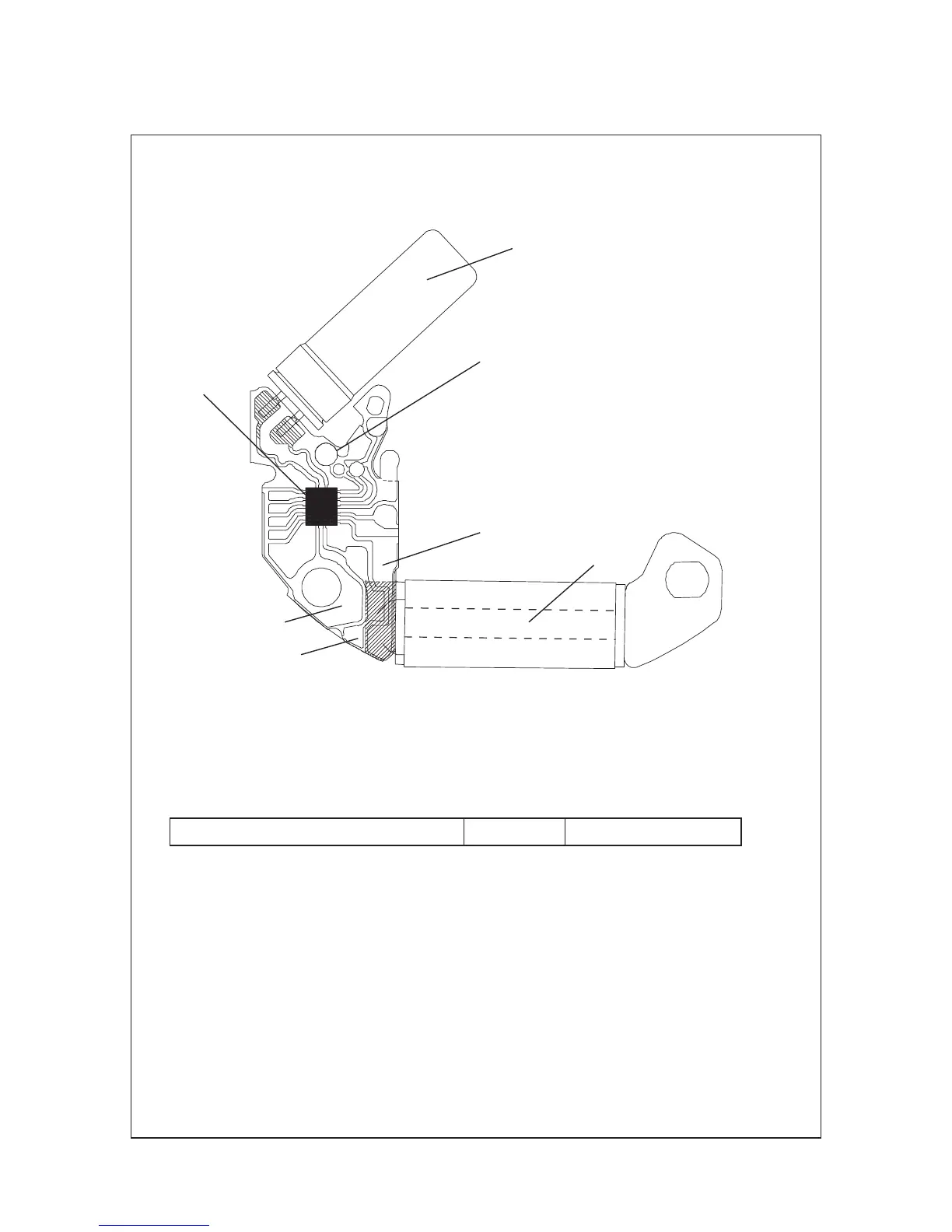

[Structure of the CIRCUIT BLOCK]
Input terminal (-)
OUT1
Crystal unit
OUT2
C=MOS=IC
Notes: Since the circuit block and coil block are made by one piece, in disassembling and
reassembling take care not to cut the coil line.
Coil block
Coil resistance can be measured by touching on "OUT 1" and "OUT 2."
