TECHNICAL GUIDE
Cal. H024A

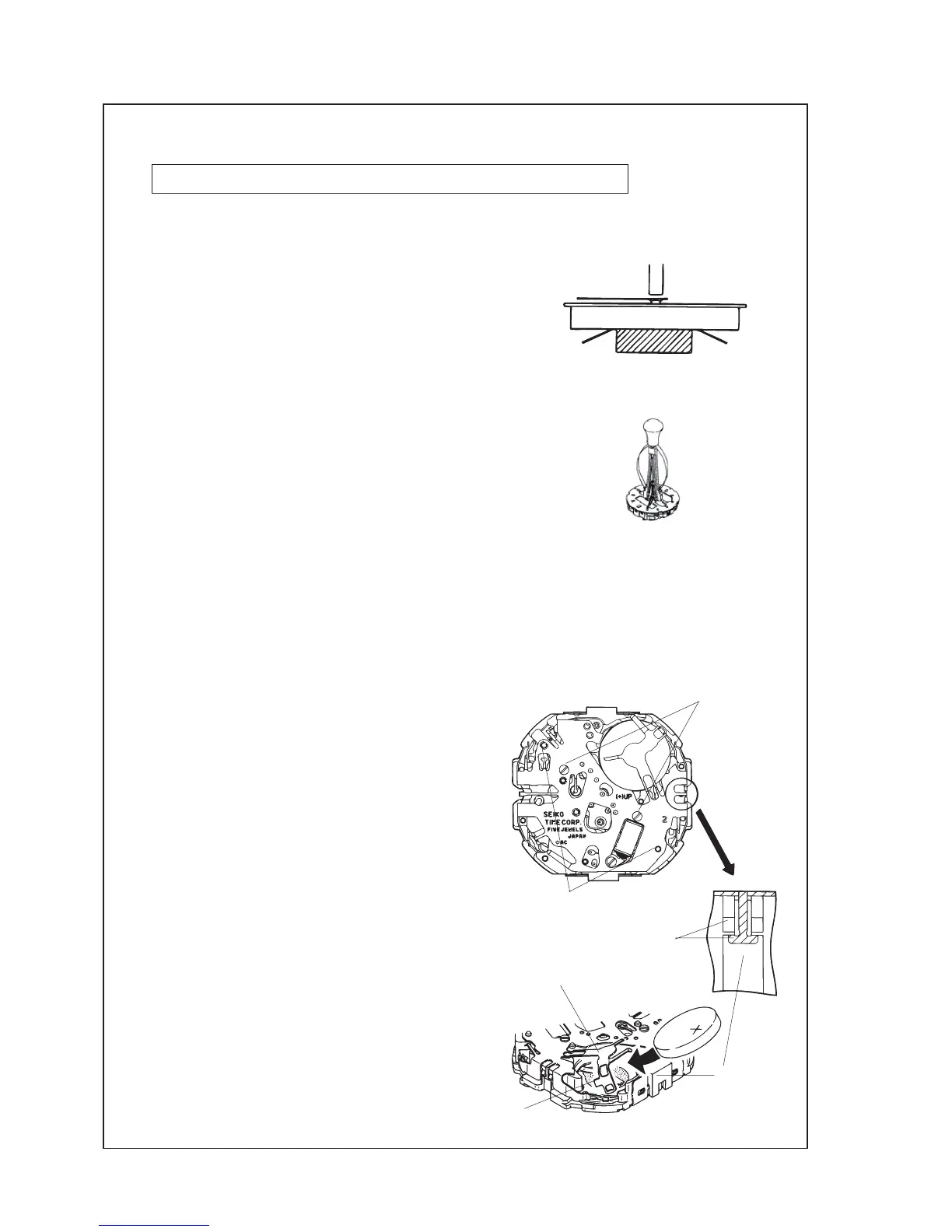

III. REMARKS ON DISASSEMBLING AND REASSEMBLING
1. Set the switch spring in position, taking care not to
damage the two guide pins for the main plate. Then,
tighten the two switch spring screws.
• How to install
Battery
Switch spring
2. Make sure the two hooks of the switch spring engage
the main plate.
3. Insert the battery sideways, and have the hook of the
switch spring’s battery clamp portion catch the main
plate.
Use the universal movement holder for disassembling and reassembling.
Hour and minute hands
• Remarks on installing
After installing the battery in the movement, place the move-
ment on a flat metal plate or the like to install the hands.
* Install the hour and minute hands at the 12 o’clock position
within 60 seconds after resetting the circuit.
8
6
q;
• Remarks on removing the hands
When using a tool such as a bow-shaped hand remover,
exercise care so as not to damage the dial with the tool during
the hand removing process. Remove the hands either in the
direction of 2 o'clock and 8 o'clock or in the directions of 4
o'clock and 10 o'clock.
H024A
