Seiko TH-2B - Bobbin Operations

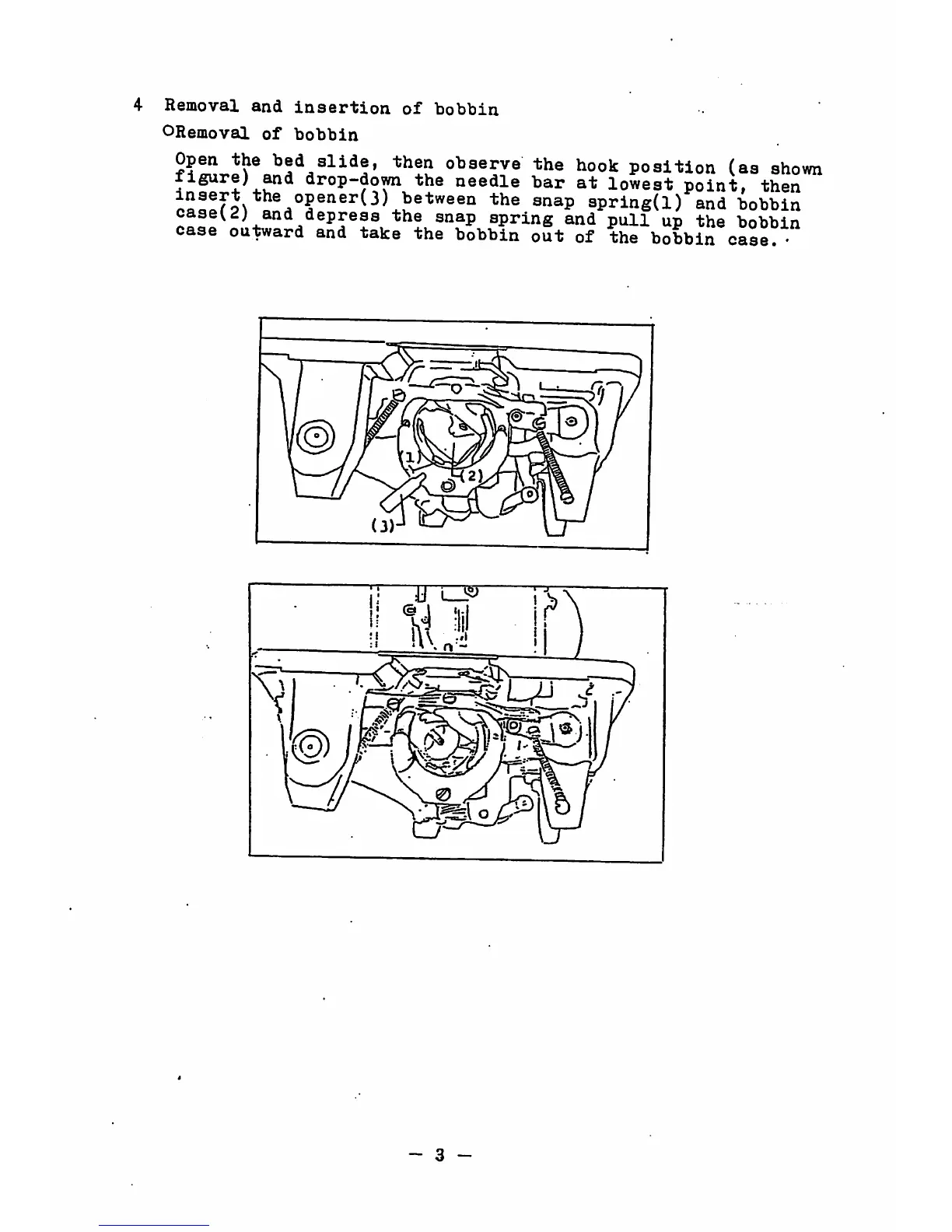

4 Removal and insertion of bobbin
ORemoval of bobbin
Open the bed slide, then observe the hook position (as shown
figure) and drop-do^ the needle bar at lowest point, then
apring(l) and bobbin
caseu) and depress the snap spring and pull up the bobbin
case outward and take the bobbin out of the bobbin case. •
b
- 3 -
