1. System Overview

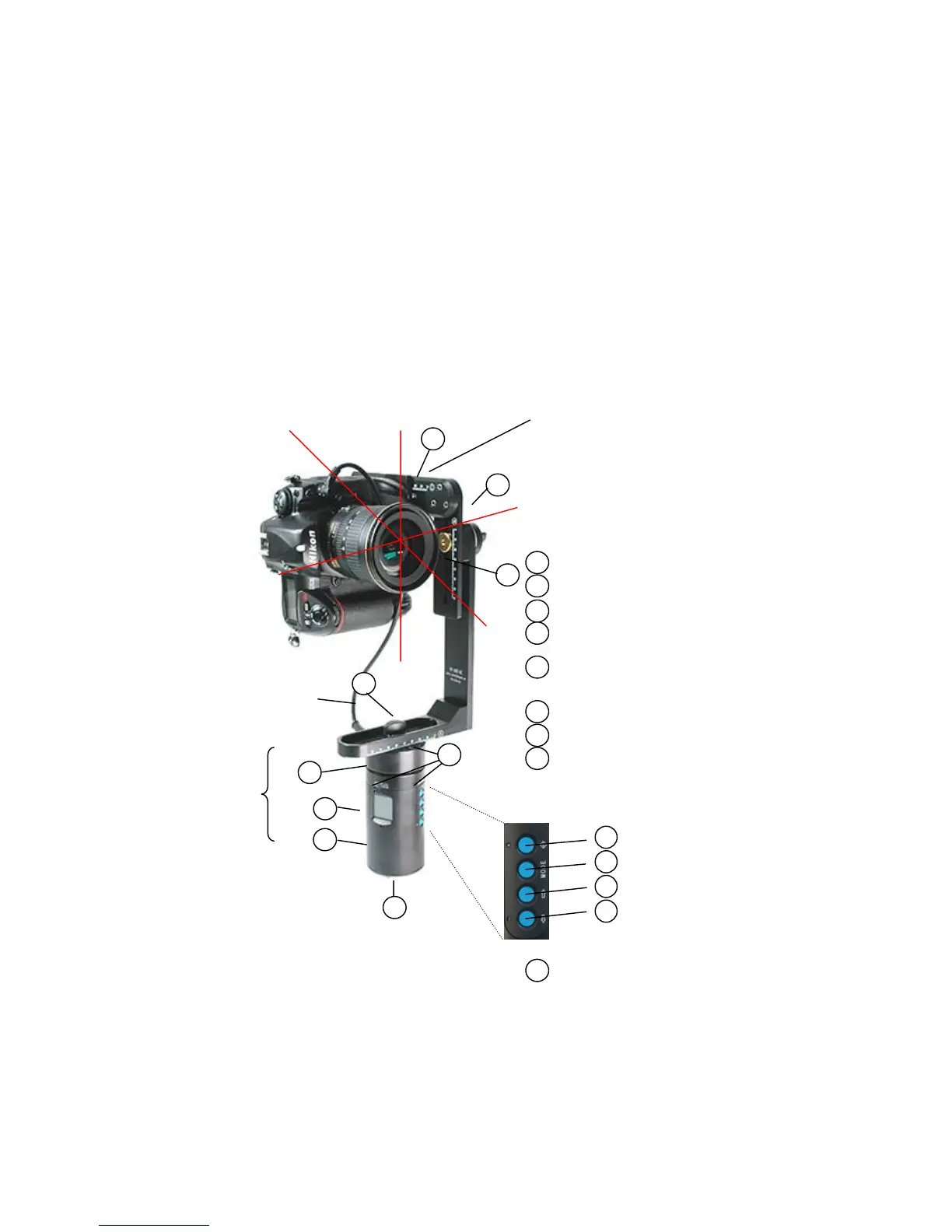

1.1 Roundshot VR Drive Panorama Set & Object Movie Set
VR Drive
motor with
firmware and
batteries
Digital
camera
3
9
VR Drive bracket / VR Head
9
VR Drive Panorama Set
1
A
B
C
Adjustment bar for x-axis
Adjustment bar for y-axis
Adjustment bar for nodal point
Tilt lever to change z-axis
Y-axis
X-axis
Z-axis
D
Electronic
release
cable
Socket for release cable (panorama
mode)
Spirit level
Display
Socket for release cable (object movie
mode) and for charger cable
Tripod mount (3/8‘‘)
2
5
6
7
8
A
B
C
D
1
3
2
Start/stop button
Mode button
Up button
Down button / power off
4
