2. Roundshot VR Drive Panorama Set

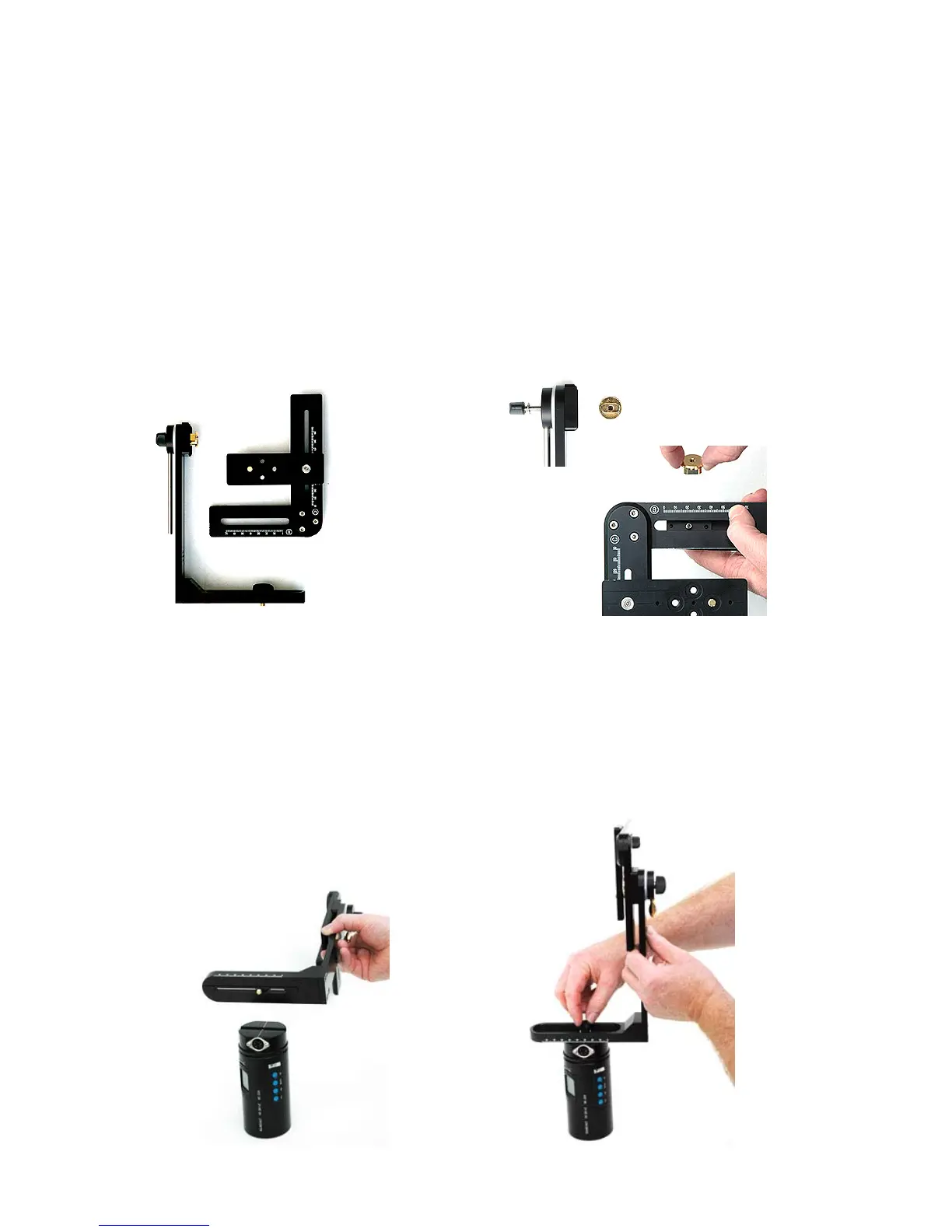

2.1 Setting up the VR Drive Panorama Set
TheVR Headcanbeseparatedforeasier
transport:
It can be reassembled in the
following way:
Step 2: Place the VR Drive motor on a tripod
Step 3: Attach the VR Head on top of the VR Drive motor.
Make sure that the VR Head is placed firmly on the VR Drive motor.
Step 1: Assemble the VR Head
