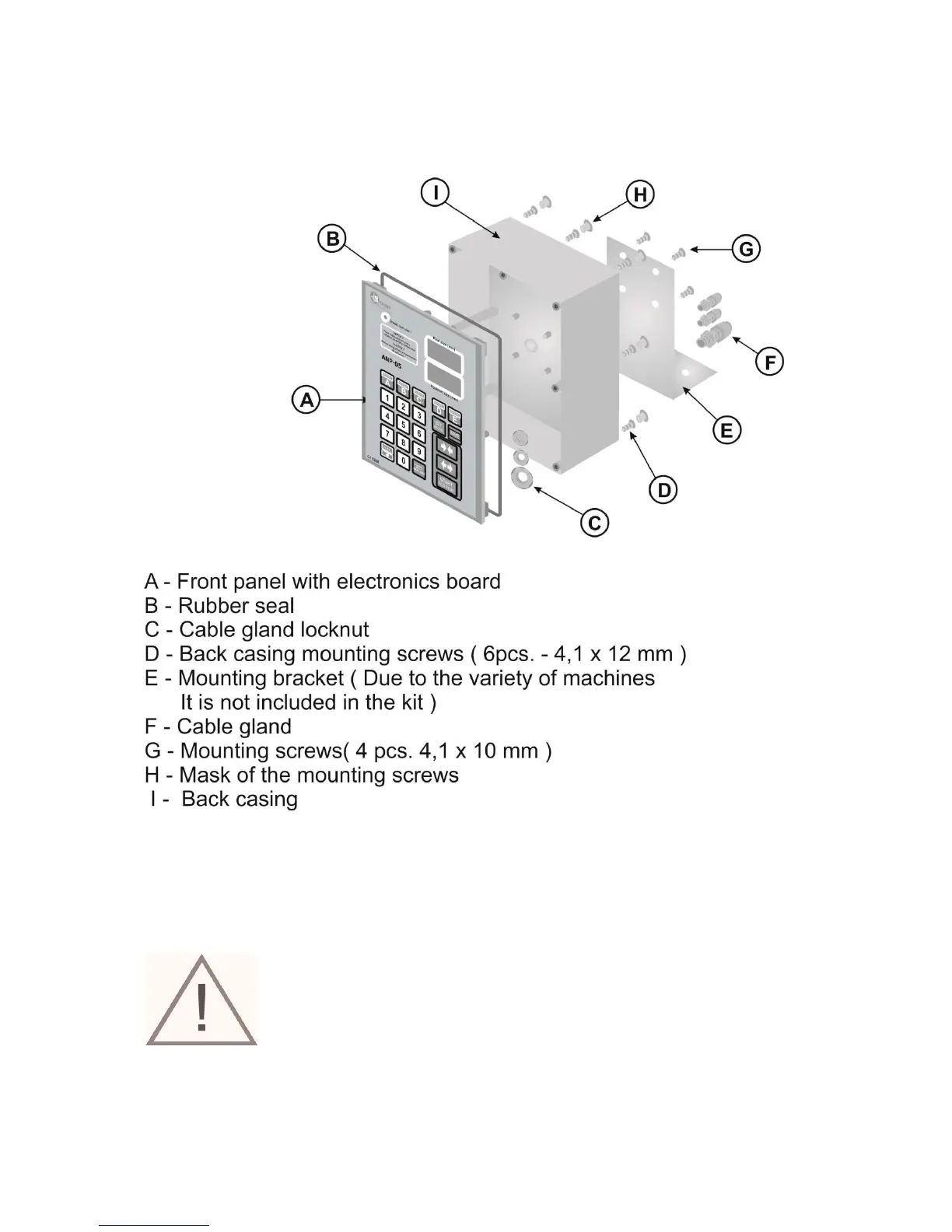

Figure 2. Mounted controller as separate device.
In case of controller mounting as a separate device it is possible after its assembly to
attached it to the machine’s frame using 4 added screws for this purpose. In another case
please made special fixing for mounting the controller which can be used as a distance
support as well (fig. 2, E element).
Electric montage
CAUTION !
During electrical assembly there is a possibility of a electric shock
thus all actions should be made while electric power is off. For this purpose
please turn off machine’s main electric switch!!!
