Selbit ANP-05 User Manual

6
from other cables. Please do not place any sources of the magnetic field next to the magnetic
tape during, before and after mounting. It may cause it serious damage and incorrect working
of the controller. Please clean the surface of the tape from time to time with sift brush.
Please do not hit senor or the tape. The sensor should be mounted in that way thus text
SCALE SLIDE is faced on the magnetic tape side. The sensor and the tape should be mounted
in a such way that during feeding sensor “is above” the tape in all range. Please notice the
stability of the tape and the sensor during normal operating.

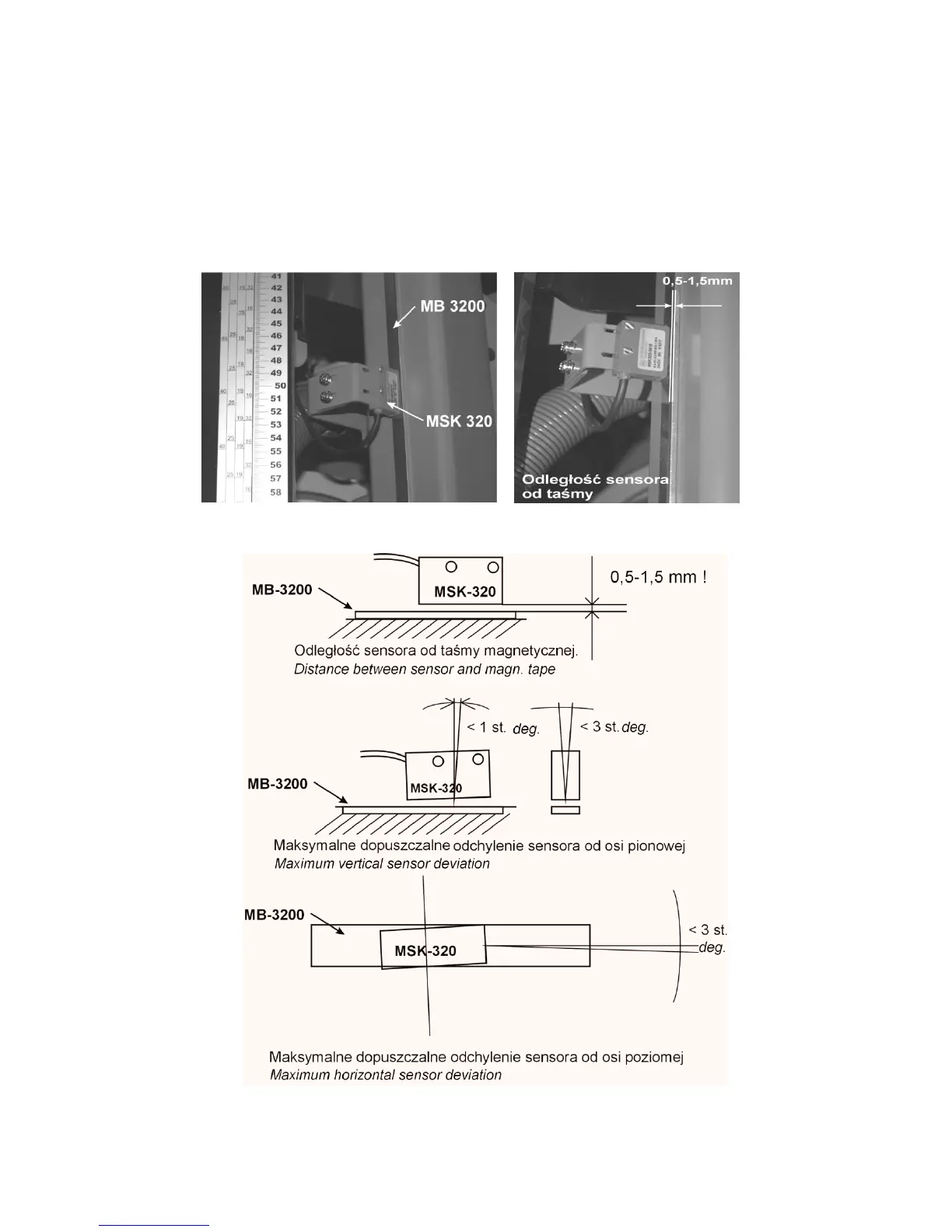

Figure 4 Sensor and magnetic tape mounting example

Selbit ANP-05 Specifications

General

Brand	Selbit
Model	ANP-05
Category	Controller
Language	English
