TEC Series v 3.2X
Page 7

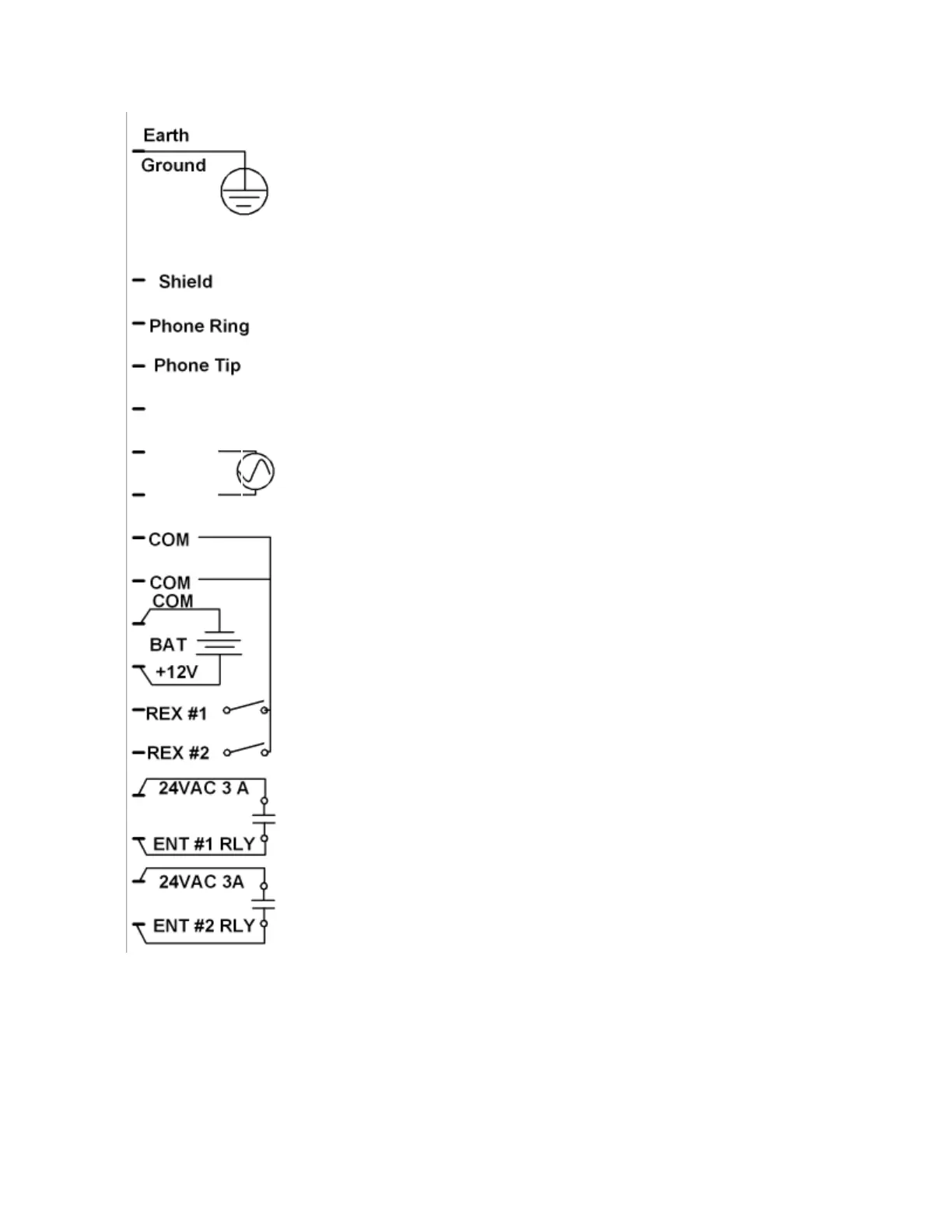

TERMINAL BARRIER STRIP CONNECTIONS
USE 16 GA. OR LARGER
TEC UNIT MUST BE GROUNDED
SES SUPPLIED TRANSFORMER 16 GA. TO 50 FT.
SES SUPPLIED TRANSFORMER 16 GA. TO 50 FT.
ENTRANCE #1 N.O.
or (Jumper 201-1&2)
ENTRANCE #1 N.C.
COMMON TO BATTERY AND REX INPUTS
ENTRANCE #2 N.O.
or (Jumper 202-1&2)
ENTRANCE #2 N.C.
FOR ALL SHIELDS
Entrance 1 and 2 Relays can be reconfigured to Normally Closed
Contacts. See page 8 for details on jumper changes.
BACKUP BATTERY + (POSITIVE)
INSTALLATION INSTRUCTIONS
TELEPHONE LINE CONNECTS HERE
TELEPHONE LINE CONNECTS HERE
N.O. REQUEST TO EXIT #1
N.O. REQUEST TO EXIT #2
COMMON TO BATTERY AND REX INPUTS
COMMON TO BATTERY AND REX INPUTS
Not Used
16.5 VAC
20 VA
To Next Page
