Select Engineered Systems TEC Series - Jumper Settings and Audio Adjustments

TEC Series v 3.2X
Page 8
RESET
ALWAYS ON
2RDR=OFF / 4RDR=ON
SPKR ENABLE
PROGRAM ENABLE
CARD DIAG.
TecVision ENABLE
ALWAYS OFF
FACTORY
SETTINGS
DO NOT
CHANGE

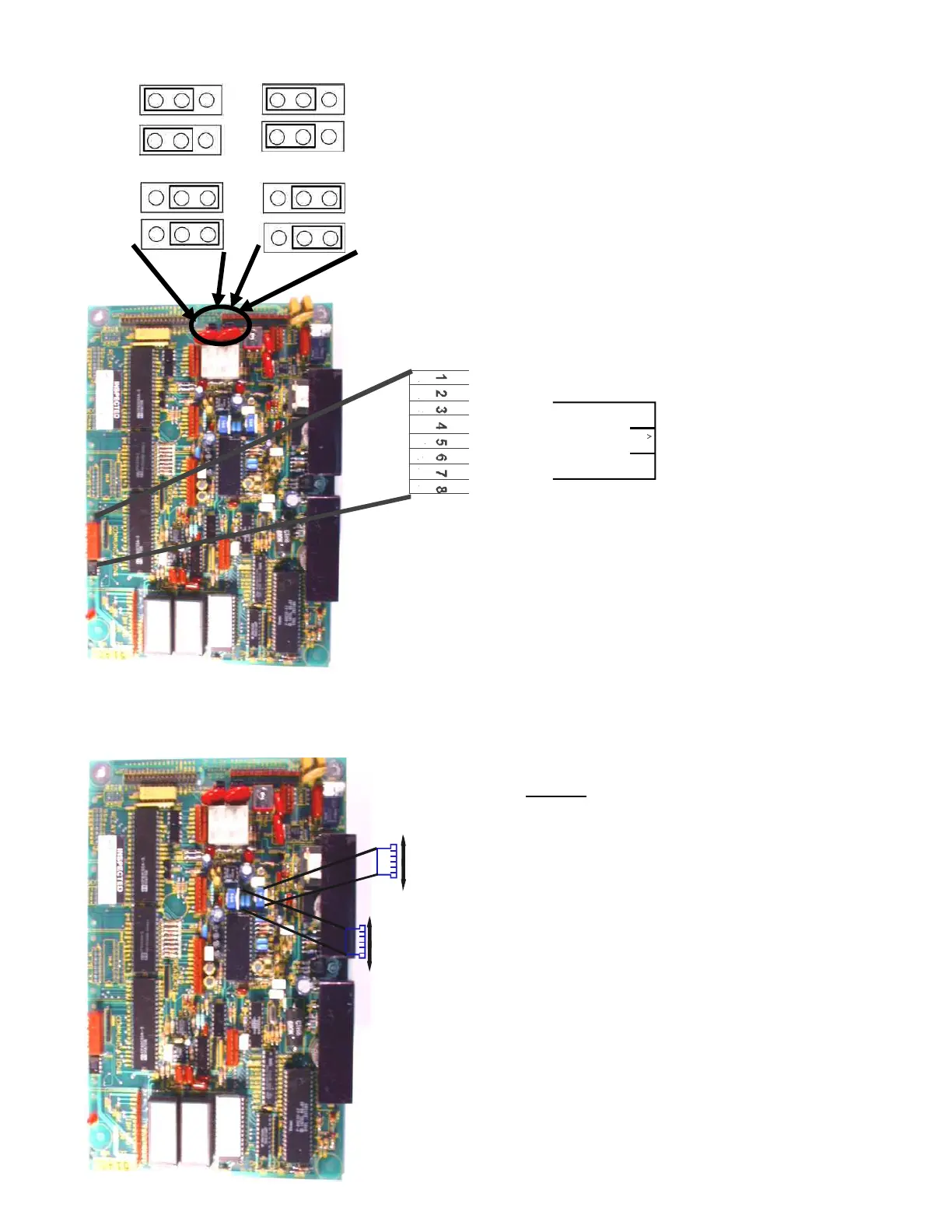

DIP SWITCH (SW1) SELECTION DESCRIPTIONS
— PROGRAM ENABLE
— SPKER ENABLE
— ALWAYS OFF
— ALWAYS OFF
— CARD DIAG.
— 2 RDR-OFF/ 4RDR-ON
— ALWAYS ON
— RESET
SPEAKER AND MICROPHONE ADJUSTMENTS
MORE
LESS
LESS
MIKE
SENS
SPEAKER
VOLUME
MORE
INSTALLATION.
Entrance 1
Shown N/O Move both
jumpers for each to
make N/O
Shown N/C Move both
jumpers for each relay
to make N/C
Entrance 2
Relay Jumper Selections
(J201-1&2 for Entrance 1)
(J202-1&2 for Entrance 2)
J201 1&2 J202 1&2
NOTE:
MIKE SENSITIVITY AND
SPEAKER VOLUME
INTERACT WITH EACH
OTHER. IMPROPER
ADJUSTMENT WILL
ADVERSELY AFFECT
PERFORMANCE AND/OR
OPERATION.
