TEC Series v 3.2X
Page 57
4.2.3 SYSTEM PARAMETERS
The System Parameters menu comes
with factory defaults that should be sufficient for
most installations. These default values are
shown on Pg. 51 and 52. Some functions work
with options that may not be present on your
TEC. For example, selection 2 Alarm Time is
not valid unless the optional alarm control relay
(OPTK3R) has been purchased. To get the
menu at left, press "3" from the main menu.
Alarm time is the time in seconds that the optional alarm relay control (OPTK3R) is energized.
To change the alarm time from the factory default of 10 seconds, press "2" from the System
Parameters menu to get this sub-menu. Key in the desired number (must be 2 digits) and press
"Enter" key. This will return you to the System Parameters menu.
CODE LENGTH
Code length is the number of digits from 1 to 6 entered on the keypad to dial a phone from the
TEC. To change the code length from the factory default of 3 digits, press "3" from the System
Parameters menu to get this sub-menu. Key in the desired number from 1 - 6 and press "Enter" key.
This will return you to the System Parameters menu.
TALK TIME
Talk Time is the time in minutes from 1 - 99 minutes that the TEC remains connected after dial
out. In areas of the country where rate usage is a concern, the factory default is 1 minute. For other
applications, the talk time can be adjusted upward by pressing "1" from the System Parameters menu
to get this sub-menu. Key in the desired number (must be 2 digits) and press "Enter" key. This will
return you to the System Parameters menu.
PIN LENGTH
PIN length is the number of digits from 0 to 6, entered from the keypad to enter a PIN code
from the TEC. To change the PIN length from the factory default of 4 digits, press "4" from the System
Parameters menu to get this sub-menu. Key in the desired number from 0 - 6.
SELECTING PIN LENGTH = "0" DISABLES THE PIN FUNCTION. Press "Enter" key to return to the
System Parameters menu.
BACK BEEP
Back Beep is a background tone that will "beep" every 10 seconds when enabled. This allows
a called party to determine if someone called from a TEC. To enable the back beep from the factory
default of 0, press "5" from the System Parameters menu to get this sub-menu. Press "1" to enable
Back Beep, and press "Enter" key. This will return you to the System Parameters menu.
Tone dial selects whether the TEC dials out with Touch-Tones™, or uses pulses, like rotary
dial phones. In areas of the country where Touch-Tone™ is not available, tone dial may be disabled.
To disable the Tone Dial from the factory default of 1, press "6" from the System Parameters menu to
get this sub-menu. Press "0" to disable Tone Dial, and press "Enter" key. This will return you to the
System Parameters menu.
TONE DIAL
ALARM TIME

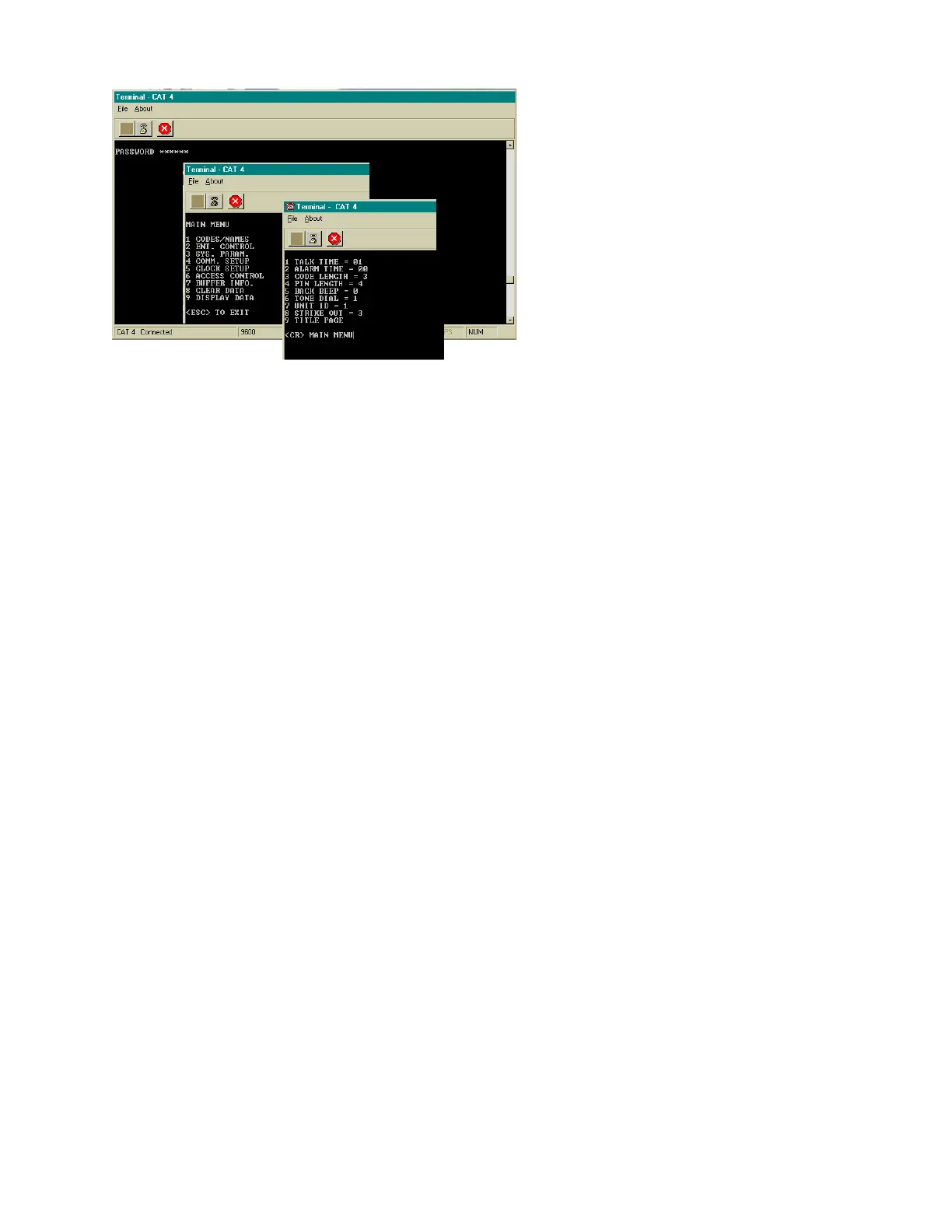

(CAT Shown. TEC is similar.)
