ENGLISH

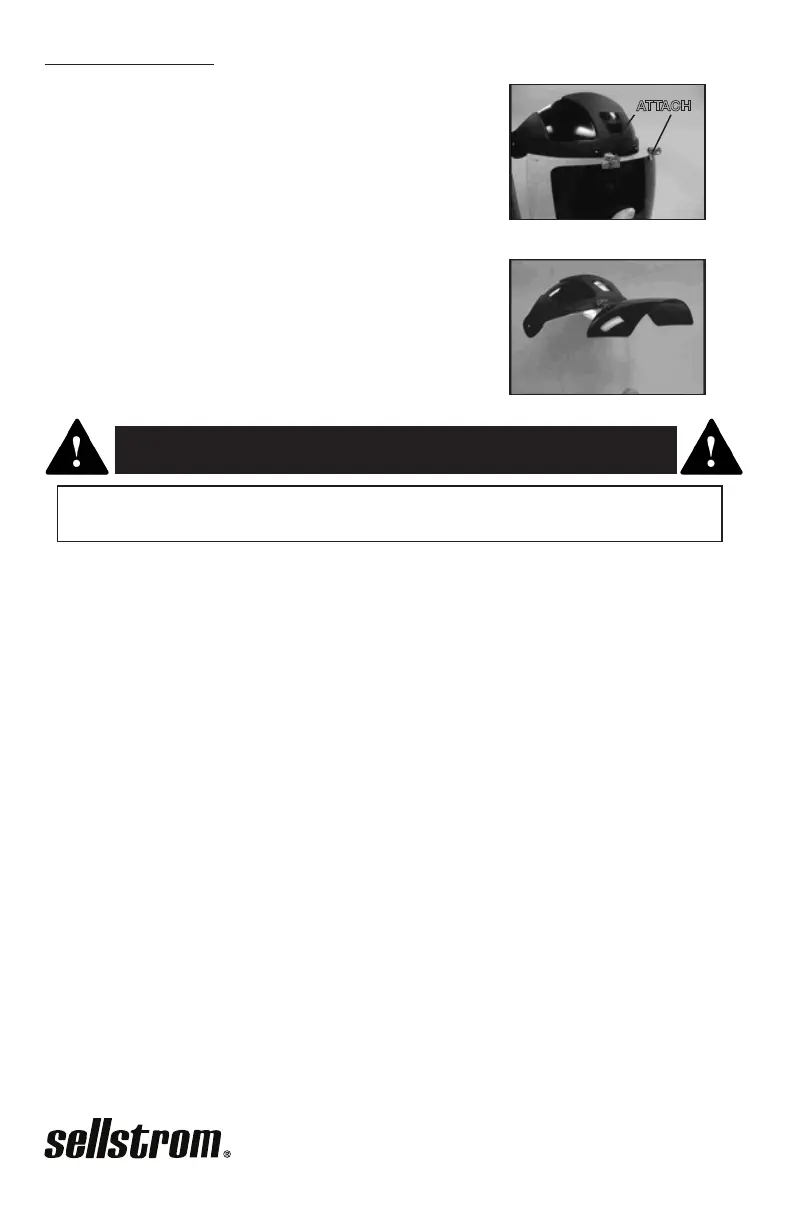

Flip Front Assembly
1. The Window must already be attached to the Crown before
proceeding to assemble the Flip Front. Please make sure the
Window is installed properly before continuing.
2. Insert the two screws through the interior holes of the Window
and Crown.
3. Place the Flip Front onto the exterior of the Crown, matching the
holes of the Flip Front to the protruding screws from the interior.
4. Tighten the screws using a Phillips-head screwdriver until secure.
Do NOT over-tighten!
5. Check to assure the Flip Front operates smoothly without
interference.
For your own protection, read these instructions before using. It is the responsibility of the user to
understand the limitations, proper use, care and maintenance of the product. Failure to read these
instructions could result in serious injury, including blindness.
1. Check with supervisor or employer before using to determine whether this product is suitable for your job
and in your area.
2. Impact resistant shields are NOT unbreakable and DO NOT provide extraordinary protection against ying
particles, splash, spray, and spatter. They will not provide protection against severe impact hazard, such
as, but not limited to, fragmenting grinding wheels, high speed projectiles, explosive devices or molten
metal.
3. Pitted or scratched plates reduce vision clarity, SEVERELY REDUCE IMPACT PROTECTION, and should
be replaced immediately to prevent injury.
4. This product is NOT suitable for protection against x-rays, gamma rays, high energy particulate radiation,
lasers, and/or masers.
5. Inspect the faceshield Window frequently and immediately replace worn, pitted, or scratched Window.
6. If used with CLEAR Window, this Window will NOT provide any protection against ultraviolet or infrared
radiation.
7. If used with SHADED Window, DO NOT USE FOR ARC WELDING!
8. This product does NOT conform to ANSI Z87.1 for welding helmets.
9. Flip Front CANNOT be used with shaded Window. The only congurations allowed are:
• Clear Window with Shade 5 Flip Front
• Clear Window with Shade 6 Flip Front
• Clear Window with Shade 8 Flip Front
• Clear Window with NO Flip Front
• Shade 3 Window with NO Flip Front
• Shade 5 Window with NO Flip Front
10. A Window must be used at all times. Do NOT use a Flip Front without a Window.
11. Product needs to be used only with appropriate Window and Flip Front.
12. When using a conguration with no Flip Front, use Crown without holes.
INST-DP4 rev. 7
