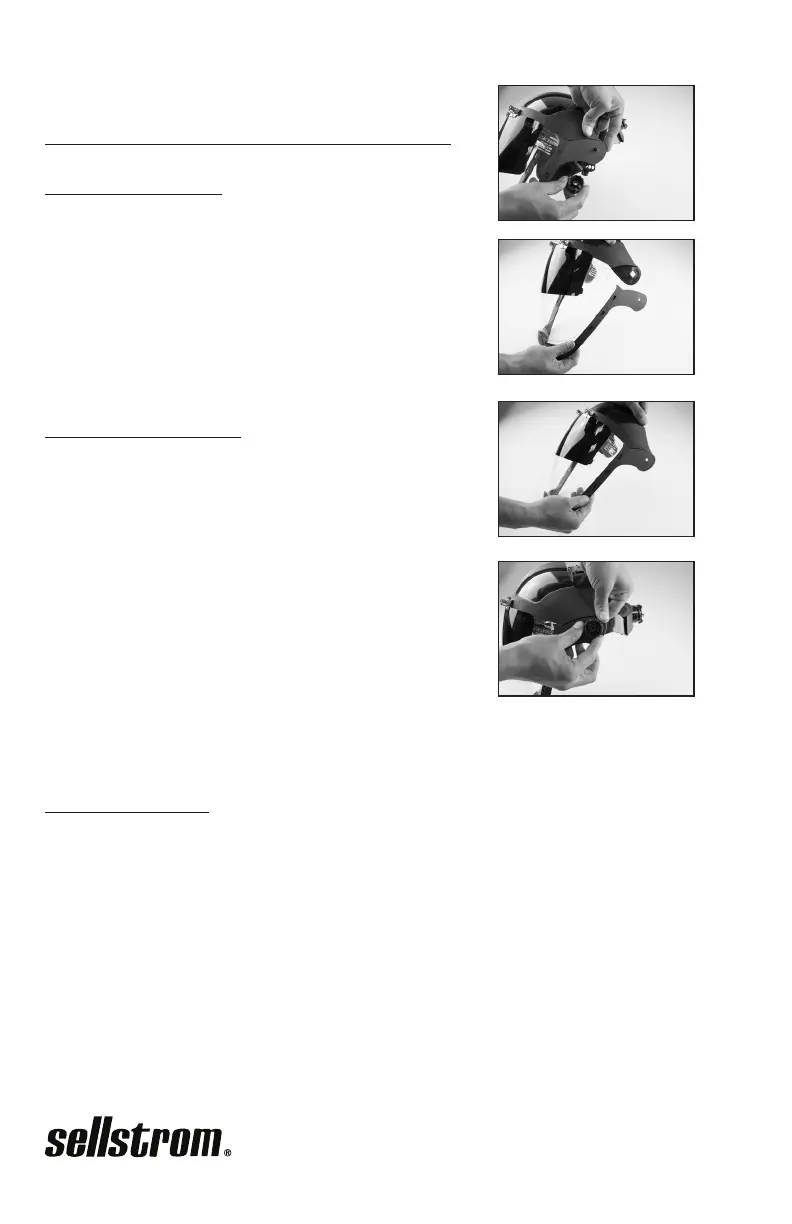

Chin Guard Removal and Replacement
Chin Guard Removal
1. Remove the head gear knobs on both sides of the face shield.
2. Pull the chin guard outwards from the window.
3. Install the head gear knobs on both sides of the face shield.
ENGLISH
Chin Guard Installation
1. Remove the head gear knobs on both sides of the face shield.
2. Assemble the chin guard in to the window; push in on the chin
guard to insert the tabs on to the window. All the chin guard
tabs should be secured on to the window.
3. Align the holes located on each side of the chin guard with the
face shield crown holes. Insert the head gear studs, tighten the
knobs securely.
Replacement Parts
S32000 – Replacement crown and headgear.
S32001 – Replacement crown with holes for ip up windows and head gear
S32011 – Replacement headgear
S32100 – Clear Anti Fog Window
S32130 – Shade 3 IR Window
S32150 – Shade 5 IR Window
S32155 – Shade 5 IR Visor
S32166 – Shade 6 IR Visor
S32166B – Shade 6 IR Cobalt Blue Visor
S32188 – Shade 8 IR Visor
S32200 – Replacement Chin Guard
