SemaConnect 6 Series - Safety and Compliance

EV Charging Station Installation Guide
3 Rev.201901

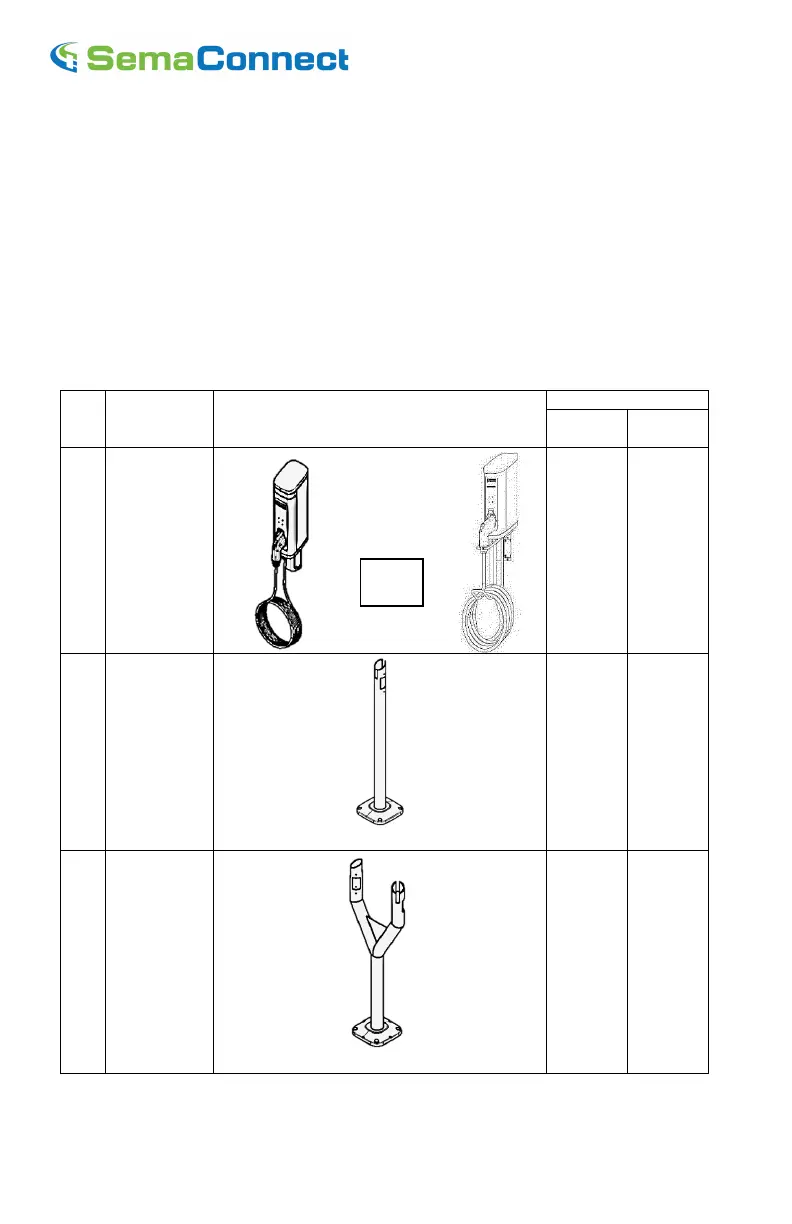

SemaConnect Pedestal Mount Parts
Tools Required
Electrical Tools:- Wire stipper, Wire nut, Insulation tape
Mechanical Tools:- Spirit level
Anchor plate J bolt - 3/8” inch wrench
Driver Set - For Pedestal levelling - key size 3 (metric)
(Allen) Pedestal Mounting - key size 10 (metric)
head unit mounting screw - Key size 3 (metric)
cable rack - Key size 2 (metric)
access panel - Key size 2.5 (metric)
Sl
no
Description
Quantity
Single
Pedestal
Dual
Pedestal
1
Head Unit
with J1772
Cable (20ft)
1
2
2
Single
Pedestal
1
0
3
Dual
Pedestal
0
1
OR
