14

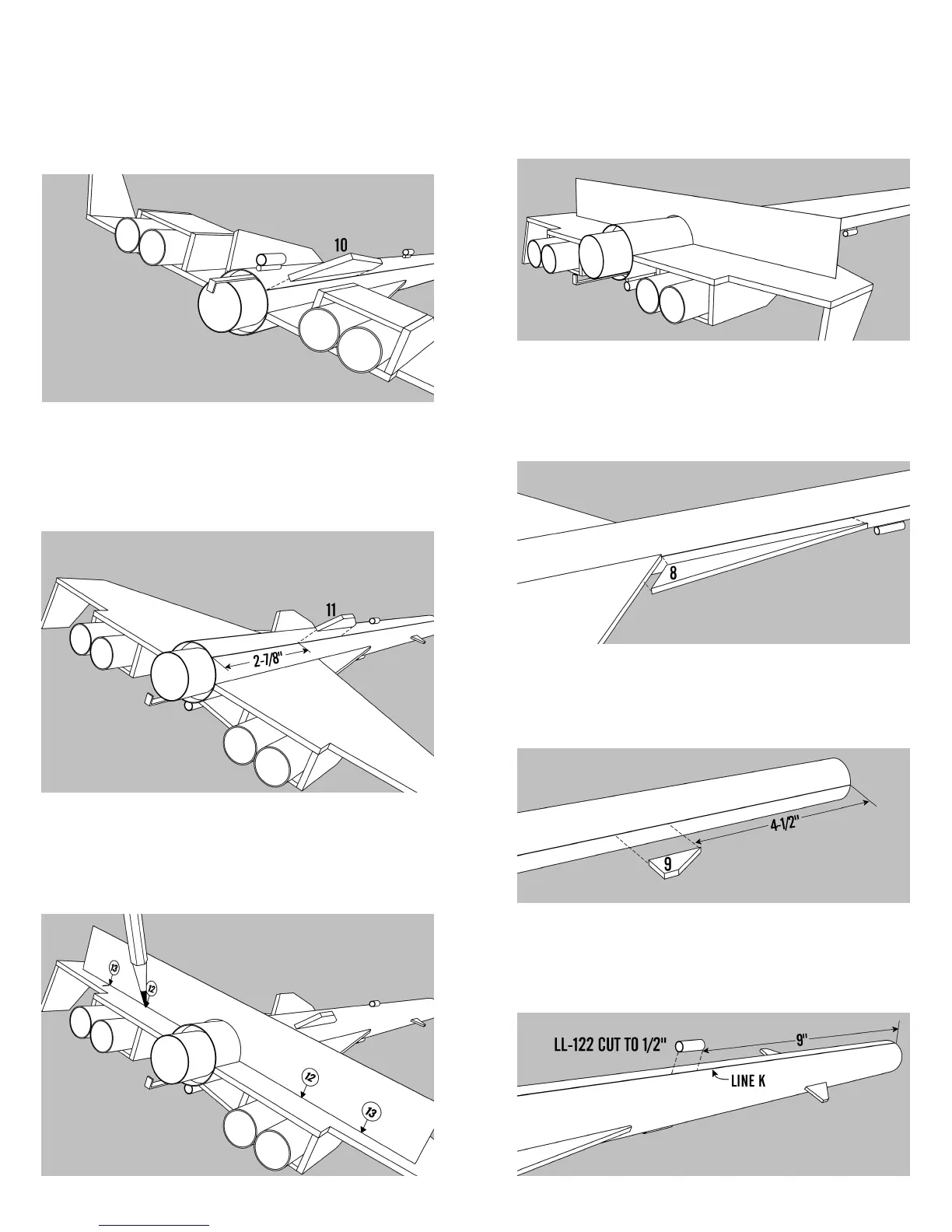

28. Apply glue to the root edge of one of the
ventral fins (10) and attach it to Line J and even
with the end of the main body tube. It should be
perpendicular to the body tube. Repeat with the
other ventral fin.
29. Apply glue to the root edge of one of the
glider supports (11) and attach it to Line L and 2-
7/8” from the bottom end of the main body tube. It
should be perpendicular to the body tube. Repeat
with the other glider support.
30. Using the Booster Alignment Template,
place a mark at the four arrows labeled 12 and 13
on the leading and trailing edge of each of the main
fins. Using a ruler, connect the lines to use as at-
tachment guides.
11
24. While the glue is setting on the wings, cut
out the Booster Wing Alignment Template from the
pattern sheet. Use it as a guide to check for proper
wing alignment.
26. Mark the booster body tube 4-1/2” from
the top on Line G on both sides. Attach the canards
on Line G with the top edge on the mark. Repeat for
the other canard.
25. Attach one of the wing fairings (8) to the
leading edge of one of the wing assemblies and
aligned on Line G. Round the leading edge of the
main wing and fairing. Repeat with the other wing
fairing.
27. Cut a piece of the launch lug (LL-122) to
1/2” long. Attach it to the top of the main body tube
9” from the top end along Line K. This launch lug
does not need the wood dowel.
