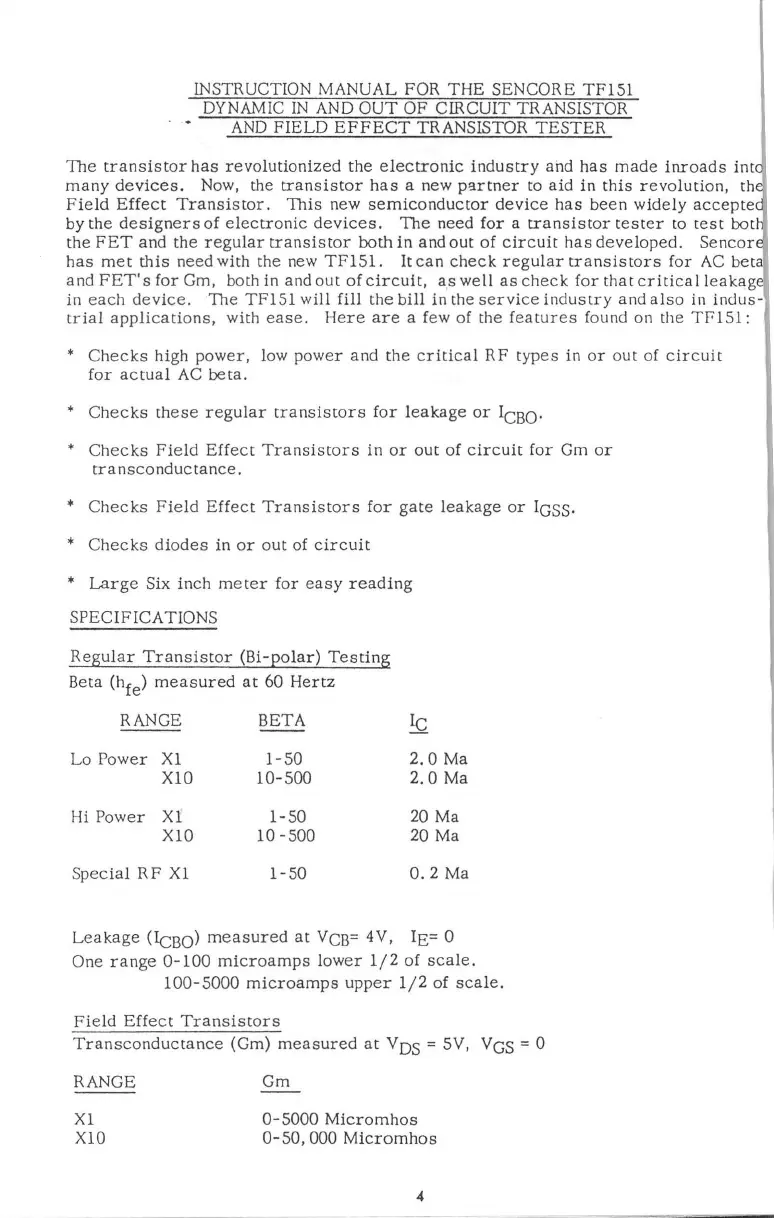

INSTRUCTION MANUAL FOR THE SENCORE TFlSl
DYNAMIC IN AND OUT OF CIRCUIT TRANSISTOR
AND FIELD EFFECT TRANSISTOR TESTER
The transistor has revolutionized the electronic industry and has made inroads int
many devices. Now, the transistor has a new p'lrtner to aid in this revolution, th
Field Effect Transistor. This new semiconductor device has been widely accepted
by the designers of electronic devices. The need for a transistor tester to test both
the
FET and the regular transistor both in and out of circuit has developed. Sencor
has met this need with the new TF15l. It can check regular transis tors for AC beta
and
FET' s for Gm , both in and out of Circuit, as well as check for tha t criticalleakag
in each device. The TF151 will fill the bill in the service industry and also in indus-
trial applications, with ease. Here are a few of the features found on the Trl5l:
* Checks high power, low power and the critical RF types in or out of circuit
for actual AC beta.
* Checks these regular transistors for leakage or ICBO.
* Checks Field Effect Transistors in or out of circuit for Gm or
transconductance.
* Checks Field Effect Transistors for gate leakage or IGSS.
* Checks diodes in or out of circuit
* Large Six inch meter for easy reading
SPECIFICATIONS
Regular Transistor (Bi-polar) Testing
Beta (h
fe
) measured at 60 Hertz
RANGE BETA
Lo
Power Xl 1-50
XIO
10-500
Hi Power Xl
1-50
XlO
10
-500
Special RF Xl 1-50
IC
2.0 Ma
2.0 Ma
20 Ma
20 Ma
0.2 Ma
Leakage (leBO) measured at VCB= 4V, IE= 0
One
range 0-100 microamps lower 1/2 of scale.
100-5000 microamps upper 1/2 of scale.
Field Effect Transistors
Transconductance (Gm) measured at VOS = 5V, VGS = 0
RANGE
Xl
XIO
Gm
0-5000 Micromhos
0-50,000 Micromhos
