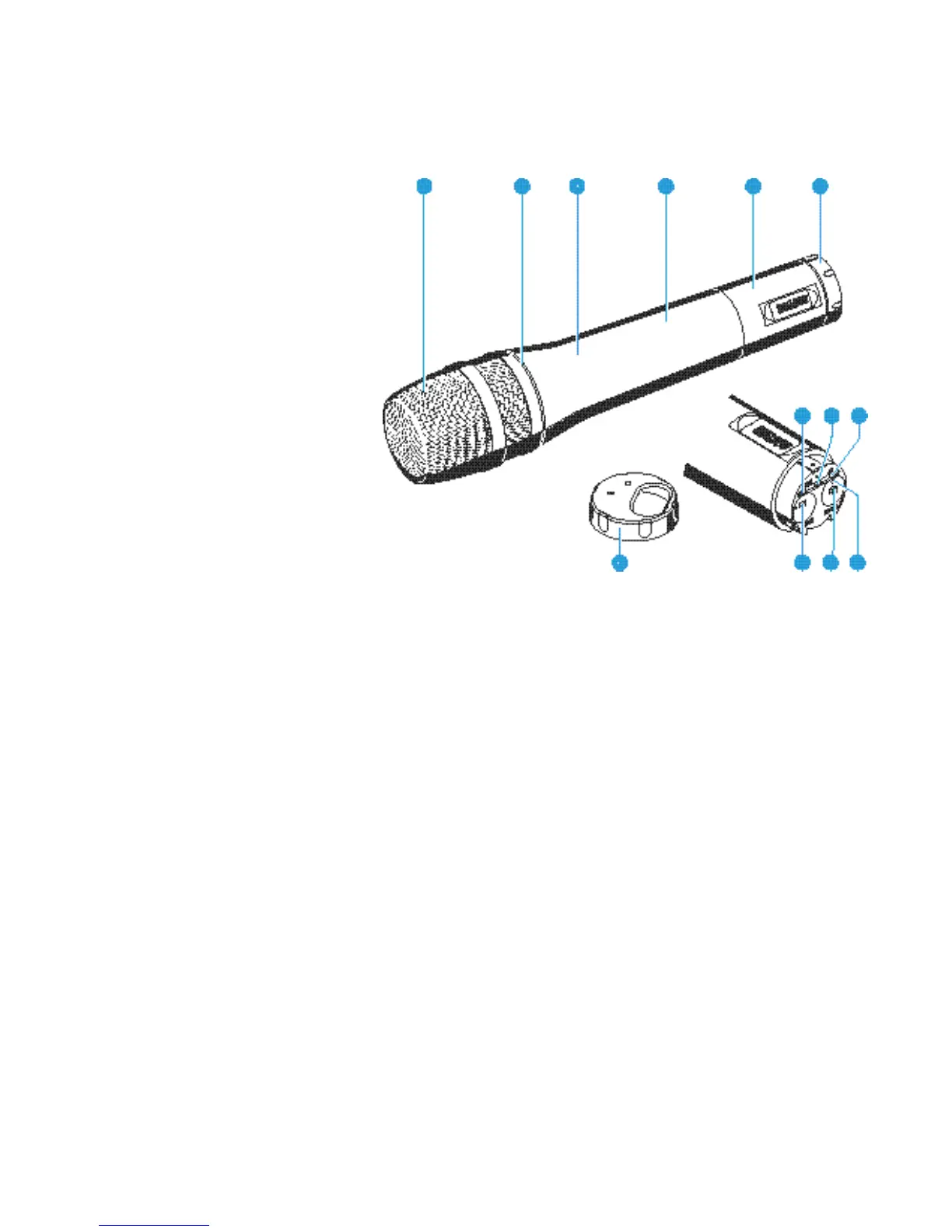

SKM 100 hand-held transmitter
Sound inlet basket
Colour-coded identification ring for microphone modules
green: MD 835 microphone module
(cardioid dynamic microphone)
blue: MD 845 microphone module
(super-cardioid dynamic microphone)
red: ME 865 microphone module
(super-cardioid condenser microphone)
Body of hand-held transmitter
Battery compartment
Display section
Turnable protective cap for operating controls (shown removed)
The following operating controls become accessible in turn by turning
the protective cap :
SET button
button (DOWN)
button (UP)
MUTE switch
ON/OFF button
Red LED for operation and battery status indication
