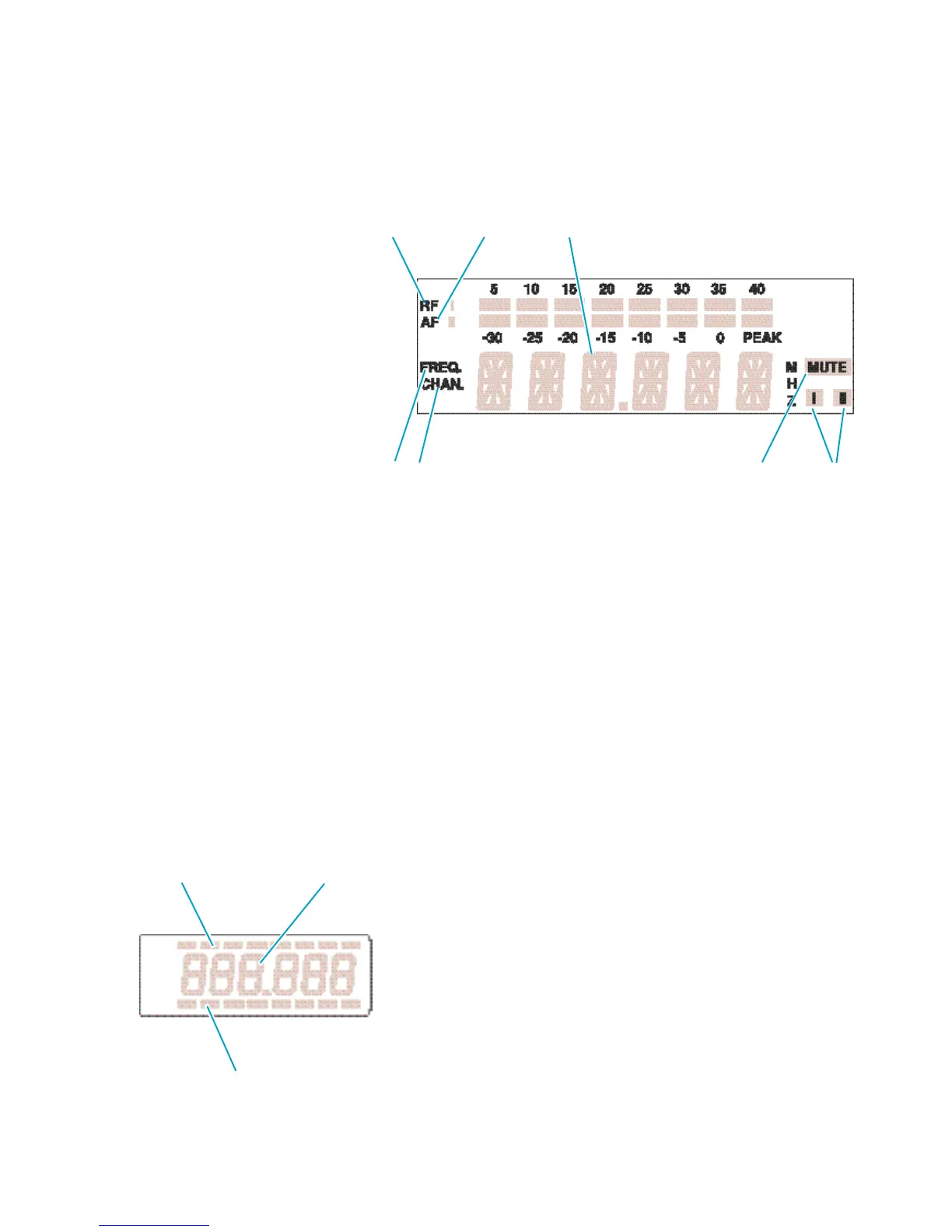

LC display panel
EM 100 receiver
8-step level display for incoming RF signal
8-step level display for incoming AF signal, with “PEAK” warning
6-segment alphanumeric main display
Display for the “Frequency” menu. (This display can be the
receiver’s standard display which always appears after switch-on.)
Display for thechannel number “Channel”. (This display can be the
receiver’s standard display which always appears after switch-on.)
Squelch active (“MUTE”)
Diversity display (antenna I or antenna II active)
( “11 Diversity reception”)
EK 100 receiver and SK 100, SKP 100, SKM 100 transmitters
8-step level display for incoming AF signal (EK 100 only)
Alphanumeric main display
8-step level display for incoming RF signal (EK 100 only)
Note:
If the operating steps for adjusting the settings via the menu are similar for
all devices, only the main display of the EM 100 receiver is depicted.
