Sennheiser HMEC 26-2 - Cable -RP-2 Pinout; Cable -DP-2 Pinout; Cables -KP, -KP-2, -B-K-2, -B-KP-2, -BV-K-2 Pinout

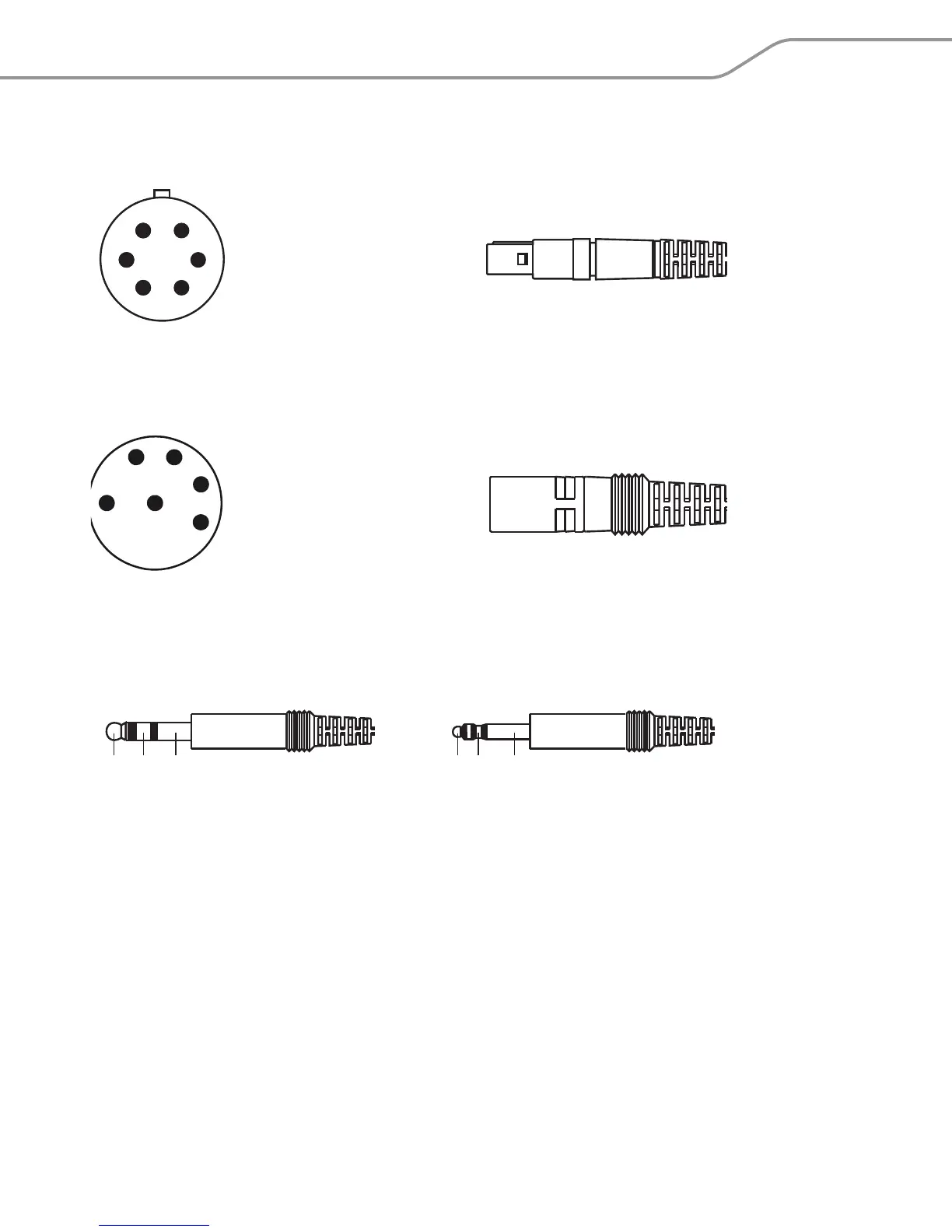

Connector assignment
HMEC 26-2 | 29
Cable -RP-2
Cable -DP-2
Cable -KP, -KP-2, -B-K-2, -B-KP-2, -BV-K-2
Cable -KP / -KP-2 / -B-KP-2
1Audio Hi 1NoiseGard™ (DC+)
2 not assigned 2 Microphone Hi
3 Audio Lo / DC– 3 Microphone Lo
Cable -B-K-2
1 Audio Hi 1 not assigned
2 not assigned 2 Microphone Hi
3 Audio Lo 3 Microphone Lo
Cable -BV-K-2
1 Audio Hi left 1 not assigned
2Audio Hi right 2Microphone Hi
3 Audio Lo 3 Microphone Lo
Solder side
1 NoiseGard
TM
(DC+)
2 Audio Lo / DC–
3 Audio Hi left
4 Audio Hi right
5 Microphone Hi
6 Microphone Lo
1
3
2
6
4
5
Solder side
1
NoiseGard
TM
(DC+)
2
DC–
3
Audio Lo
4
Audio Hi
5
Microphone Hi
6
Microphone Lo
1
3
2
6
4
5
¼" (6.3 mm) jack plug PJ-068 equivalent
12 3
12 3
