Installing the LM100 gateway
Senstar LM100 Product Guide Page 41

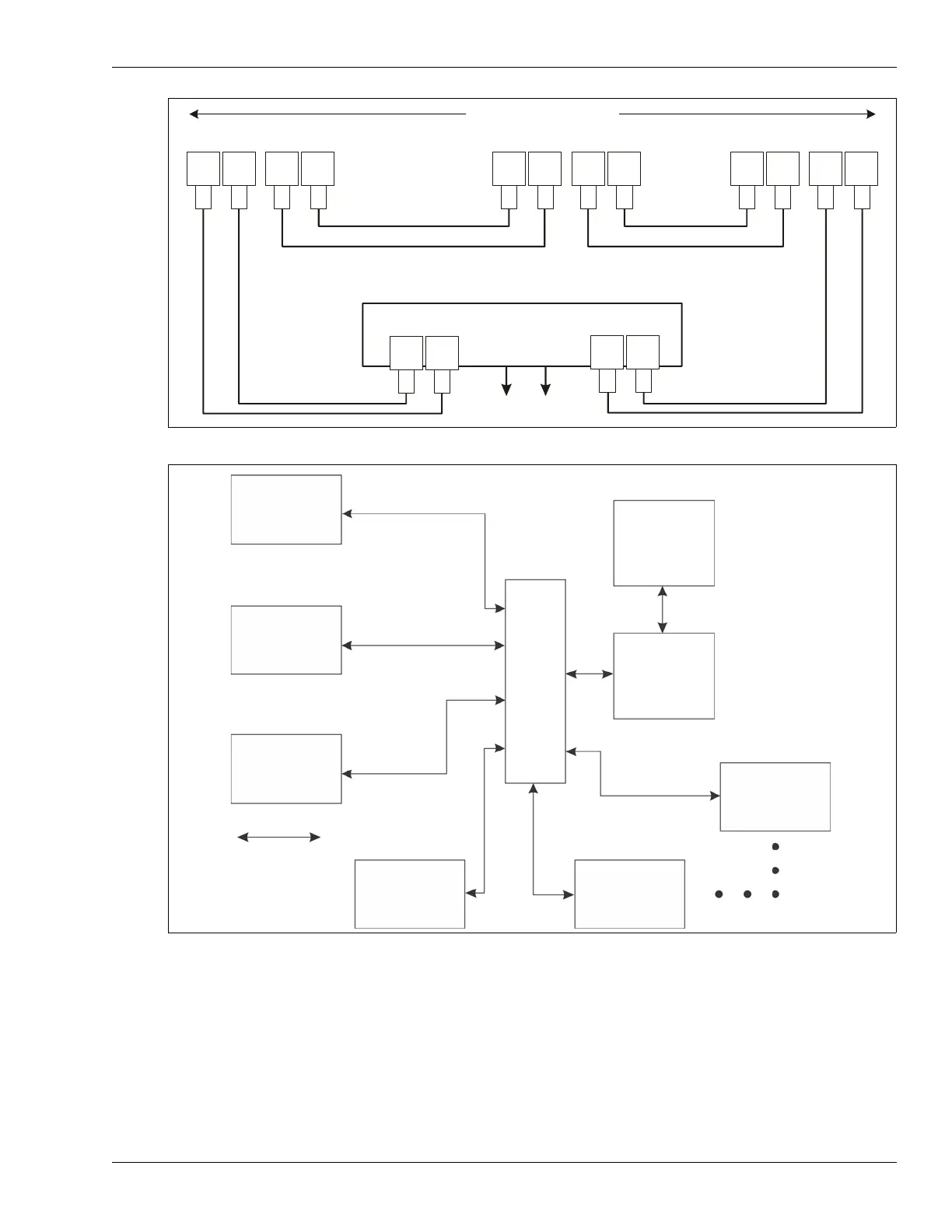

Figure 44: Silver Network fiber optic wiring diagram
Figure 45: Silver Network Ethernet wiring diagram
TXB RXBTXA RXA
TXB
RXB
TXA
RXA
TXB
RXB
TXA
RXA
TXB
RXB
TXA
RXA
maximum 60 devices
first device
second device
last device
Network Interface Unit
to Network Manager
maximum distance between devices
multi-mode fiber optic = 2.2 km (1.4 miles)
single-mode fiber optic = 10 km (6.2 miles)
maximum 60 devices
first device
second device
last device
Network
maximum distance
third device
fourth device
fifth device
Manager
computer
security
management
system
computer
between device
and PoE switch
100 m (328 ft.)
Category 5 Ethernet cable
class 3
PoE
switch
