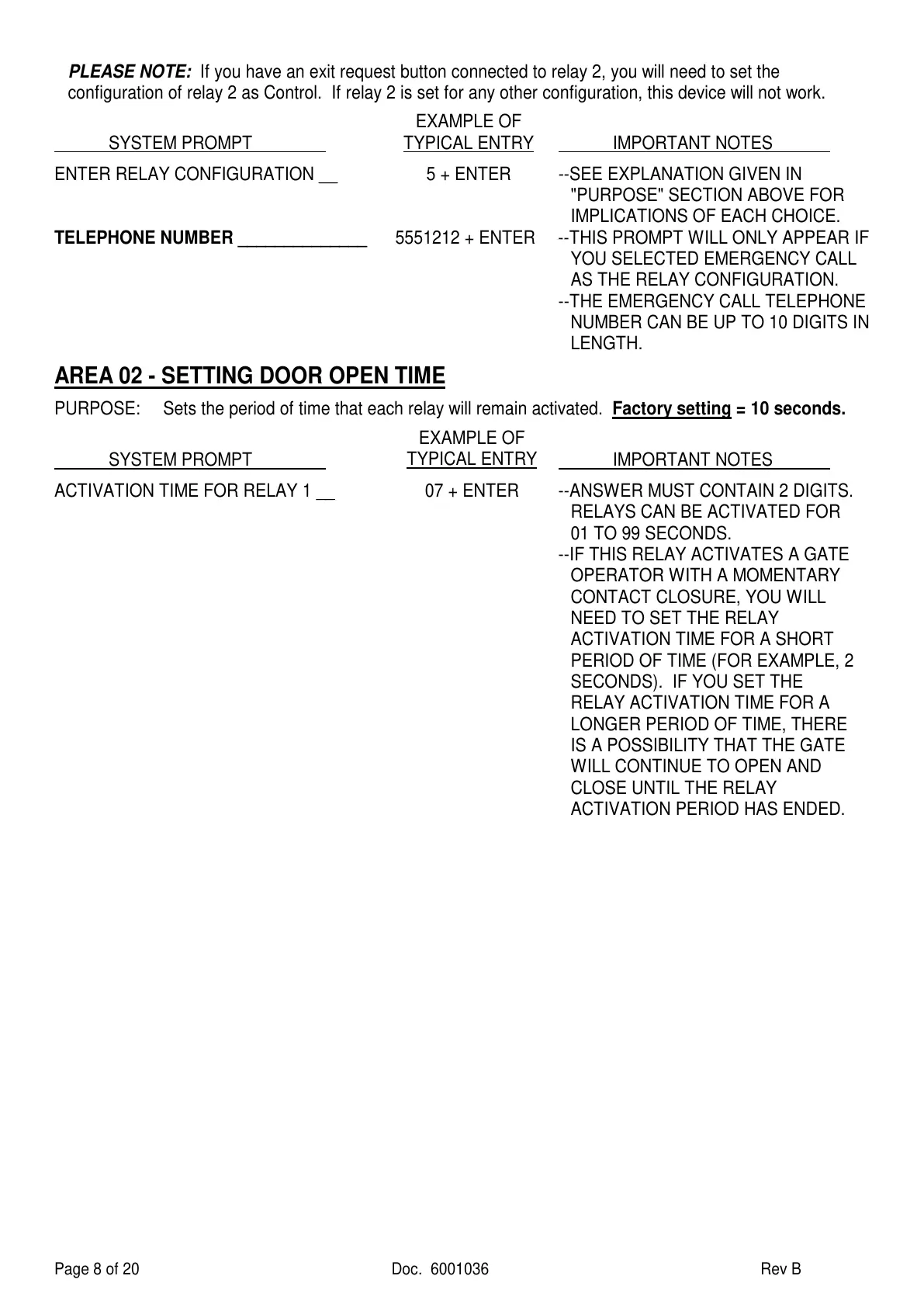

PLEASE NOTE: If you have an exit request button connected to relay 2, you will need to set the
configuration of relay 2 as Control. If relay 2 is set for any other configuration, this device will not work.
SYSTEM PROMPT
EXAMPLE OF
TYPICAL ENTRY
IMPORTANT NOTES
ENTER RELAY CONFIGURATION __ 5 + ENTER --SEE EXPLANATION GIVEN IN
"PURPOSE" SECTION ABOVE FOR
IMPLICATIONS OF EACH CHOICE.
TELEPHONE NUMBER ______________
5551212 + ENTER --THIS PROMPT WILL ONLY APPEAR IF
YOU SELECTED EMERGENCY CALL
AS THE RELAY CONFIGURATION.
--THE EMERGENCY CALL TELEPHONE
NUMBER CAN BE UP TO 10 DIGITS IN
LENGTH.
AREA 02 - SETTING DOOR OPEN TIME
PURPOSE: Sets the period of time that each relay will remain activated. Factory setting = 10 seconds.
SYSTEM PROMPT
EXAMPLE OF
TYPICAL ENTRY
IMPORTANT NOTES
ACTIVATION TIME FOR RELAY 1 __ 07 + ENTER --ANSWER MUST CONTAIN 2 DIGITS.
RELAYS CAN BE ACTIVATED FOR
01 TO 99 SECONDS.
--IF THIS RELAY ACTIVATES A GATE
OPERATOR WITH A MOMENTARY
CONTACT CLOSURE, YOU WILL
NEED TO SET THE RELAY
ACTIVATION TIME FOR A SHORT
PERIOD OF TIME (FOR EXAMPLE, 2
SECONDS). IF YOU SET THE
RELAY ACTIVATION TIME FOR A
LONGER PERIOD OF TIME, THERE
IS A POSSIBILITY THAT THE GATE
WILL CONTINUE TO OPEN AND
CLOSE UNTIL THE RELAY
ACTIVATION PERIOD HAS ENDED.
