clamping lever
The tractor side support de-
pends on the tractor itself.
In case the ADAM™ support is
not compatible with your trac-
tor, please contact your SEPPI
M. dealer.
2) Connect the gearbox by means of the
telescopic arm to the tractor side support,
acting on the clamping lever.
3) When raising and lowering the machine, the
gearbox must follow the movement as in the
following graph.
Check the movement limits of the
machine, trying the lowest posi-
tions and the highest positions
with all the possible positions of
the third hydraulic point.
The ADAM™ lever mechanism
must never reach the limit
switch, slip off or collide with
parts of the frame
A
A > 100 mm
It is recommended to use the original SEPPI M.
PTO shaft for each model. It is not required to
use PTO shafts with clutch or torque limiter if not
expressly indicated.
1) Adjust the length of the PTO shaft as needed,
first by measuring all possible lengths and then
moving the bottom lift and the hydraulic third
point (if applicable).

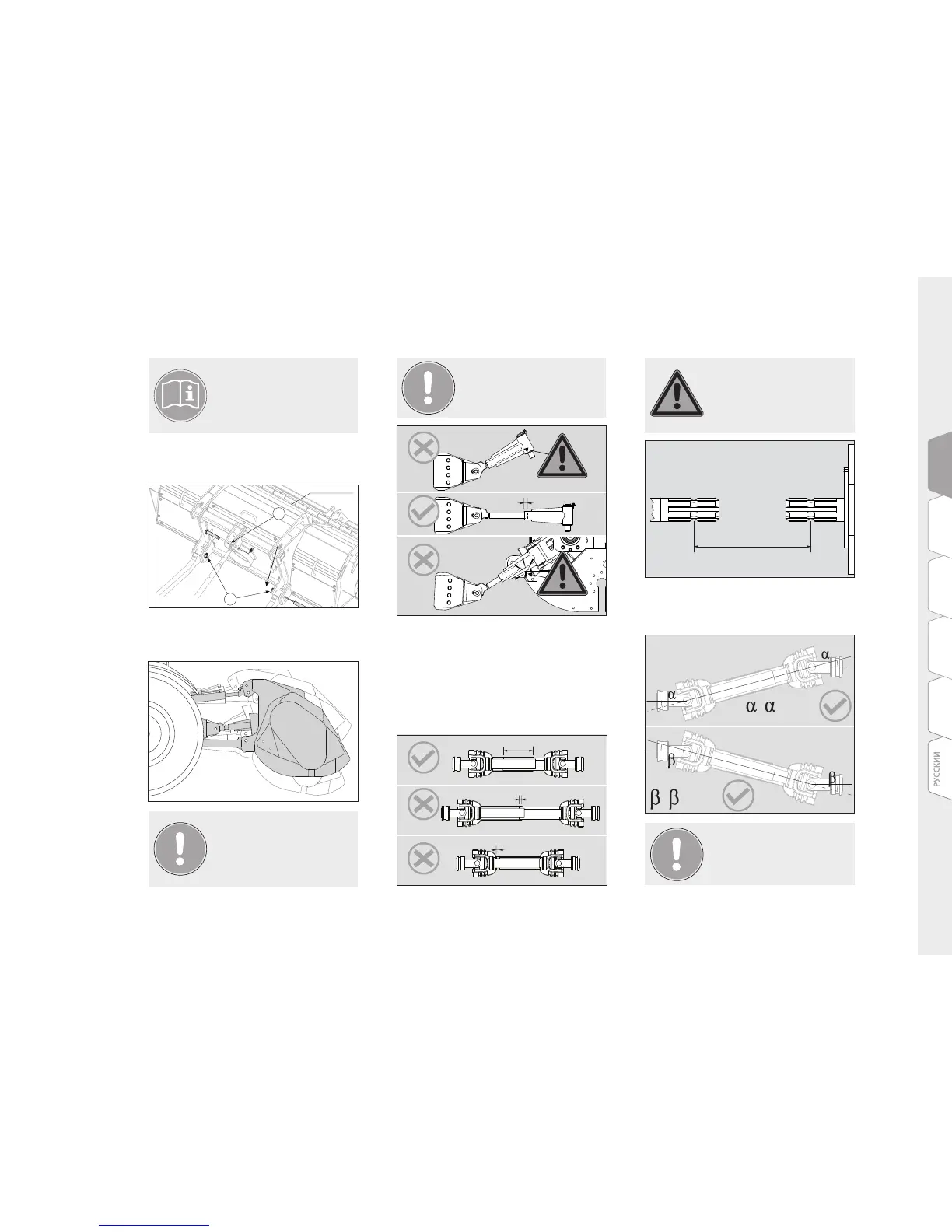

4.2.3 Applying the PTO shaft
A
B
A
A>10 cm
A<10 cm
B<1 cm
The PTO shaft must always
sufficiently overlap all posi-
tions and never be flush!
L max / min
2) Check that the PTO shaft works properly:
a. WITHOUT alignment system or WITH EVA align-
ment system
If the PTO shaft becomes too
short, it is recommended to
mount the ADAM™ system.
= >max15˚
= >max15˚
B
A
