DISPLAY / CONTROL SPECIFICATIONS
• 36 Volt Power Supply (350W)
• 48 Volt Power Supply (500W)
• Current Rated: 10mA
• Maximum Operating Current: 30mA
• Power O Leakage Current < 1uA
• Operating Current to Controller: 50mA
• Operating Temperature: -18º to 65ºC
• Storage Temperature: -30º to 80ºC

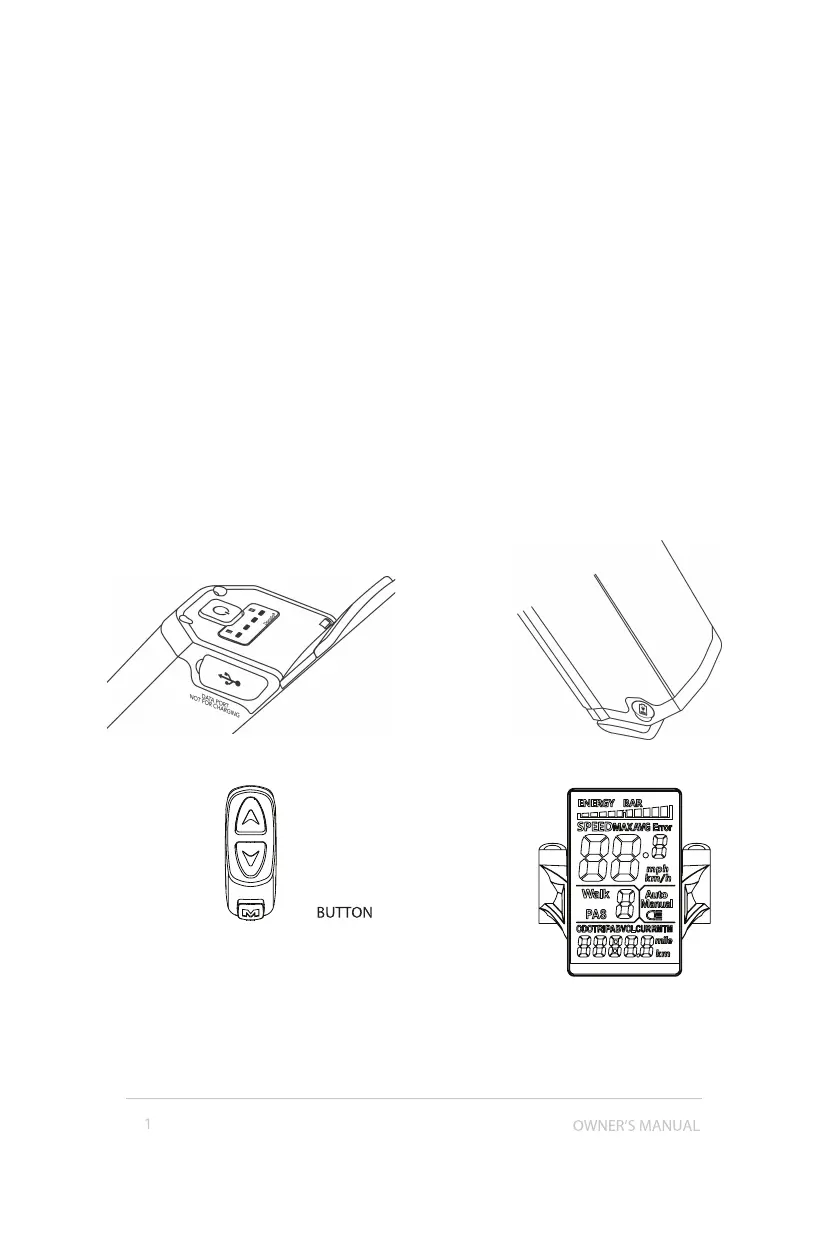

Figure 2
M
___
SERFAS E-BIKE
Figure 1
POWER SWITCH
____
Figure 3
CHARGING PORT
___
To Next Page
