DO NOT USE CHAIR UNTIL YOU HAVE FULLY READ THE INSTRUCTIONS

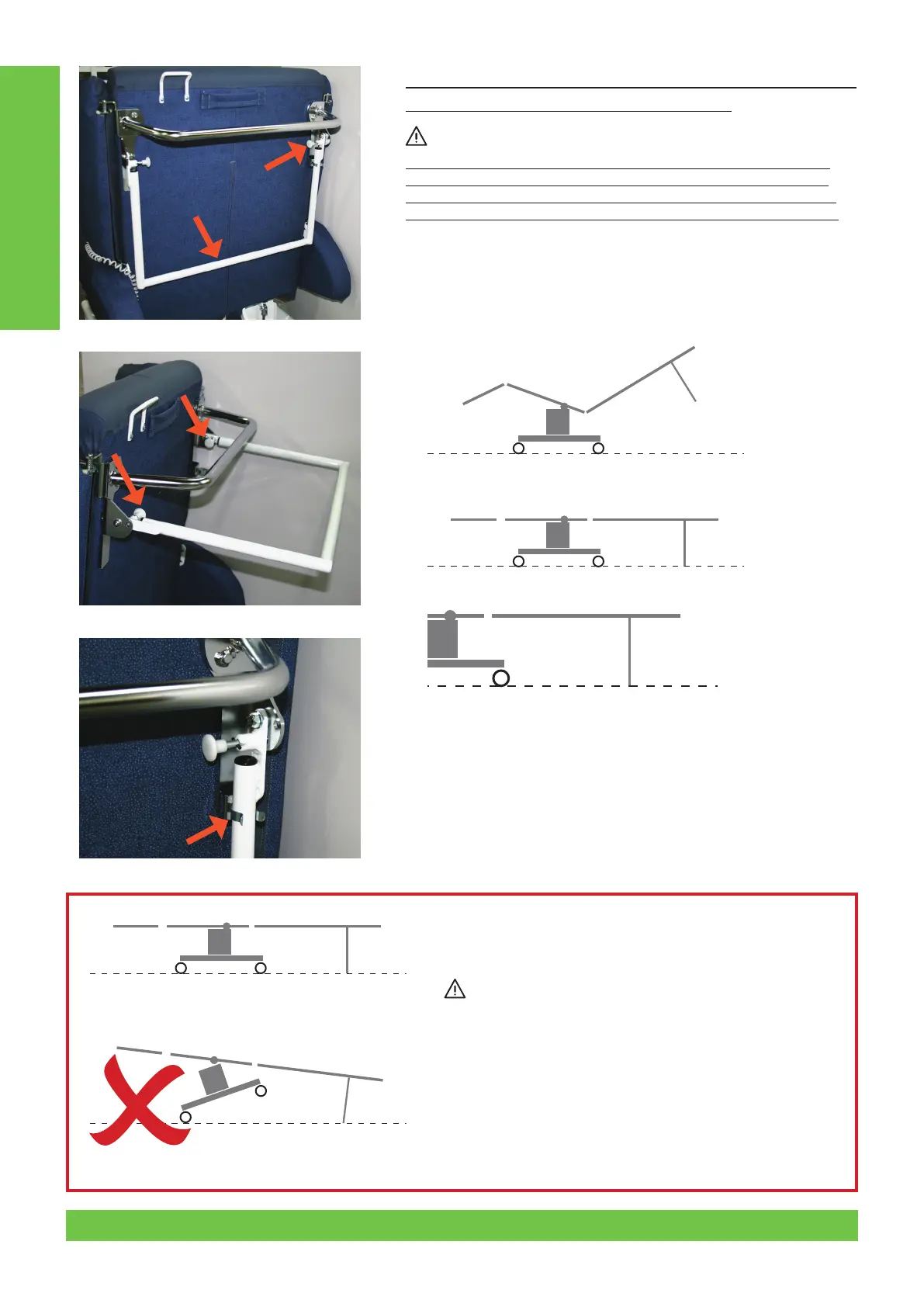

3.14 Lay Flat Support Bar Function – for backrest support when

performing procedures (if tted to your chair)

WARNING 1

Before using this function, make sure it is safe to do so. Make sure no

item (equipment, persons, etc) obstructs the path of any moving part

of the chair during this function. Warn attendees before actioning this

function. This item is NOT a push handle and is not to be used as such).

TO ENGAGE:

Lift / swing out the Support Bar at 14a.1 (see Figure 14a) until it is 90°

to the backrest. Make sure both locating Pins at 14a.2 are locked with

the Support Bar at 90° to the Backrest. Now you may perform ‘Auto Flat

Function’ (see Item 3.13).

TO RELEASE AND STORE:

Release Pins at 14b.1 (see Figure 14b) and lower Support Bar till it is

held by retaining Clip at 14c.1 (see Figure 14c). Make sure the locating

Pins are engaged ready for the next event.

For safety the chair should not be left in this position after procedure

is completed.

Raise backrest rst and restow. Check there is no damage done to the

CPR unit after use.

WARNING 2

When the chair is in, or close to complete LAYFLAT position

(when performing Function Item 3.13) the SEAT TILT, Item

3.2 MUST NOT BE ACTIVATED or Figure 14e could occur,

endangering persons or equipment.

Operating Instructions

Figure 14a

14a.1

14b.1

14c.1

14a.2

Figure 14b

Figure 14c

Figure 14d

Figure 14e
